1-38
Chapter 1 Before Operation

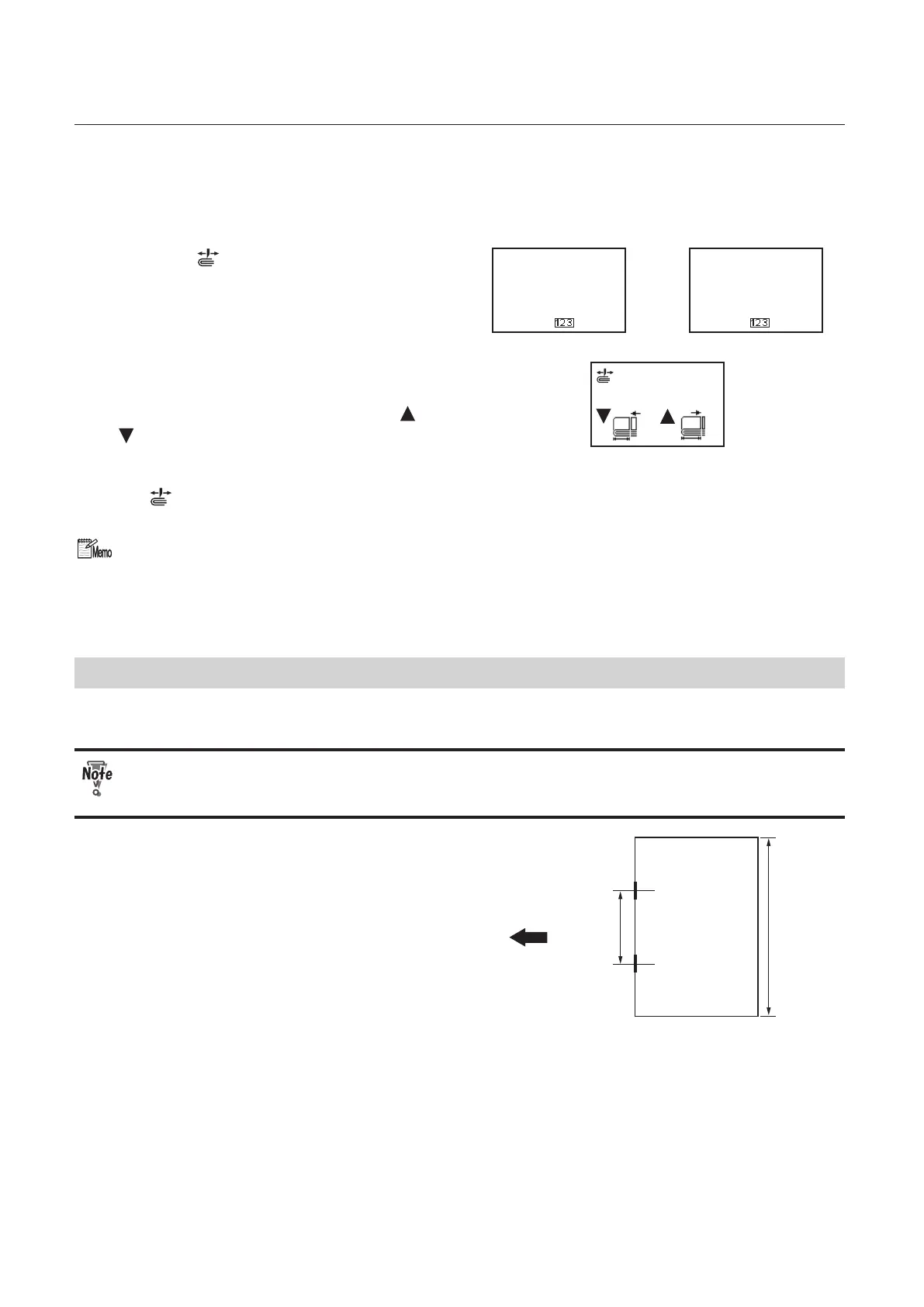

5-2-3. How to use the menu screen
The basic operation on the menu screen is as follows.
The following steps shows how to adjust a nished length as an example.
Ready
Trimming On
Fin Length
123.0
Processing
Trimming On
Fin Length
123.0
or
0 0
1
Press the key when the top screen is
displayed or [Ready] or [Processing] is
displayed as a machine status.
+0
Fin Length
Value
The screen for adjusting a nished length will
be displayed.
2
Adjust a finished length using the or
key.
3
When the adjustment is complete, press
the key.
The screen returns to the top.
When other adjustment key is pressed in step
3, the adjustment screen of the pressed key is
displayed.
6. Stitching Width
Stitching width is the center to center distance between the two stitches. Although the stitching width has
been set to the standard position, you can change the setting if the stitch and print overlaps.
If the value you entered falls on the stitch prohibited area, the folding knife and a stitch coincide
and the folding position may slightly change. We recommend that you do not fine adjust a
stitching position and leave it as it is.
[a]
[b] [c]
[a] Paper conveyance direction
[b] Stitching width
[c] Paper width
