Chapter 2 Basic Operation
8-9. Using the paper receiving guides F and B
During side stitching operations, if the sides of paper do not align on the paper receiver, use the supplied
paper receiving guides F and B.
10 mm/0.39 inch
10 mm/0.39 inch

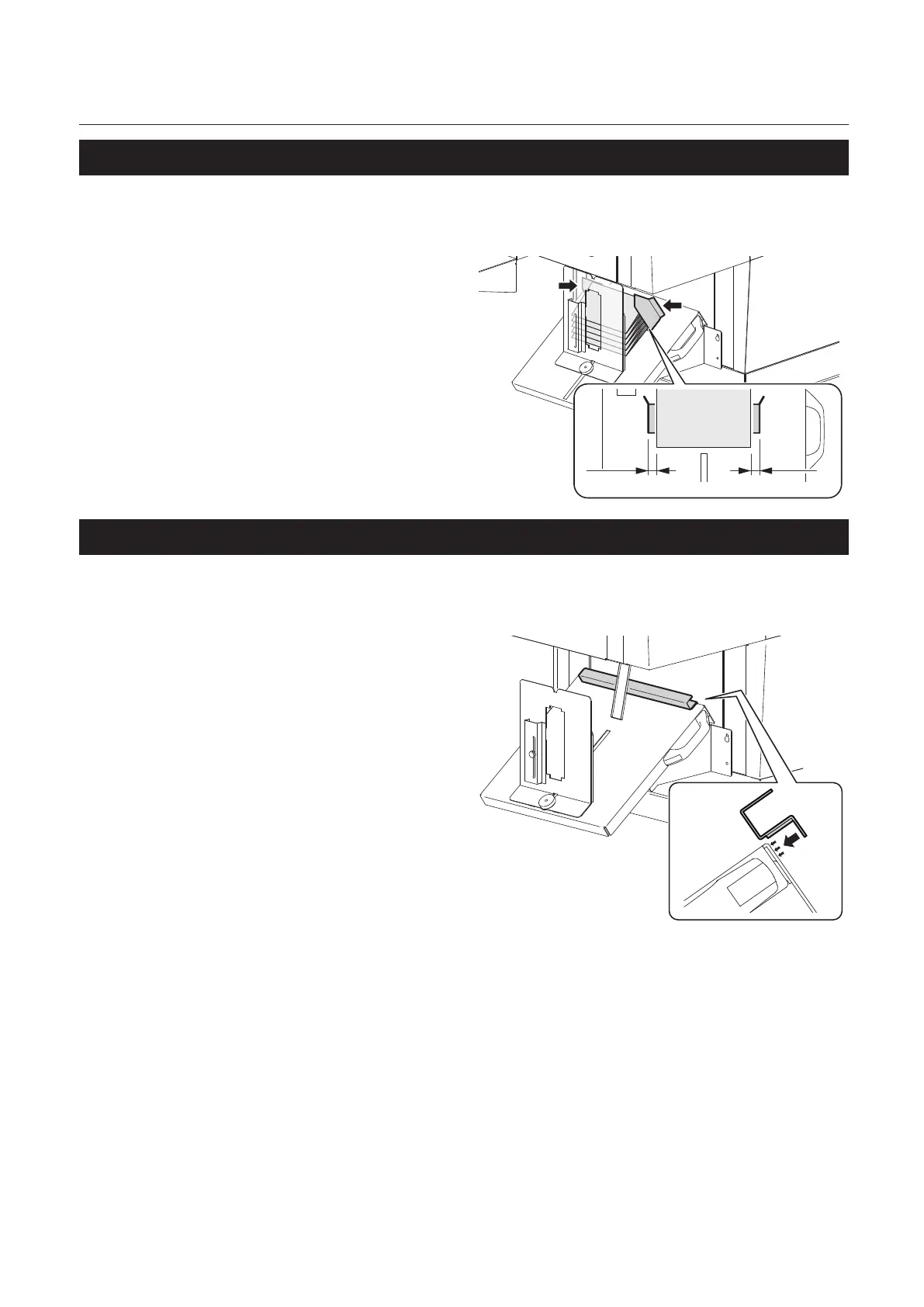

Place the paper receiving guides F and
B at 10 mm/0.39 inch from each side of
paper.
Place the paper receiving guide F on the
operator’s side and the paper receiving guide
B on the non-operator’s side.
8-10. Using the paper guide bracket
During side stitching operations, if paper is not neatly stacked on the paper receiver, use the supplied paper
guide bracket.
Place the paper guide bracket on the
right edge of the paper receiver when
viewing from the operator’s side.
Align the bent part of the guide with the
paper receiver.
