1-5
Chapter 1 Before Operation

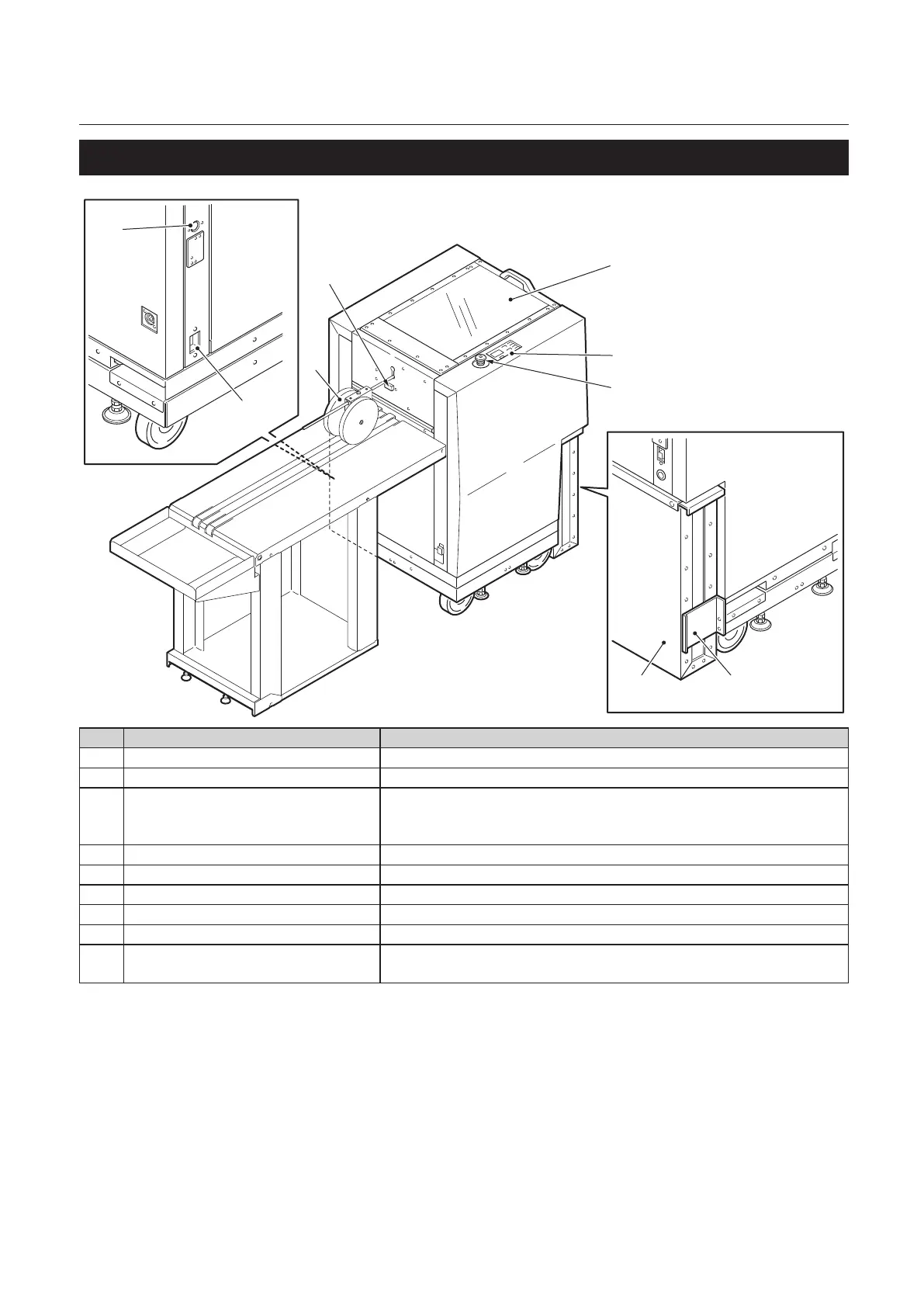

2-2. DBM-600T external parts
[6]
[7]
[5]
[4]
[1]
[2]
[3]
[8] [9]
No. Name Function
[1] Top cover Cover for ensuring user safety. This machine will not operate if open.
[2] Control panel Use this to operate the machine.
(p.1-36)
[3] Emergency stop switch Press this switch to stop the machine in emergencies. Turn the pressed
switch to the right to release it. While pressed, the machine will not
start and its moving parts will also not move.
[4] Paper guide roller unit Holds a booklet and supports the stacker.
(p.2-46)
[5] Damage prevention switch Prevents the paper guide roller unit from hitting the main unit.
(p.2-46)
[6] Kicker connector Connector for the kicker.
[7] Power inlet Connector for the power cord.
[8] Scrap box Ocuts are ejected to this box.
(p.4-3)
[9] Scrap box stopper Secures the position of the scrap box. When storing the scrap box,
push the box until it stops.
(p.4-3)
To Next Page
