Chapter 2 Basic Operation
9-2. Adjusting the stopper angle
When a booklet is trimmed skewed, adjust the conveyance stop timing on the control panel of the DBM-600
or the PC CONTROLLER.
””11-1. Adjusting conveyance stop timing” (p.2-47)
If a booklet is still trimmed skewed, stopper is not straight. Adjust the angle of the stopper.

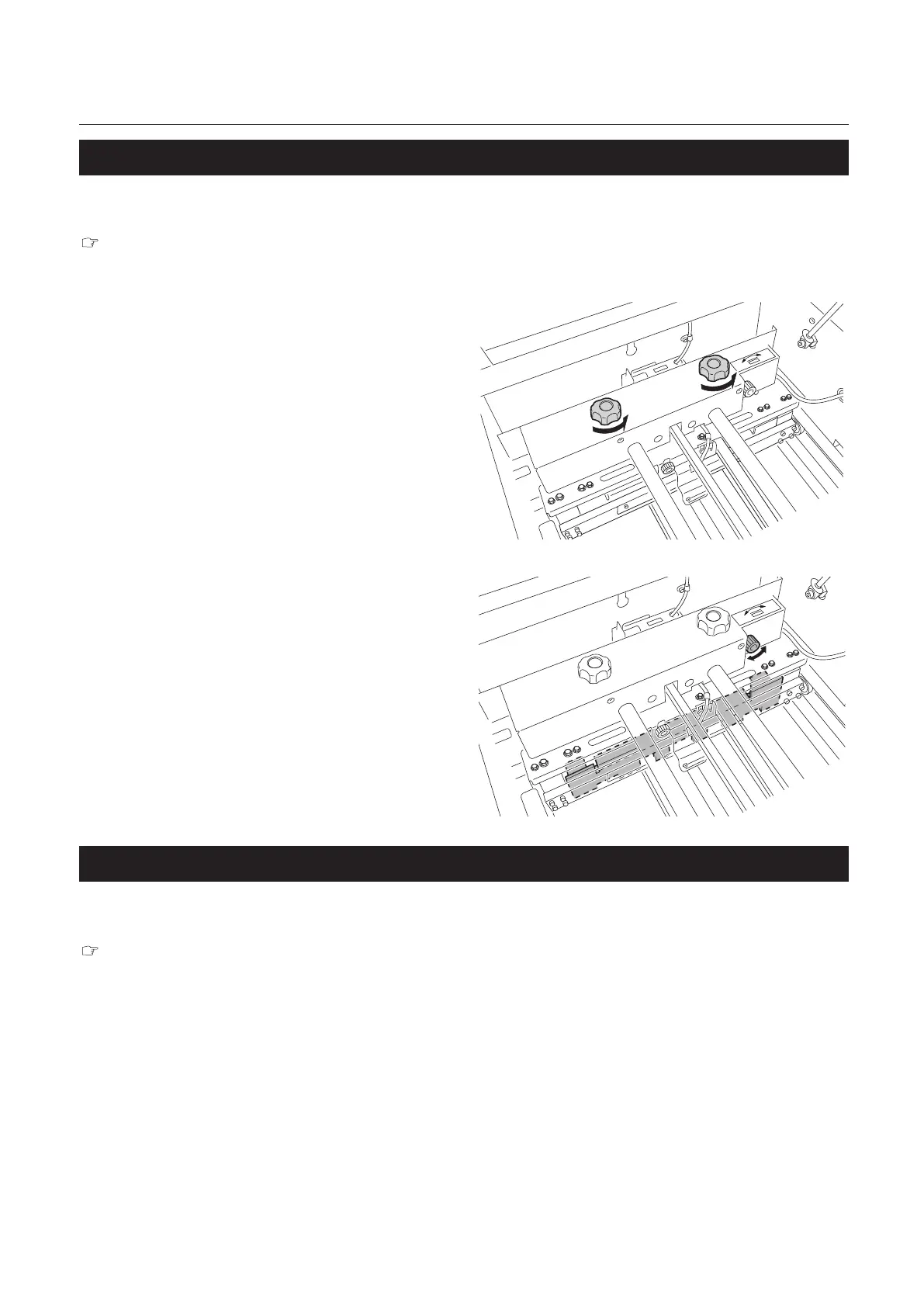

1
Loosen the stopper angle fixing knobs (2
pieces).
Turn them counterclockwise by one to two
turns.
2
Adjust the angle of the stopper using
the stopper angle adjustment.
The angle of the stopper changes according to
the direction of rotation.
3
Tighten the stopper angle fixing knobs
(2 pieces).
9-3. Adjusting finished length
Although the nished length is automatically decided when a paper size is entered on the PC CONTROLLER,
you can adjust it using the control panel of this machine. The adjustable length is ±5.0 mm/0.20 inch.
”5-2-3. How to use the menu screen” (p.1-38)
