Duplo DBM-600T User Manual

2-29
Chapter 2 Basic Operation

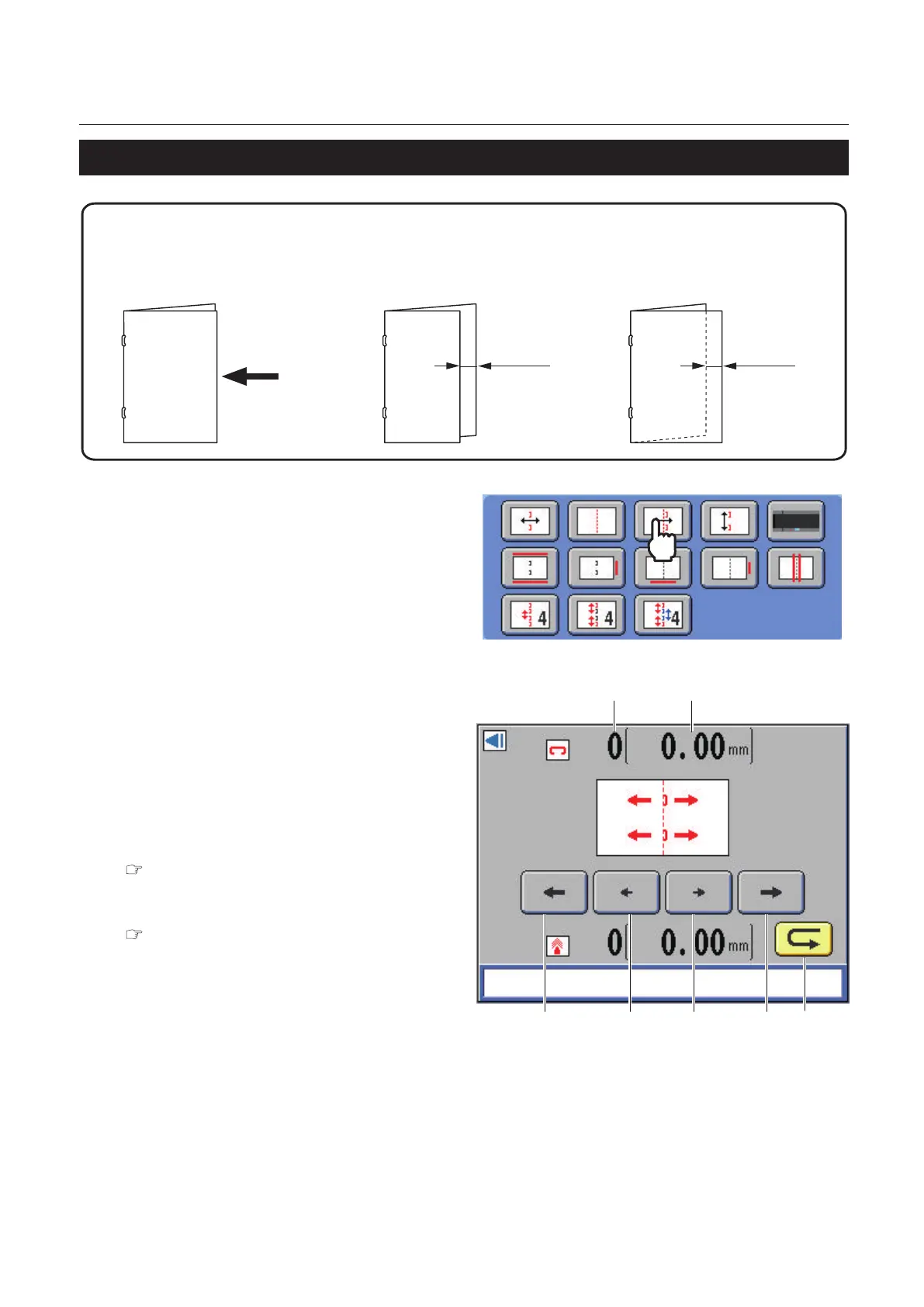

7-3. Adjusting stitching and folding positions simultaneously
Correct example
The stitched/folded line is at
the center of the paper.
The stitched/folded line is
out of position and the top
half of the paper is shorter.
The stitched/folded line is out
of position and the bottom
half of the paper is shorter.
Paper ejection
direction
Misalignment
Misalignment
1
Press the stitching and folding position
adjustment key on the [Adjust] screen.
[1]
[3]
[2]
[4] [5] [6] [7]
The stitching and folding position adjustment
screen will be displayed.
2
Press any of the key between [3] and [6]
to adjust the folding position.
Refer to the following procedures for the
setting range.
Stitching position
step 2 in””7-2. When stitching and folding
positions do not align” (p.2-27)
Folding position
step 4 in””7-2. When stitching and folding
positions do not align” (p.2-27)
