2009 DURATECH TUB GRINDER OPERATING INSTRUCTIONS

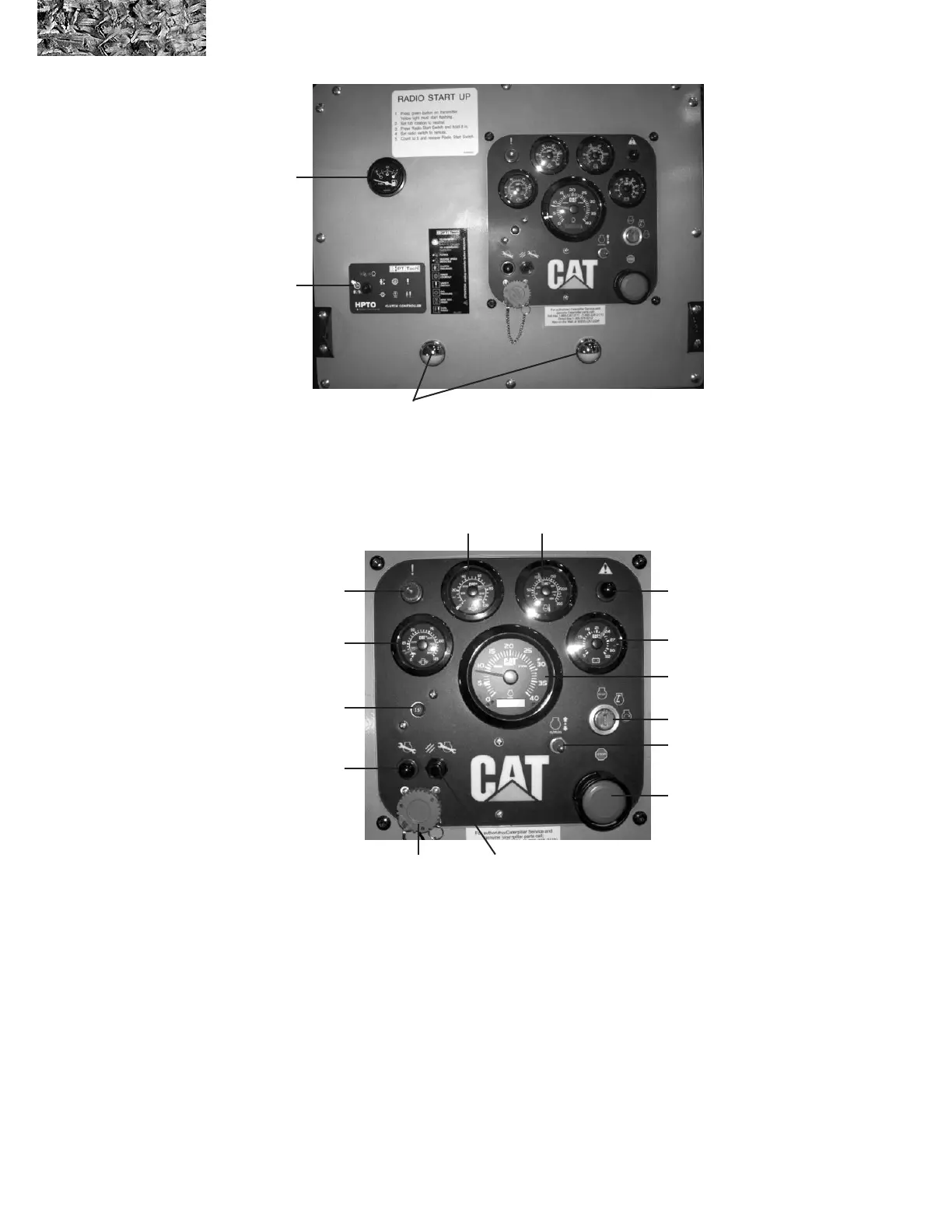

gure 2.6
top control panel for
machines with a Cat
engine
Dry clutch
display
Fuel gauge
Panel lights
5700907 Engine tachometer
5700940 Voltmeter
Warning lamp
5700497 Key switch
5700831 Throttle control
Engine kill switch
5700941
Water temperature
5700939
Oil pressure
Diagnostic lamp
5700938 Fuel pressure
Circuit breaker
Maintenance lamp
Service tool connector Maintenance clear switch
