2009 DURATECH TUB GRINDER OPERATING INSTRUCTIONS
Job hours gauge
Grinding hours
gauge
Job hours reset
button
Rotor status
lights
Electronic
governor
Auxiliary hydraulic
pressure gauge
Conveyor
Fold/Unfold
Tub Up/Down
Lights On/Off
Conveyor
Up/Down
Remote
radio/
Local
switch
Tub
rotation
Forward/
Reverse
Conveyor
On/Off
Optional tub cover
(2 switches)
Conveyor circuit
hydraulic pressure
gauge
Tub circuit hydraulic
pressure gauge
Optional jack
control switches
Up/Down
Left/Right
Radio
remote
control

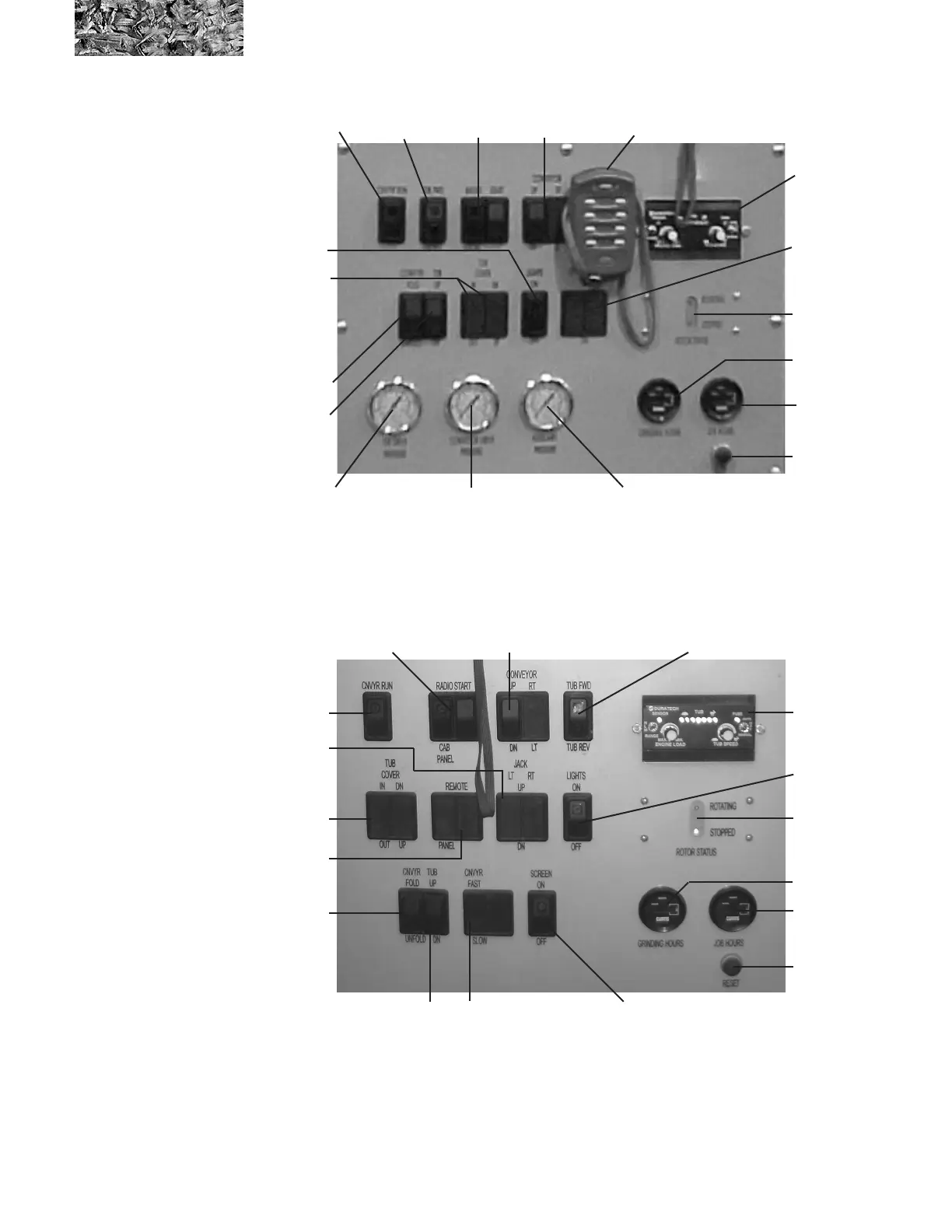

gure 2.7
bottom control panel
for machines with
either a John Deere or
Cat engine
(S.N. UP TO 0034)
gure 2.8
bottom control panel
for machines with
either a Cat engine
(S.N. 0035 & UP)
Job hours gauge
Grinding hours
gauge
Job hours reset
button
Rotor status
lights
Electronic
governor
Lights On/Off
Tub Rotation
Forward/Reverse
Conveyor
On/Off
Optional tub cover
(2 switches)
Remote
Radio/Local
switch
Conveyor Up/Down
& Left/Right
Optional jack control switches
Up/Down
Left/Right
Radio Remote
Start / Panel
Tub Up/Down
Conveyor Fold/Unfold
Conveyor Fast/Slow Screen On/Off
