2009 DURATECH TUB GRINDER OPERATING INSTRUCTIONS
CONTROL PANEL FOR THE 2009 TRACK
The control panel is located on the left hand side of the engine.
Controls on the control panel include; engine start, emergency kill switch, throttle, tub controls, conveyor on/off,
conveyor positioning, rotor engage, rotor disengage button, tub governor, tub tilt, and the job hours reset button.
Gauges on the control panel include; tub circuit hydraulic pressure, conveyor hydraulic pressure, auxiliary hydraulic
pressure, track charge pressure, fuel level, grinding hours gauge, job hour’s gauge and a quad gauge with engine oil
pressure, battery, engine temperature and fuel level.

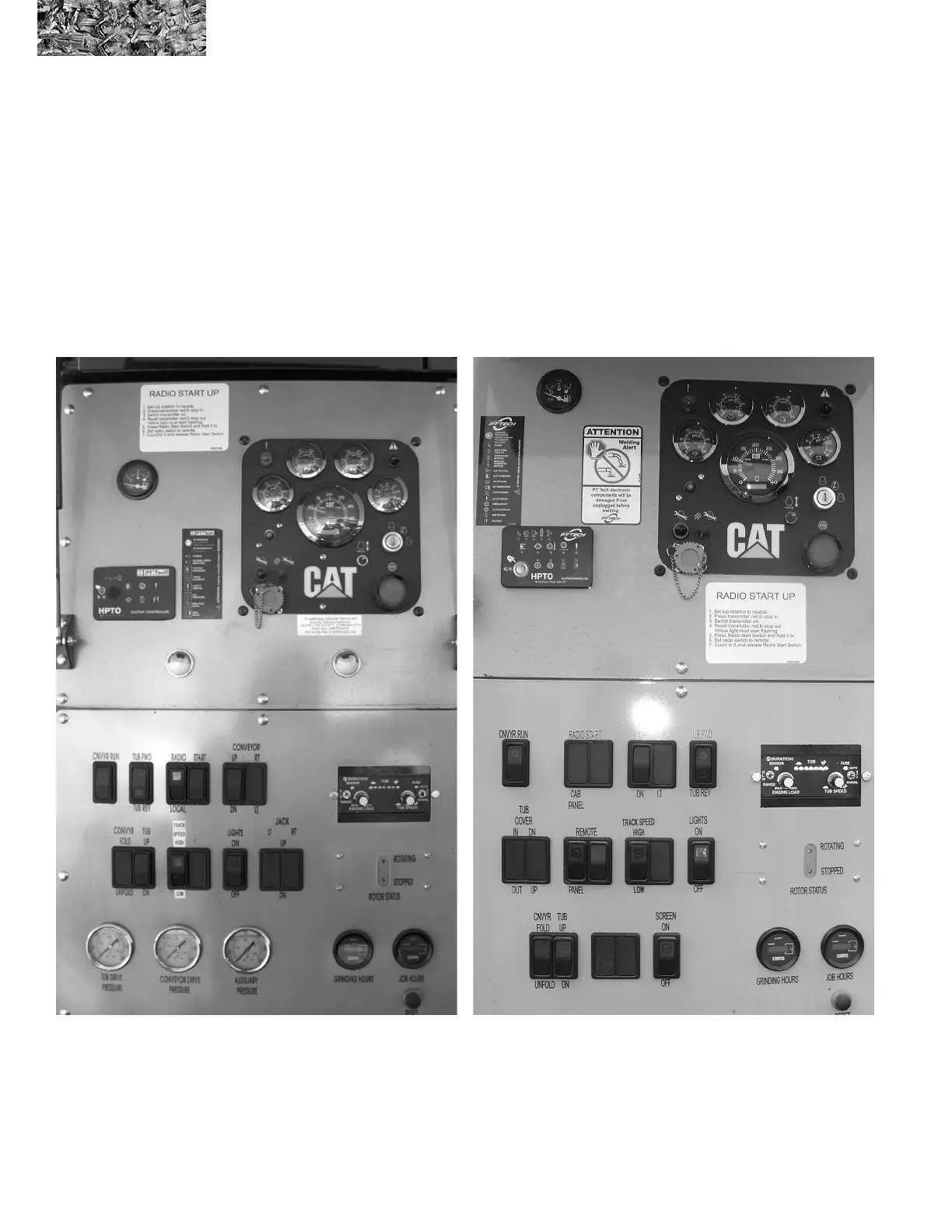

Control panel
(up to S.N. 0034)
Control panel
(S.N. 0035 and up)
