2009 DURATECH TUB GRINDER OPERATING INSTRUCTIONS
Conveyor
on/off
Tub
rotation
forward/
reverse
Remote
radio/
Local
switch
Conveyor
up/down
Electronic Governor
Rotor status
lights
Job hours
Track speed
High/Low
Job hours
reset button
Tub
Up/Down
Tub circuit
hydraulic
pressure
Conveyor
circuit
hydraulic
pressure
Auxillary
hydraulic
pressure gauge
Lights
On/Off
Grinding
hours

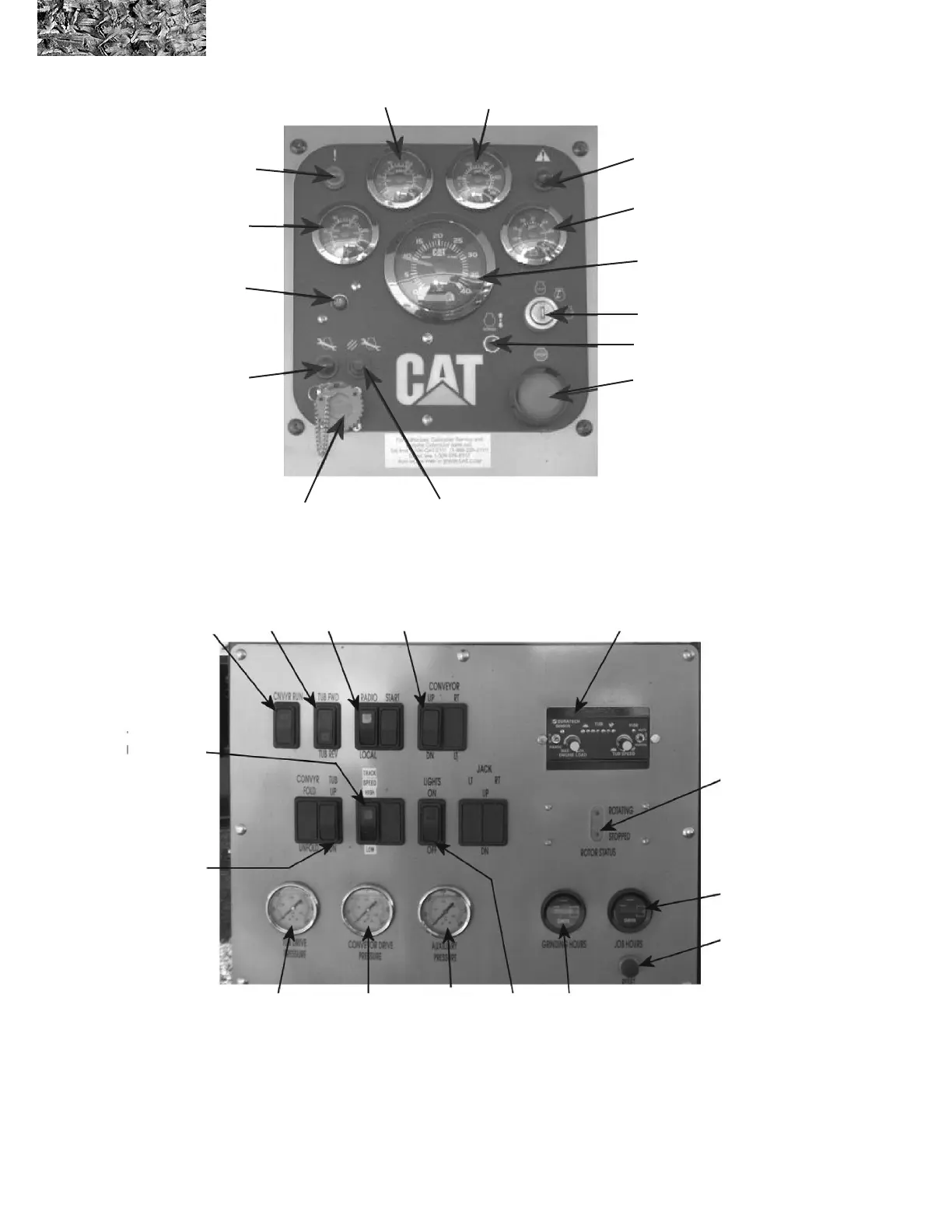

Bottom control panel
(up to S.N. 0034)
5700939
Oil pressure
5700941
Water temperature
Warning lamp
5700940 Voltmeter
5700907 Engine tachometer
5700497 Key switch
5700831 Throttle control
Engine kill switch
Maintenance clear switch
Service tool connector
Diagnostic lamp
5700938 Fuel pressure
Circuit breaker
Maintenance lamp
Top control panel
CAT Panel - All S.N.
