2009 DURATECH TUB GRINDER OPERATING INSTRUCTIONS

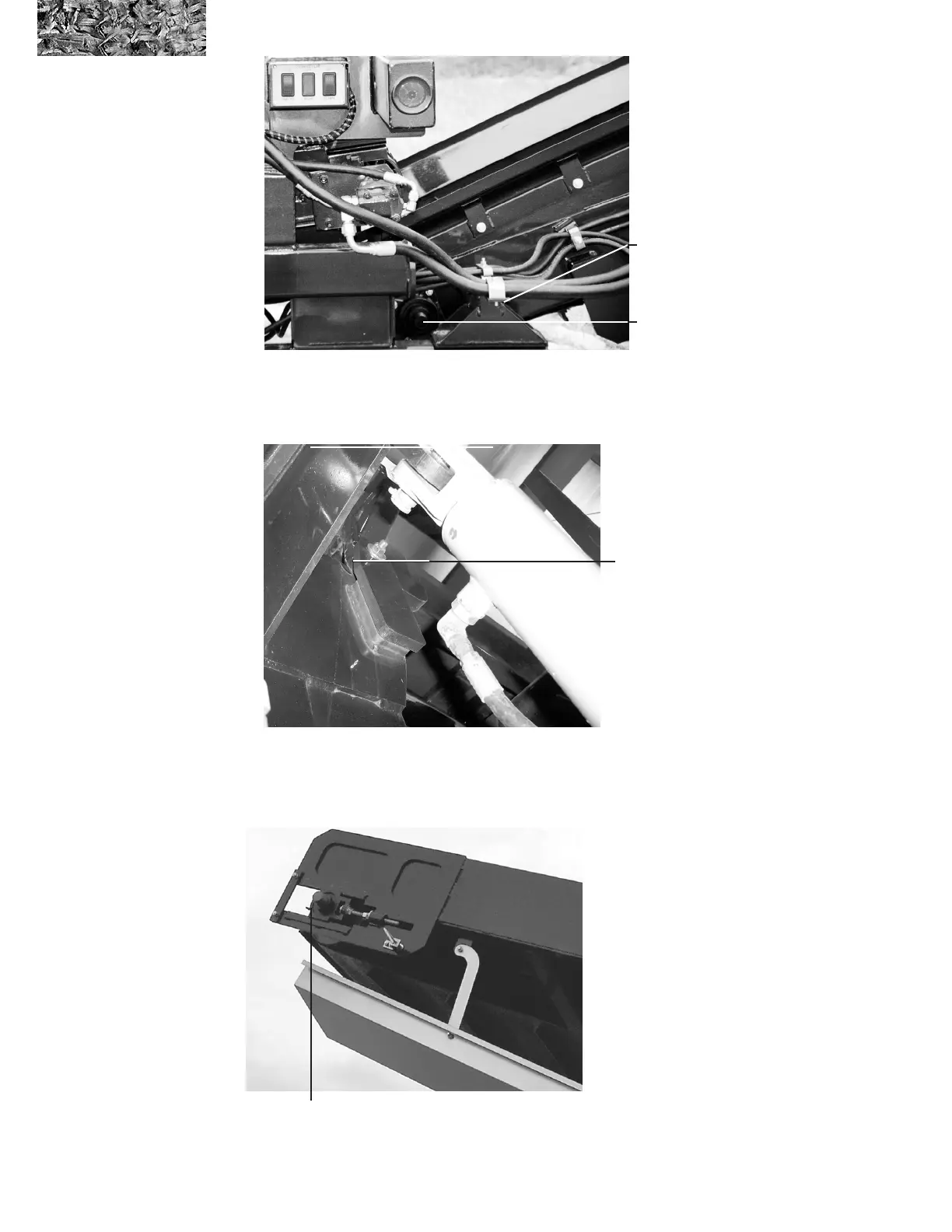

discharge conveyor fold pivot

(Ref # 9a)

gure 5.5

conveyor fold pivot

lubrication point

gure 5.6

discharge conveyor roller

lubrication point

discharge conveyor roller

(Ref #8)

gure 5.4 discharge

conveyor roller, and

discharge conveyor

lift pivot lubrication

points

discharge conveyor roller

(Ref # 8)

discharge conveyor lift pivot

(Ref # 10)
