2009 DURATECH TUB GRINDER OPERATING INSTRUCTIONS

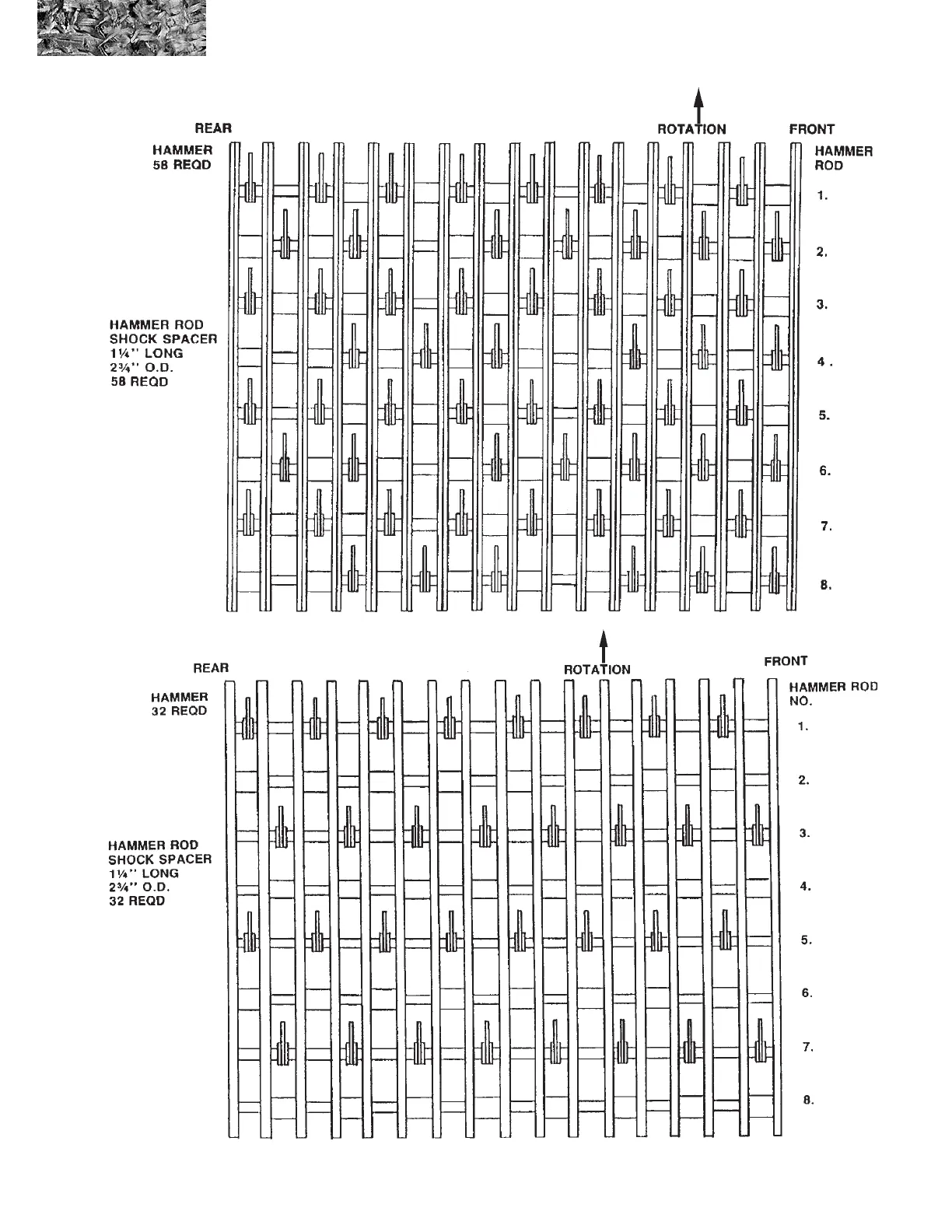

SWINGING HAMMERS SPACING CHARTS ( FOR S.N. UP TO 0034)

gure 5.13

full set swing

(58 hammers)

gure 5.13

1/2 Set Swing

(32 hammers)
