2009 DURATECH TUB GRINDER OPERATING INSTRUCTIONS

REPLACING BATTERIES

Install batteries by removing the battery cover using a slotted screwdriver and inserting 4 “AA” Alkaline batteries.

Orientation for batteries is embossed inside the battery housing.

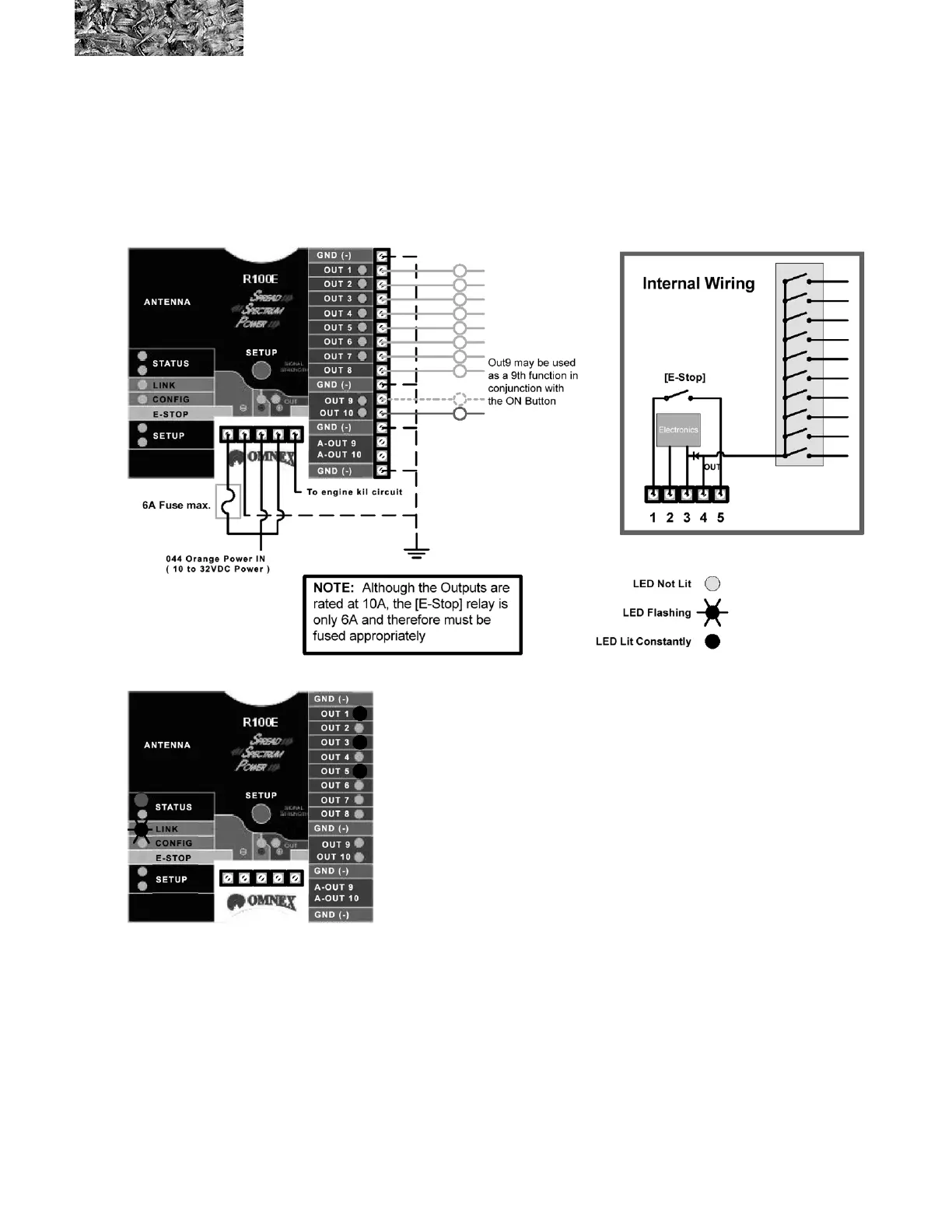

WIRING SCHEMATIC FOR THE R100e RECEIVER
