30 / 84 SM-SG-2 Ev3/25062014
- Install both springs by using pliers and secure them by two self-securing nuts M6
- Connect hydraulic hose
- Deaerate system by breather, see above
- Adjust braking function by the fork rod, see above
b) Replacement of the brake lining
Dismounting:
- Remove driving belts on the brake side, see 6.15 Replacement of the driving belts

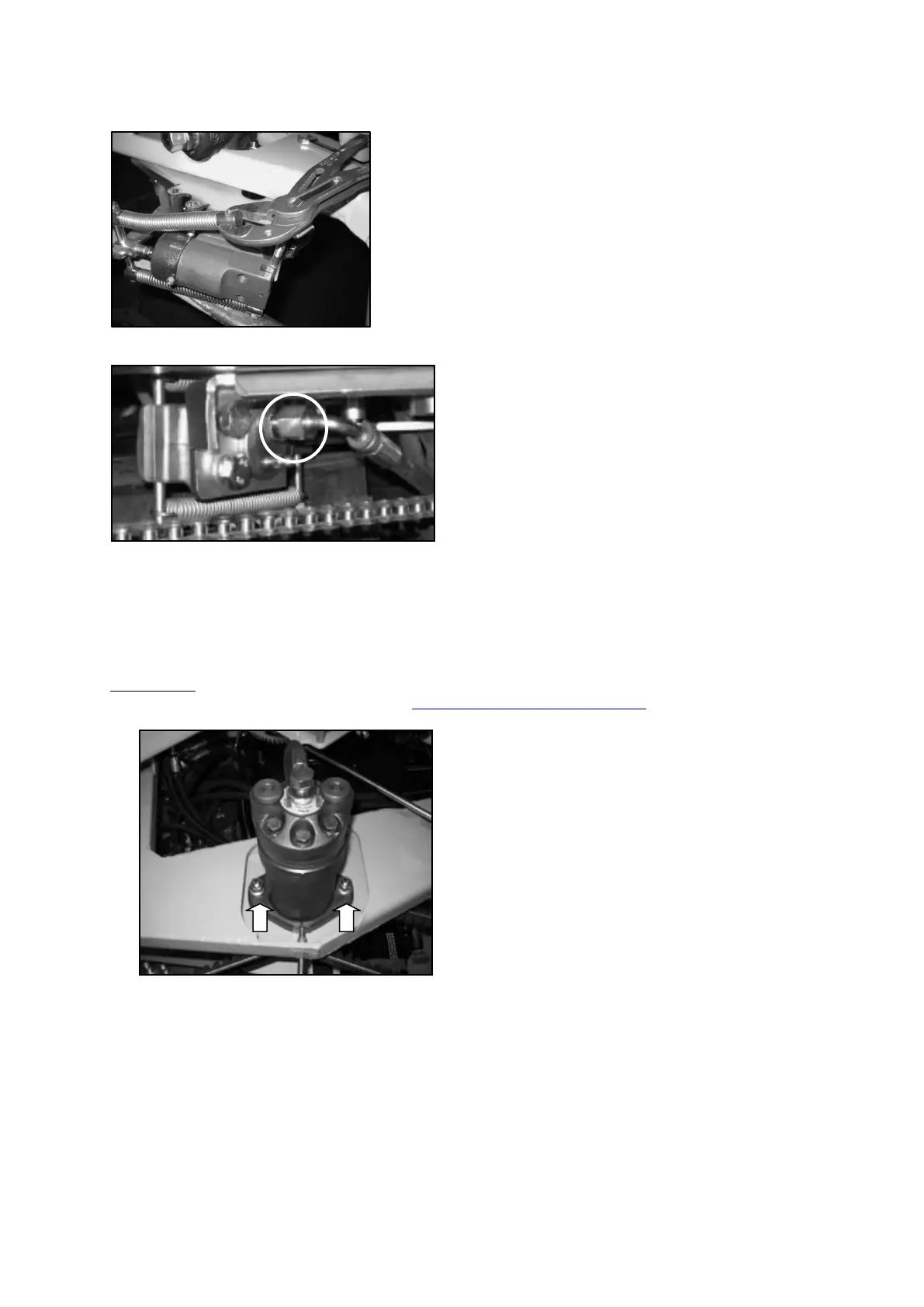

- Undo both lock nuts of the hydraulic motor
- Pull out brake strap Fig. 2
- Undo fork, Fig. 17, from both springs to release brake lining on the pulley Fig. 24
- Undo split pin FIg 6. together with the washer and pull out the brake lever with the lining
- Remove two split pins of the lining, Fig. 22, and change the lining for a new one
