39 / 84 SM-SG-2 Ev3/25062014
- Put on the clutch belt see 6.7 Replacement of the clutch driving belt B 1160
- Put the mower back to operating position
- Start the engine and test the activation of the mowing mechanism (DON’T MOUNT THE BLADE)
Activated clutch must not activate the brake
Deactivated clutch has to stop the mechanism within 0,5s (within 5 seconds with the
mounted blades)

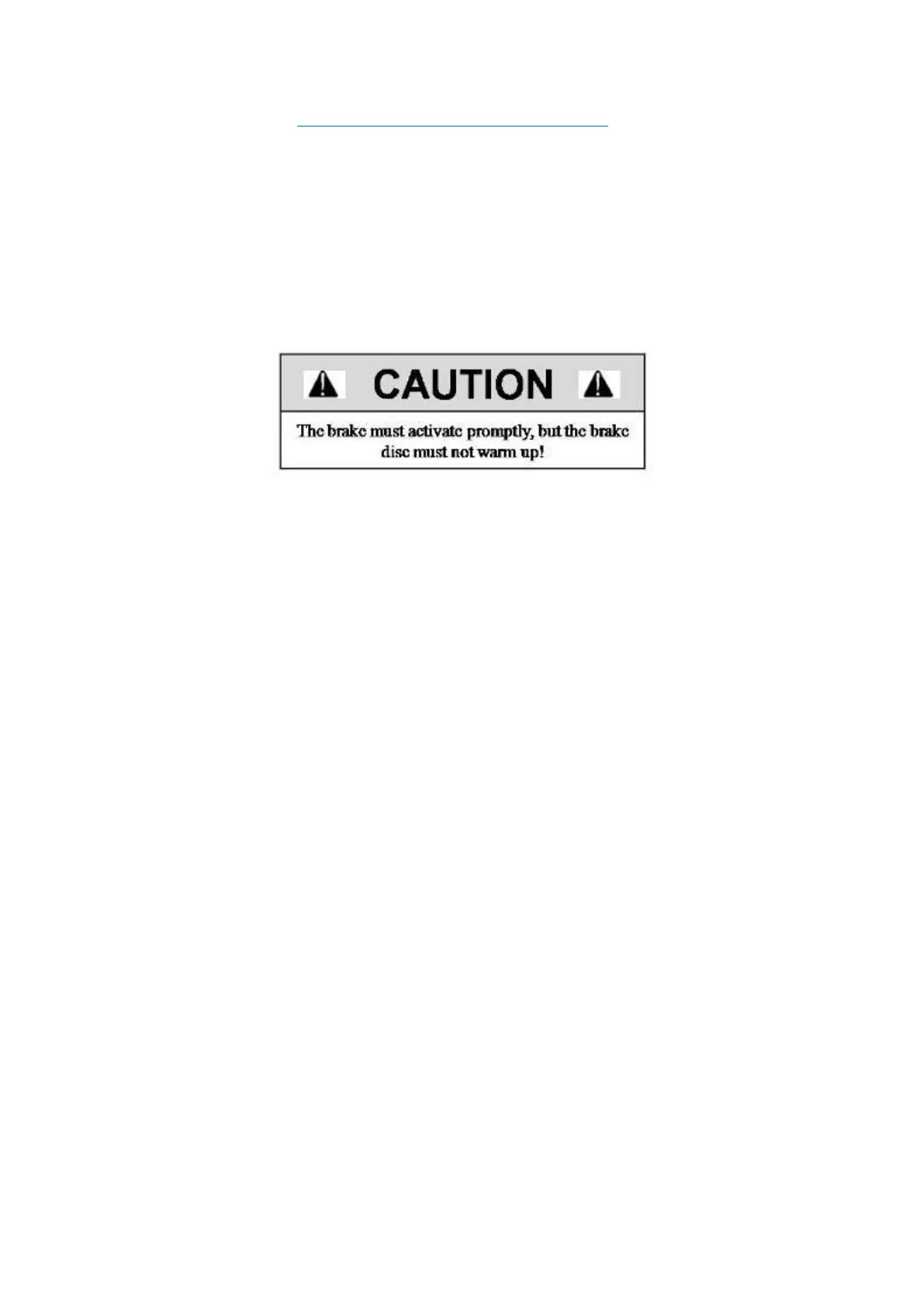

When the clutch is activated, the brake disc must not warm up
Each side of the brake must be adjusted equally
- Check tightness of the nuts and the belt slack.
- Install the clutch cover. Loctite the cover bolts (LOCTITE 243)
- Install the carrier cartridges (don´t forget the key) using grease for easier next manipulation
- install the blades, using LOCTITE 243
