SM-SG-2 Ev3/25062014

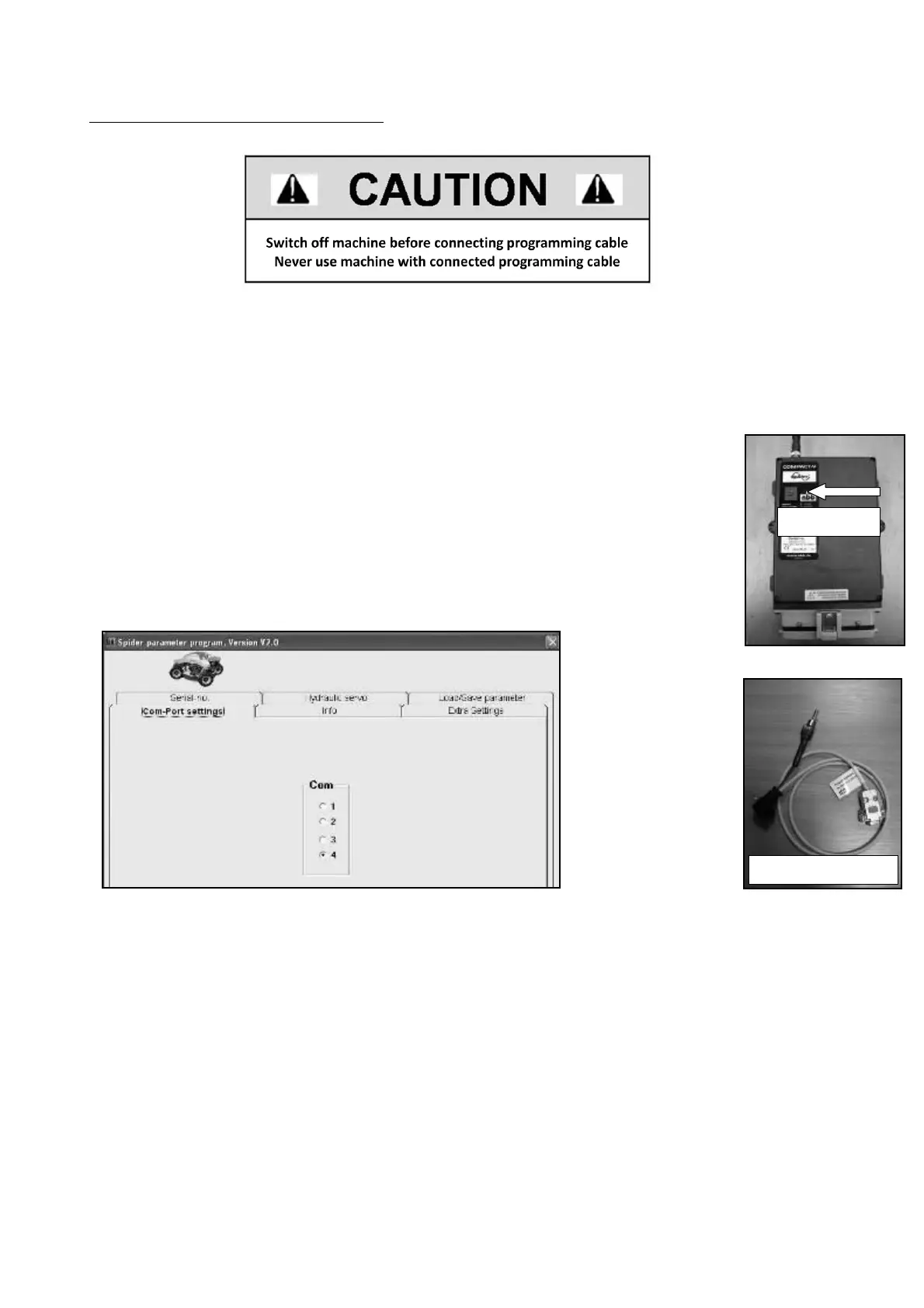

PROGRAMMING OF THE CONTROL UNIT
SPIDER PARAMETER PROGRAM
Getting Started:
- Ensure the power on the SPIDER is off
- Connect the programming cable between the NBB control unit (service plug) and your Computer
- Set the switch on the cable in the direction OFF or O (depends on the cable version)
- Switch on the power on the Spider
Operating with Spider Parameter Program:
- Select the tab ”Com-Port settings” and select the com port you are using on your computer
- When you select the tab “Hydraulic servo” you can read individual parameter from the \NBB control unit
(receiver)
- You can change them and write them back to the NBB control unit. Use this function to set up parameters
for the hydraulic pump servo.
