SM-SG-2 Ev3/25062014
Default values: Recommended range:
Zero position offset -1 -5 +5
Maximum angle 100 90 – 100
Minimum power offset 30 25-30
Zero range 2 2-4
Contra signal 4 4-8
Possible adjustments:

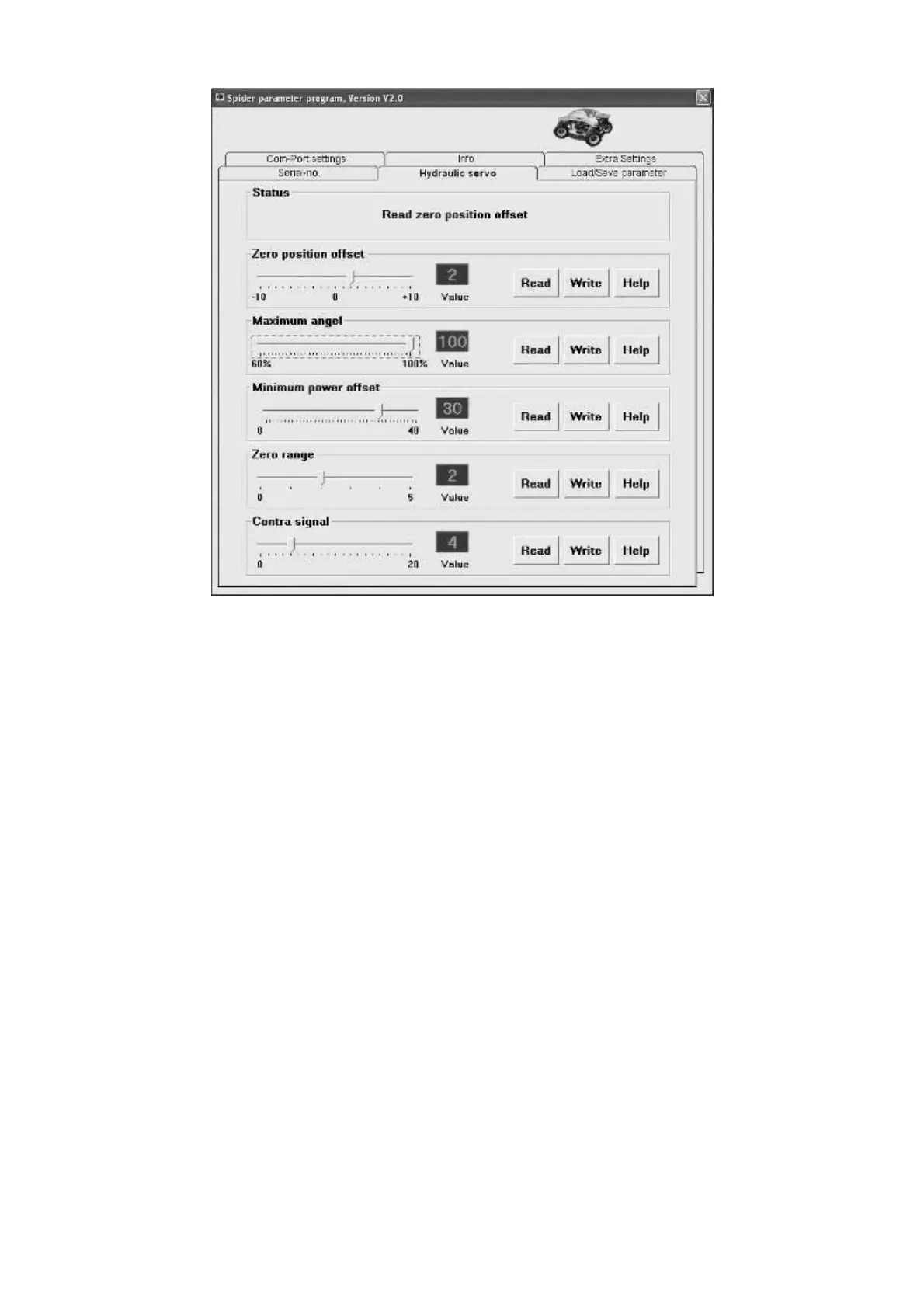

Zero Position Offset
- To set an offset to the neutral (middle) position of the hydraulic servomotor.
Maximum angle
- To set the limit (range) angle of the hydraulic servomotor –max. speed for both sides
Minimum power offset
- To set the minimum power. When the reactions of the servo are too slow, it can be set higher.
- Oscillation of the servo can be correct with decreasing to value 25
Zero range
- To set the tolerance of the set point of the hydraulic servomotor. When it is 0 the motor will adjust to the
exact angle-range for the neutral is 0 so servo will oscillate. This can be resolved with increasing to value
above 2 up to 4
Contra signal
- To set the value of the contra signal. When joystick returns to the zero position the receiver generates a
short contra (reverse) signal in the backward direction. This will stop the slow drive of the hydraulic drive.
Visible mainly in Turtle mode
Match Handset to Control Unit
- When you select the tab “Serial-no” you can set the system address of the NBB control unit-receiver. Use
the serial number of the hand set-transmitter (under battery) and “Write” it to the NBB control unit. Use
this function to match the control unit with a new hand set.
