5.10 GSC400 LED Status Indicators
Some industry standard failures,
warnings, and events on the
GSC400 are indicated by a series of
LEDs on the left side of the
controller.
Specific LED indicators will be
illuminated depending upon the
condition of the controller. The
GSC400 LED indicators allow a
quick check of the controller’s
condition.

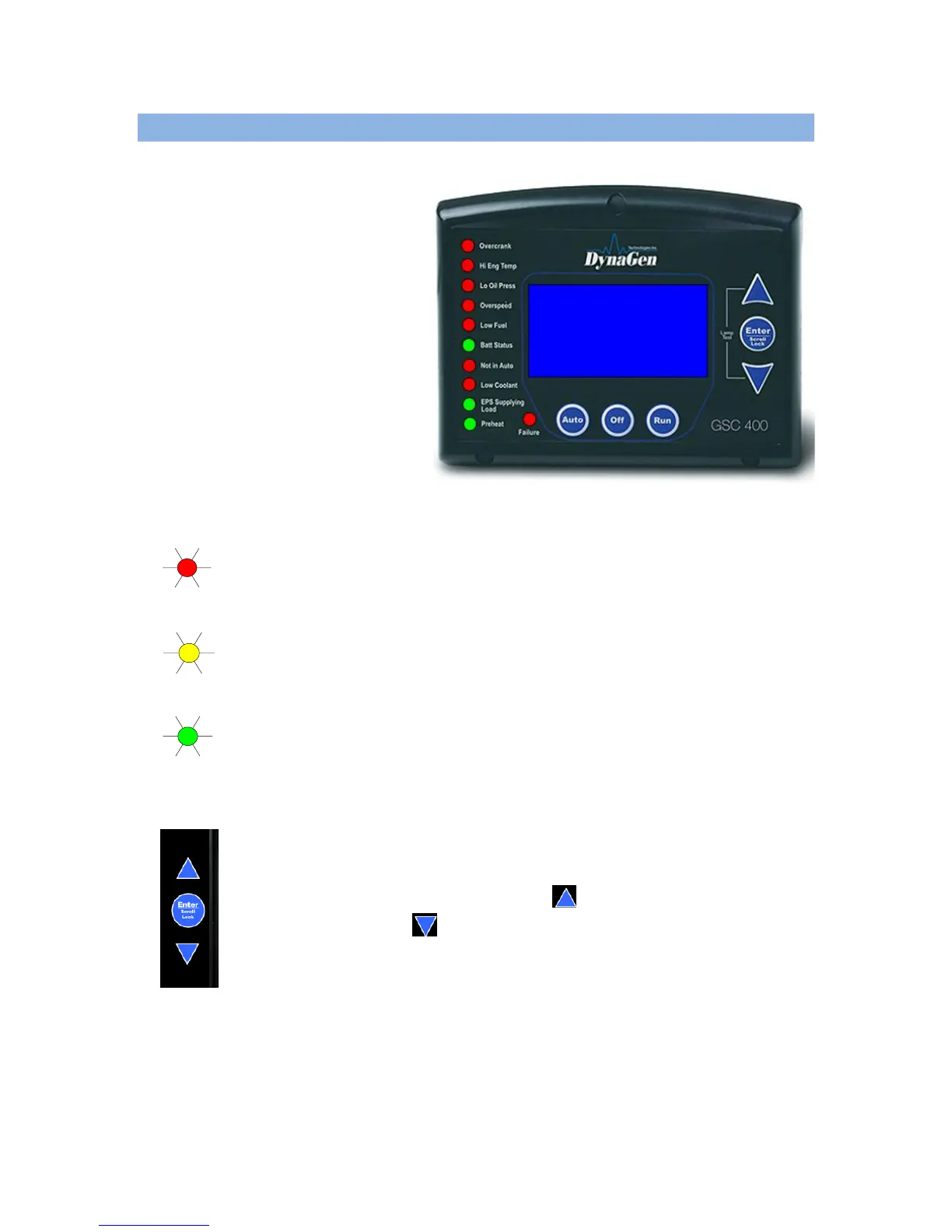

The GSC400 displays multi color
LED’s for specific condition
representation.
Red
- Represents Failure Conditions
Yellow
- Represents Warning Conditions
Green
- Represents Normal/Active Conditions
An LED test may be performed by the
user for illumination of all controller
LED’s. The LED test may be performed
by simultaneously pressing the UP key
and the DOWN key on the GSC400.
