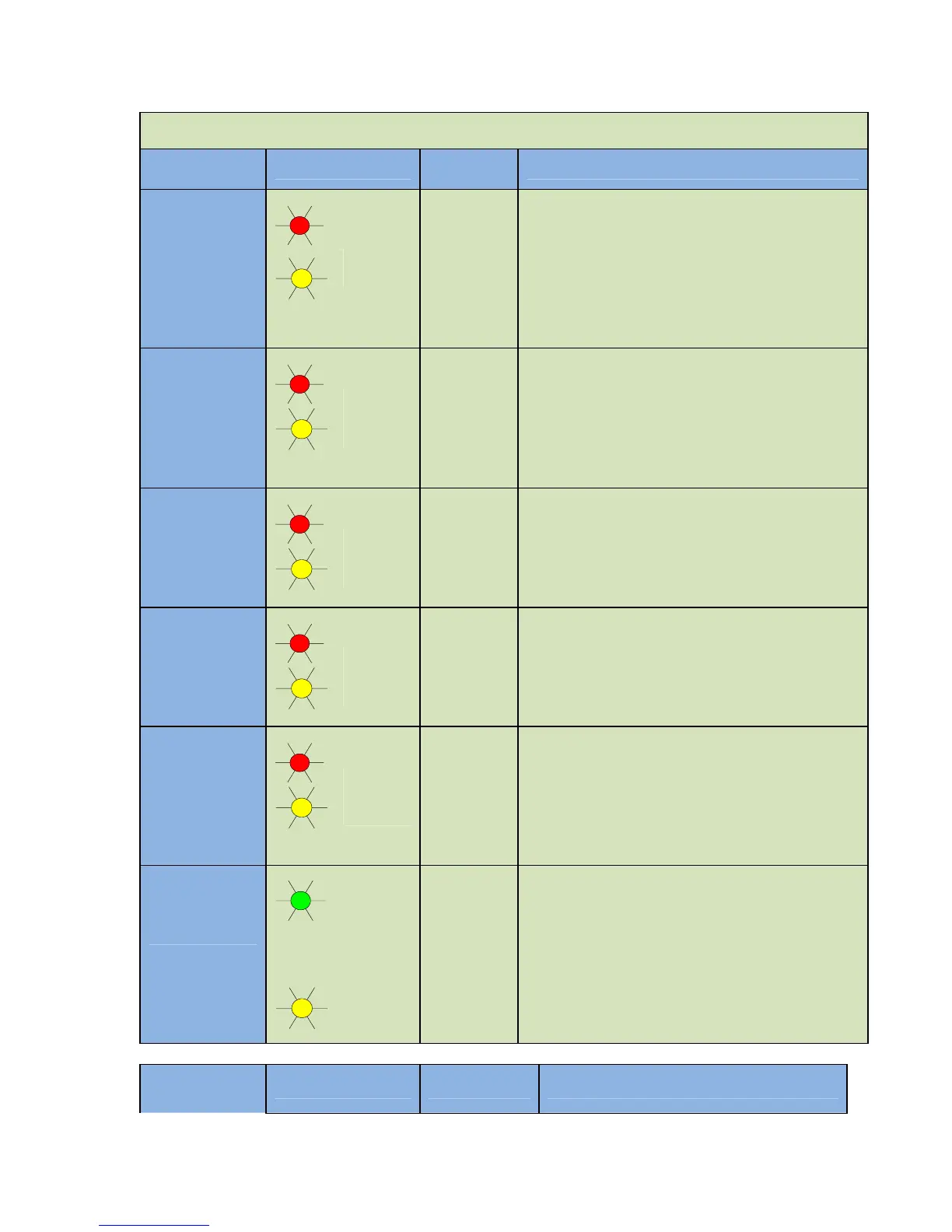

Table 7 – GSC400 Lamp Indication Meanings
LED
Description
LED Color
LED
Status
Indication
Over Crank
Red
Yellow
Solid Red
Solid
Yellow
A solid red illuminated LED represents an Over
Crank condition on the final crank attempt.
This is a Failure.
A solid yellow illuminated LED represents an
Over Crank Warning condition when there are
crank attempts still remaining.
High Eng
Temp
Red
Yellow
Solid Red
Solid
Yellow
A solid red illuminated LED represents a High
engine Temp Failure condition.
A solid yellow illuminated LED represents a
High engine Temp Warning condition.
Low Oil
Press
Red
Yellow
Solid Red
Solid
Yellow
A solid red illuminated LED represents a Low
Oil Pressure Failure condition.
A solid yellow illuminated LED represents a
Low Oil Pressure Warning condition.
Over Speed
Red
Yellow
Solid Red
Solid
Yellow
A solid red illuminated LED represents an Over
Speed Failure condition.
A solid yellow illuminated LED represents an
Over Speed Warning condition.
Low fuel
Red
Yellow
Solid Red
Solid
Yellow
A solid red illuminated LED represents a Low
Fuel Level Failure condition.
A solid yellow illuminated LED represents a
Low Fuel Level Warning condition.
Battery Status
Green
Yellow
Solid
Green
Flashing
Green
Solid
Yellow
A solid green illuminated LED represents a
normal battery condition.
Controller in Auto mode – Waiting to start
A solid yellow illuminated LED represents a
Low Battery condition.
LED
Description
LED Color LED Status Indication
