Control Unit — SPX9000 FR10 – FR14

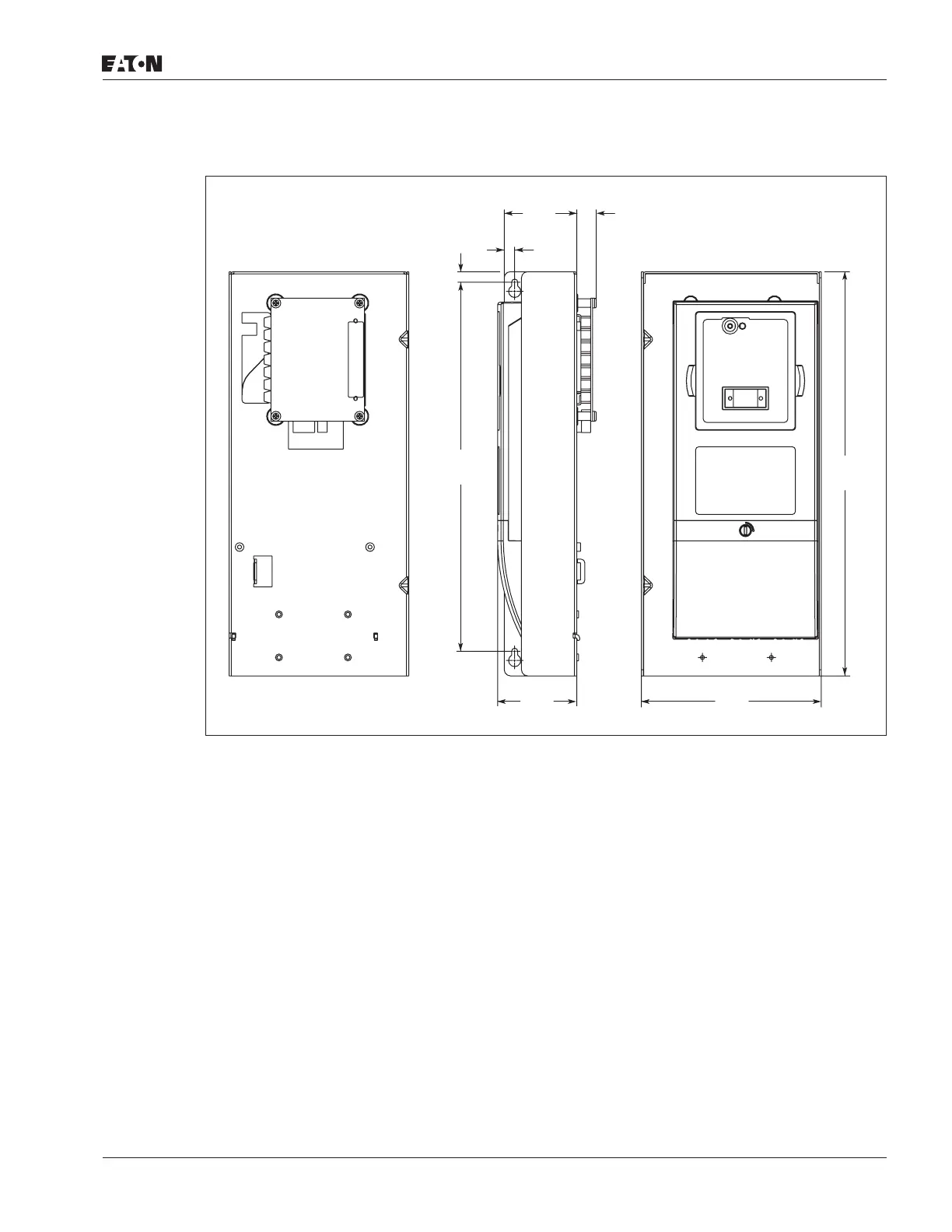

Figure A-22: Control Unit Dimensions
Approximate Dimensions in Inches (mm)
11.82
(300)
12.94
(328.5)
5.75
(146)
2.52
(64)
.33
(8.5)
.33
(8.5)
2.32
(59)
.63
(16)
