9000X AF Drives User Manual
MN04001004E
For more information visit: www.eaton.com 5-1
June 2009
Chapter 5 — Menu Information
Keypad Operation

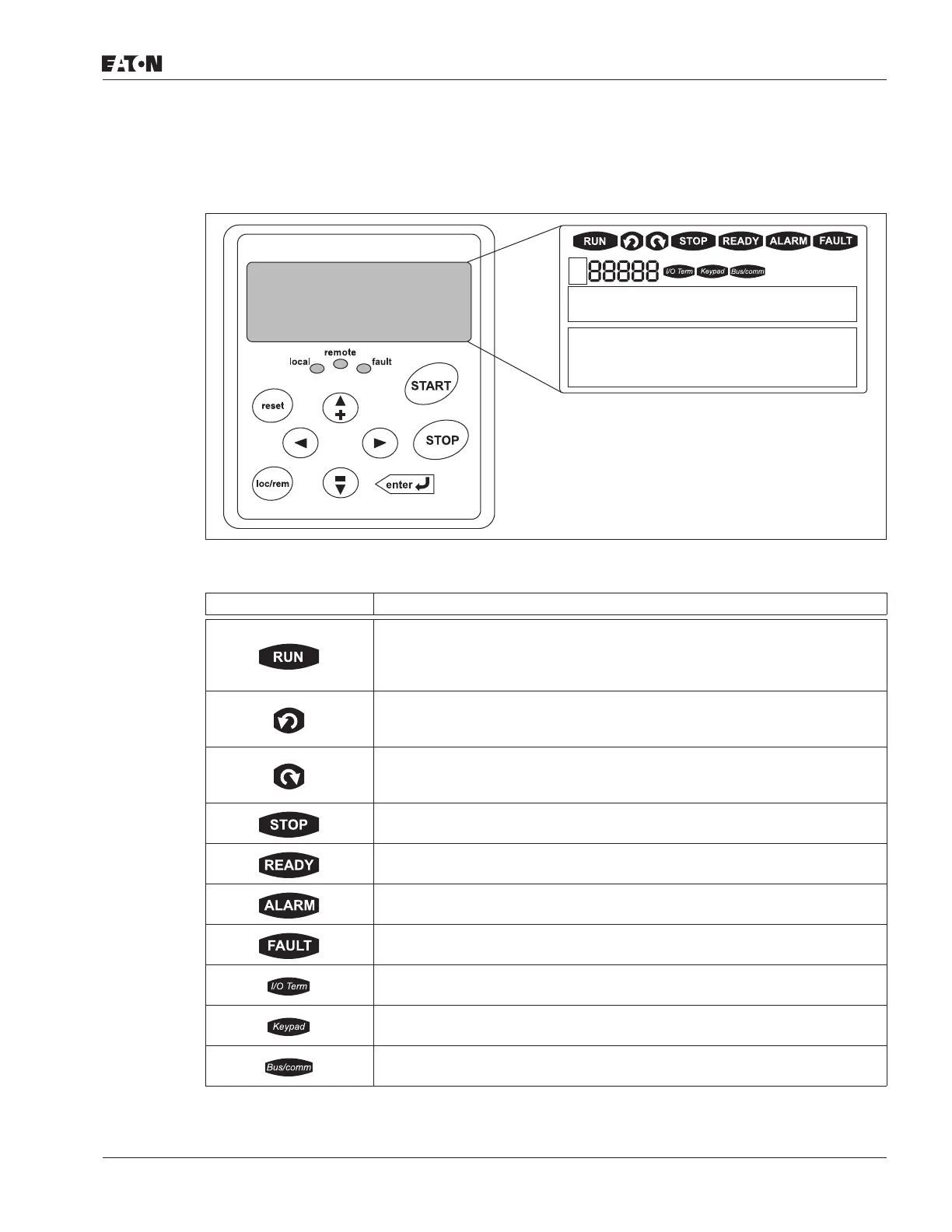

Figure 5-1: Keypad and Display
Table 5-1: LCD Status Indicators
Indicator Description
Run
Indicates that the SVX9000/SPX9000 is running and controlling the load.
Blinks when a stop command has been given but the SVX9000/SPX9000 is
still ramping down.
Counterclockwise Operation
The output phase rotation is BAC, corresponding to counterclockwise
rotation of most motors.
Clockwise Operation
The output phase rotation is ABC, corresponding to clockwise rotation of
most motors.
Stop
Indicates that the SVX9000/SPX9000 is stopped and not controlling the load.
Ready
Indicates that the SVX9000/SPX9000 is ready to be started.
Alarm
Indicates that there is one or more active drive alarm(s).
Fault
Indicates that there is one or more active drive fault(s).
I/O Terminal
Indicates that the I/O terminals have been chosen for control.
Keypad
Indicates that the keypad has been chosen for control.
Bus/Communications
Indicates that the communications bus control has been chosen for control.
