Eaton 9000X - Figure 3-10: FR6 Power and Motor Wiring Terminals

9000X AF Drives User Manual
3-16 For more information visit: www.eaton.com
MN04001004E
June 2009

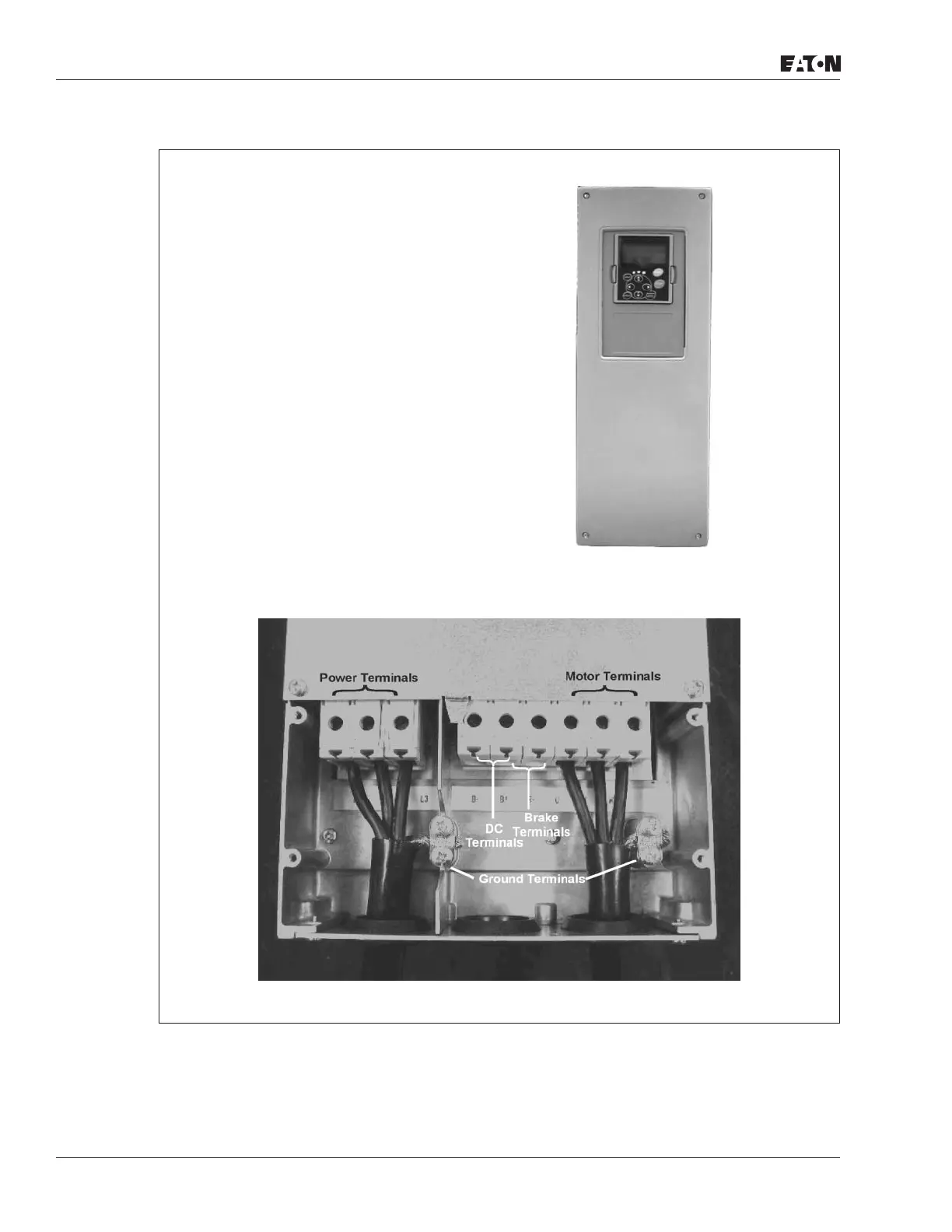

Figure 3-10: FR6 Power and Motor Wiring Terminals
230V, 10 – 15 hp
480V, 20 – 30 hp
575V, 2 – 25 hp
Frame Size: FR6
