12 Secure-Digital-Memory Card SD
12.2.1 Layout of the logbook
The logbook of the CG-Controller is located on
an Secure-Digital-Memory Card (SD).
The CG-Controller logbook is compatible with
the logbook of the CG 2000, i.e. the two have
the same structure.
By default, the SD holds 66 or 130 files:
•configcg.dat=CGcontrollerconfiguration
•logbook.dat=CGcontrollerlogbook
and (CG 2000):
•config01.dat–config32.dat=configurationsof
network systems device XX
•texte01.dat–texte32.dat=textofnetwork
systems device XX

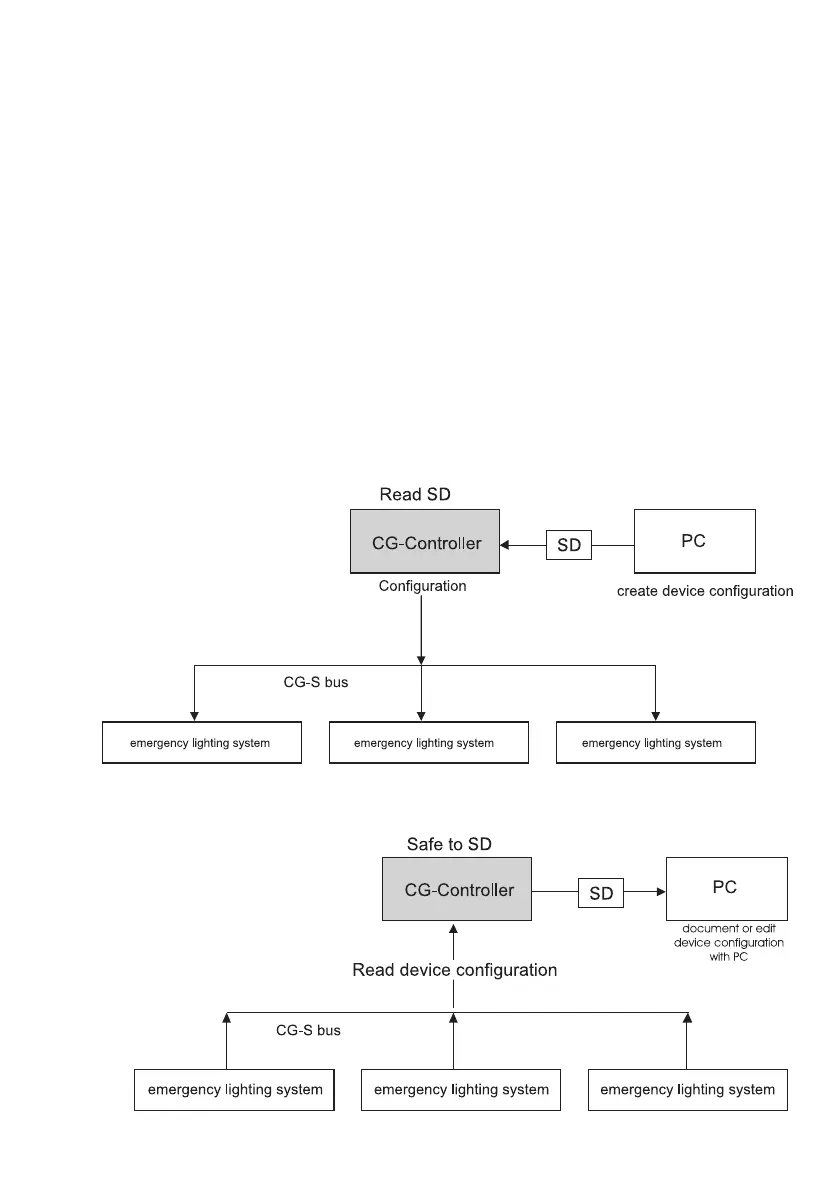

Figure 7:
Data flow from the devices of an
emergency lighting system to a PC
via CG-Controller and SD
The “Emergency lighting system”
means the corresponding CG 2000
or ZB-S controller systems for the
respective controller type.
or (ZB-S):
•zbscfg01.dat–zbscfg32.dat=configurations
of network systems device
•zbstxt01.dat–zbstxt32.dat=Textofnetwork
systems device XX
Content of files:
•configcg.dat:Thisfilecontainstheconfiguration
of the CG-Controller and is located on the SD.
•logbook.dat:Thisfilecontainsthelogbookof
the CG-Controller and is also located on the SD.
Depending on the controller type (CG 2000 or
ZB-S), additional files are saved on the SD:
•configxx.datand
textexx.dat for controller type = CG 2000
•zbscfgxx.datandzbstxtxx.datforcontroller
type = ZB-S
Figure 6:
Data flow from a PC via SD and
CG-Controller to the devices of
network systems
The “Emergency lighting system”
means the corresponding CG
2000 or ZB-S controller systems
for the respective controller type.
