9.5 Mains contactors

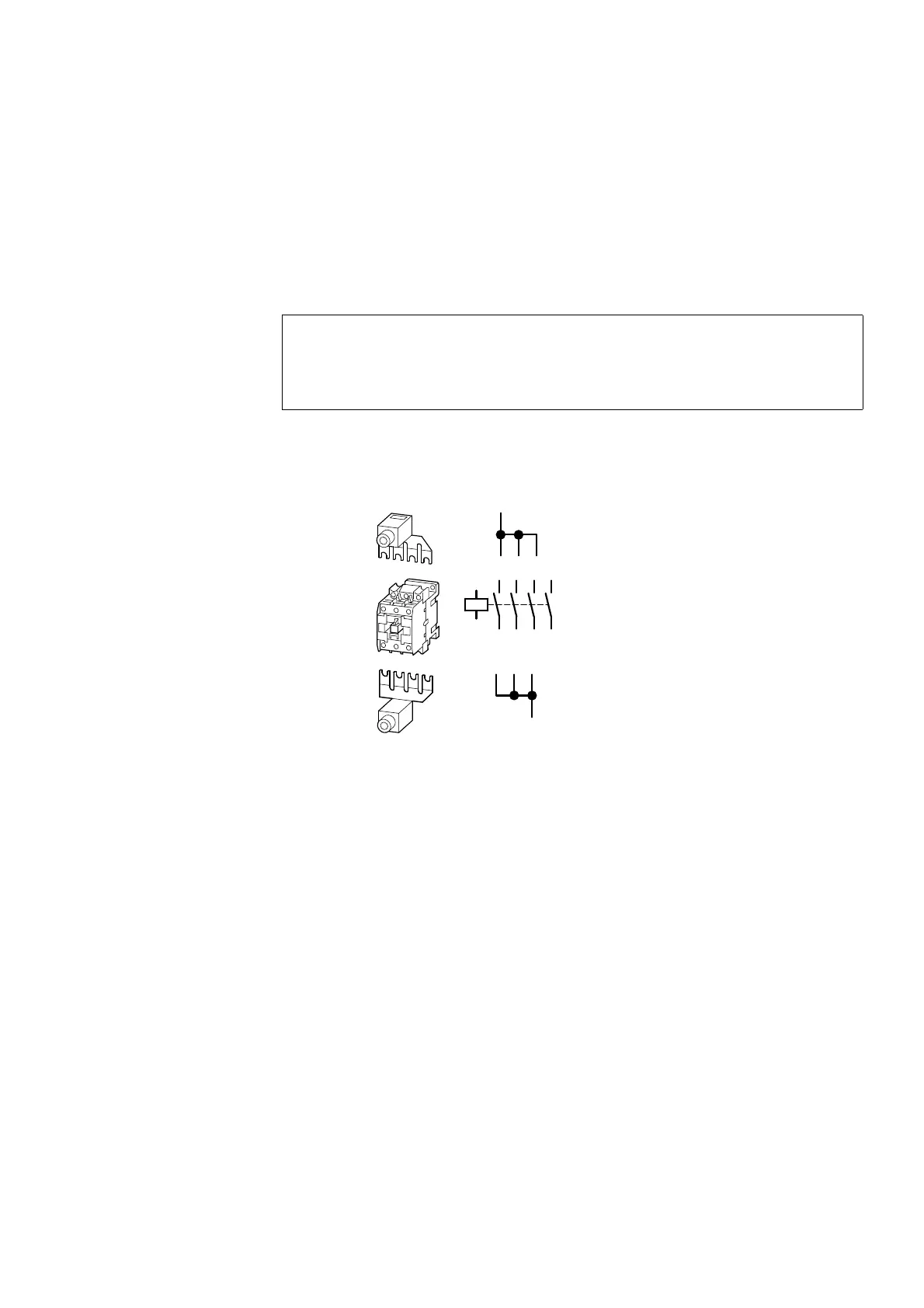

Figure 91: Mains contactor at single-phase connection
￫
The mains contactors shown here allow for the input-side rated
operating current I
LN
of the frequency inverter without a main
choke. The selection is based on the free air thermal current 
I
th
= I
e
(AC-1) at the stated ambient temperature.
NOTICE
The inching operation is not permissible via the mains contactor
(Pause time  60 s between switching off and on).
￫
Technical data on the mains contactors can be found in the main
catalog HPL, Contactors DILEM and DILM7.
