9 Appendix
9.9 Sinusoidal filter
184 DC1 Frequency Inverter 10/12 MN04020003Z-EN www.eaton.com
9.9 Sinusoidal filter

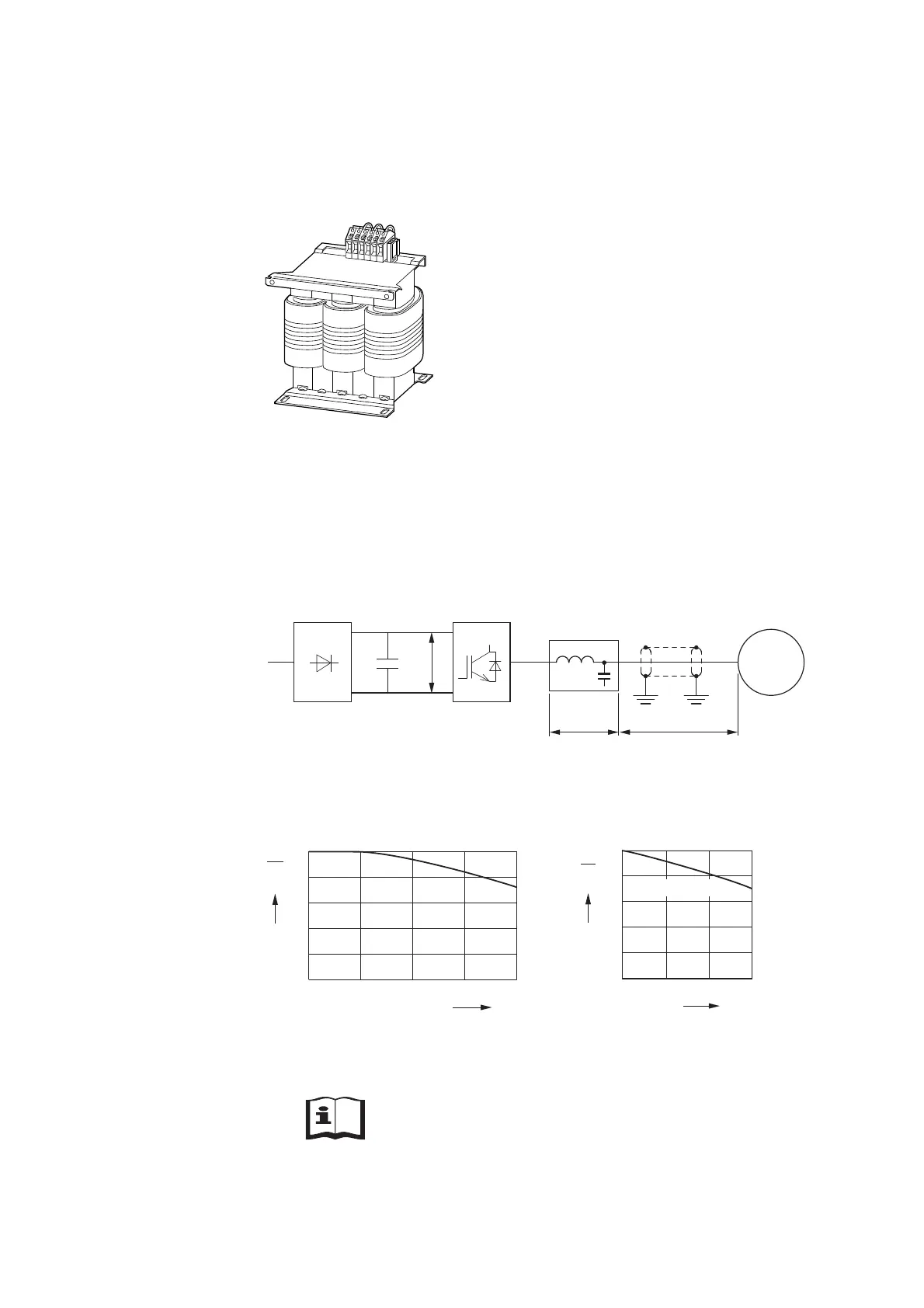

Figure 96: Sinusoidal filter DX-SIN3…
The DX-SIN3… sinusoidal filter removes high-frequency components from
the frequency inverter’s output voltage (U
2
). This reduces conducted and
radiated interference. The sinusoidal filter’s output voltage has a sine wave
shape with a small superimposed ripple voltage.
The sinusoidal voltage’s total harmonic distortion is typically 5 to 10 %.
This reduces noise and losses in the motor.
Figure 97: Maximum permissible motor cable lengths
a Screened motor cable: U
2
≦ 230 V → ≦ 200 m (656.17 ft); U
2
≦ 500 V → ≦ 150 m (492.13 ft)
Unscreened motor cable: U
2
≦ 230 V → ≦ 300 m (924.25 ft); U
2
≦ 500 V → ≦ 200 m (656.17 ft
Figure 98: Derating values for deviating installation altitudes and ambient
air temperatures
For more information and technical data regarding
DX-SIN3… series sinusoidal filters, please consult
instructional leaflet IL00906001Z.
M
3 ~
DX-SIN3...
U
max
f
PWM
f
2
U2
l
e
u
k
l
①
L
0
0.5
0.6
0.7
0.8
0.9
1.0
1000 2000 3000 4000
h [m]
I
I
e
40
0.5
0.6
0.7
0.8
0.9
1.0
45 50 55
Iso. class F
ta [°C]
I
I
e
a
