3 Installation
3.2 Mounting
DC1 Frequency Inverter 10/12 MN04020003Z-EN www.eaton.com 55
3.2.4 Fixing
The frequency inverters in frame sizes FS1, FS2 and FS3 can be screw fas-
tened or fastened on a mounting rail.
3.2.4.1 Fixing with screws

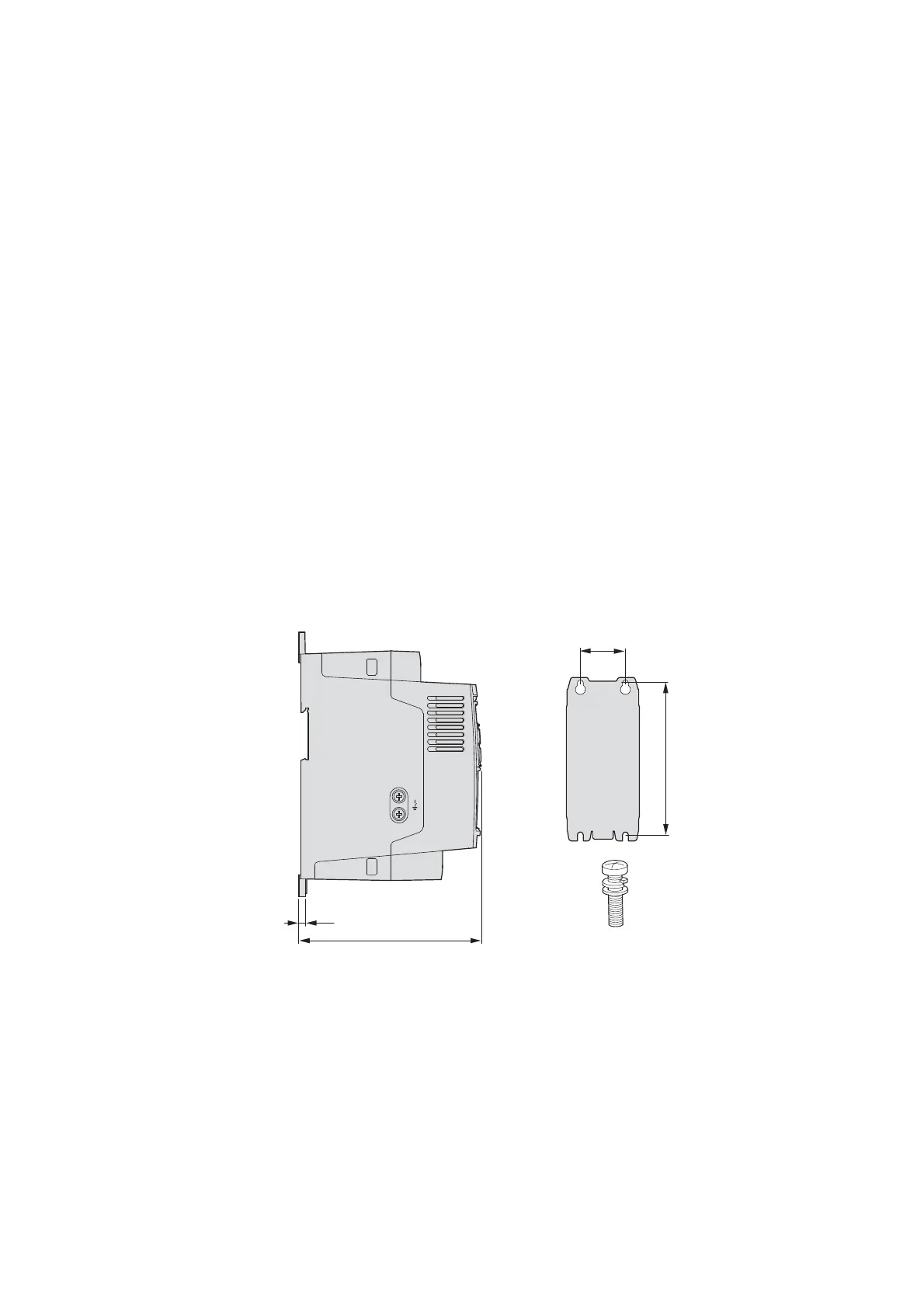

Figure 29: Mounting dimensions
￫
Install the frequency inverter only on a nonflammable mounting
base (e.g., on a metal plate).
￫
Dimension and weight specifications for the DC1 frequency
inverter can be found in the appendix ( Page 167).
￫
The number and the arrangement of the required fixing dimen-
sions are found in Section 9.2, “Dimensions and frame
size“, page 170.
￫
Use screws with a washer and split washer with the permissi-
ble tightening torque in order to protect the enclosure and safely
and reliably mount the device.
c
c1
VAR
EMC
