3 Installation
3.2 Mounting
56 DC1 Frequency Inverter 10/12 MN04020003Z-EN www.eaton.com

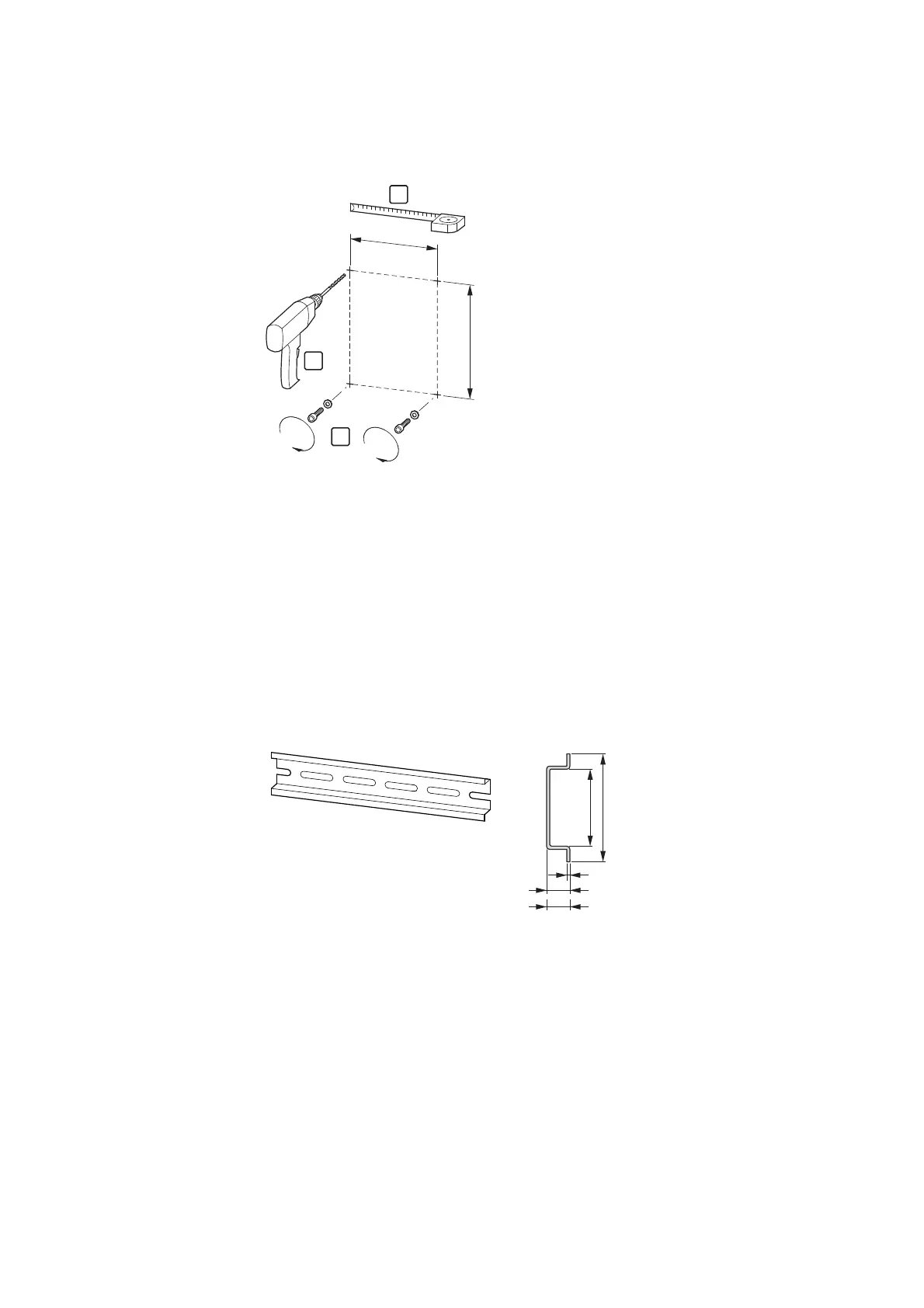

Figure 30: Mounting preparation
First fit the screws at the specified positions, mount the frequency
inverter and then fully tighten all screws.
3.2.4.2 Fixing on mounting rails
As an alternative to screw fixing, DC1 frequency inverters with sizes FS1,
FS2, and FS3 can also be mounted on a mounting rail as per IEC/EN 60715.
Figure 31: Mounting rail conforming with IEC/EN 60715
To do this, place the frequency inverter on the mounting rail from above
[1] and press it down until it snaps into place [2].
￫
The permitted maximum tightening torque for the fixing screws
is 1.3 Nm.
