10/10 MN05003003Z-EN
Memory card, CAN/easyNet, PC
connection
27
Memory card, CAN/easyNet, PC connection
To fit a memory card or establish a CAN/easyNet or PC connection,
the protective cap must be removed first of all.
Fitting or removing the memory card
The memory card is located in adapter c.
X To fit the memory card, press it until it snaps into position.
X To remove the memory card, press it until it is released.
CAN/easyNet, PC connection
X Fit the plug for the CAN/easyNet connection into the opening at
the top of the device a.
X Fit the plug for the PC connection in the opening on the bottom
right on device b.

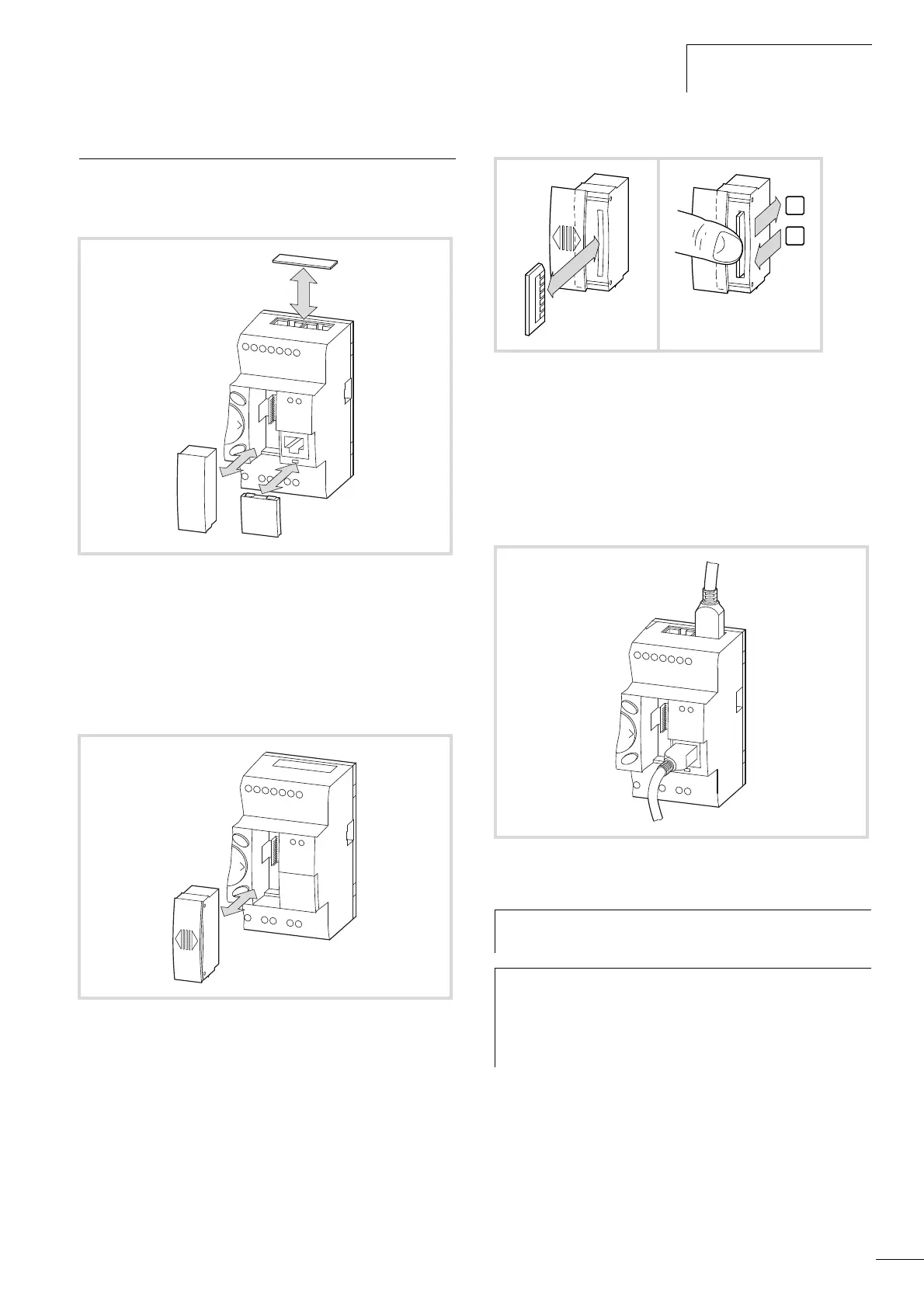

Figure 29: Removing the protective cap/adapter:
top: for CAN/easyNet connection
bottom left: adapter for memory card
bottom right: PC connection
Figure 30: Adapter with memory card
c
Figure 31: Fitting/removing the memory card
Figure 32: Plugs for CAN/easyNet connection a and the PC
connection b
h
For further information a section “Network
CAN/easyNet”, page 93.
h
Caution!
Protect the EC4-200 and memory card from electrostatic
discharge in the following manner: Discharge yourself of
electrostatic charge by touching a grounded surface
before fitting or removing the memory card.
1
2
b
a
