Configuration of the
inputs/outputs (I/O)
10/10 MN05003003Z-EN
40
The submenu will appear:
X Select a counter type, such as 32-bit counter.
X No Counter will then be replaced by “32 Bit Counter”.
X Clicking the plus sign will display the inputs and outputs of the
counter.
Displaying the inputs/outputs of the expansion devices
X Click the “+” sign in front of the folder “Extension”.
X Right-click the “No Extension” folder
X Select a device from the Replace element menu.
X Click the plus sign in front of the new device folder in order to
display the inputs and outputs, including the diagnostics inputs.

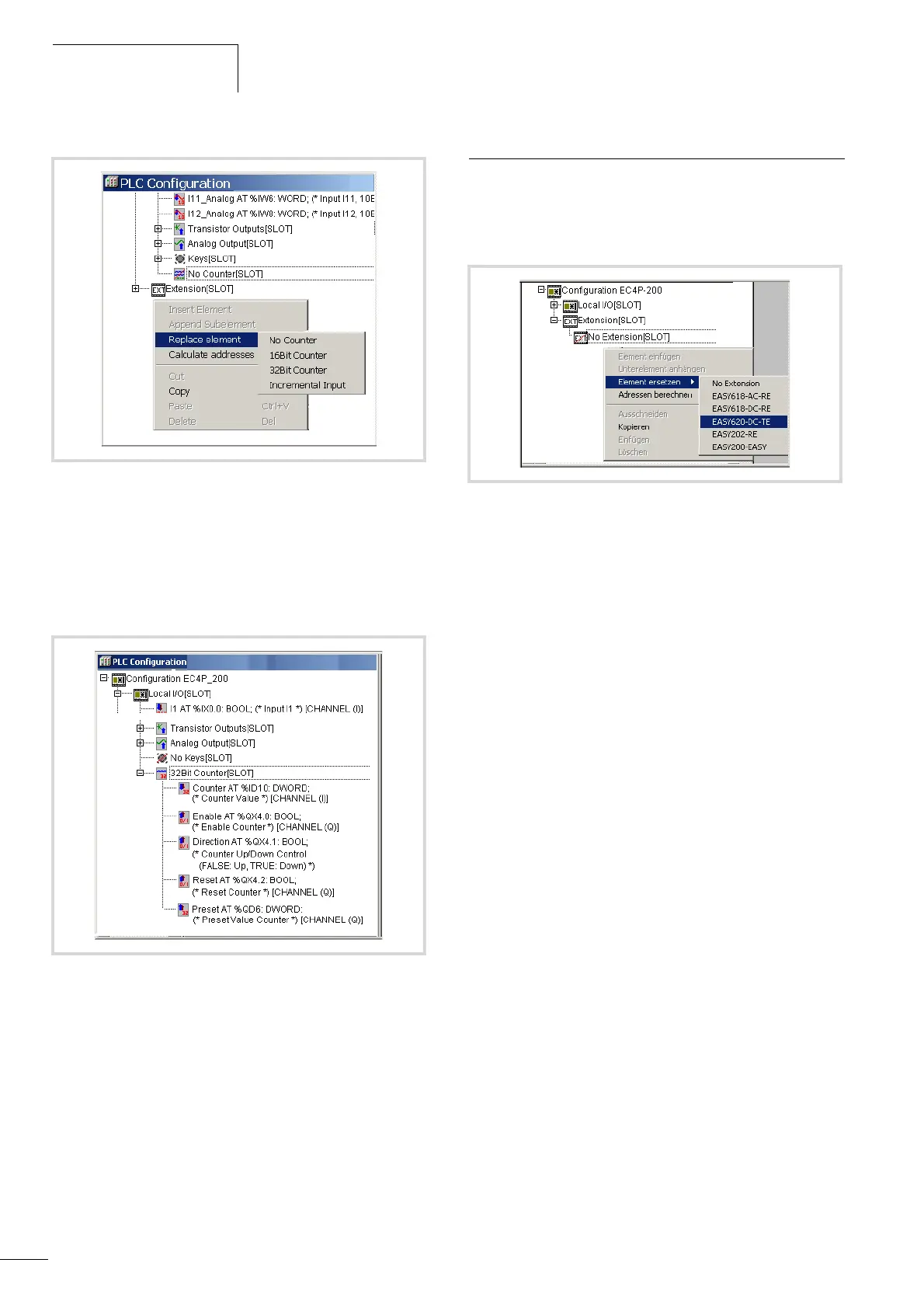

Figure 36: Selecting counters
Figure 37: Configuring a counter (32-bit)
Figure 38: Selecting the expansion device
