10/10 MN05003003Z-EN
Download/update operating
system
57
X In this window click the Exit button.
Transferring the OS from PC to the memory card
Loading an OS onto the memory card will delete the existing OS
and the boot project on the memory card as well as the user
program in the controller. This is carried out in the same way as
described in section “Transferring the operating system from the
PC to the PLC”. However, in this case you click the Transfer to
MMC button,
a figure 64 on page 56.
Transferring the OS from the memory card to the
controller
X Fit the memory card into the controller when it is switched off.
X Switch on the PLC.
The OS of the PLC is updated during the switch on process and a
boot project is loaded into the PLC. The transfer can take more
than 30 seconds as the CPU must be booted several times.

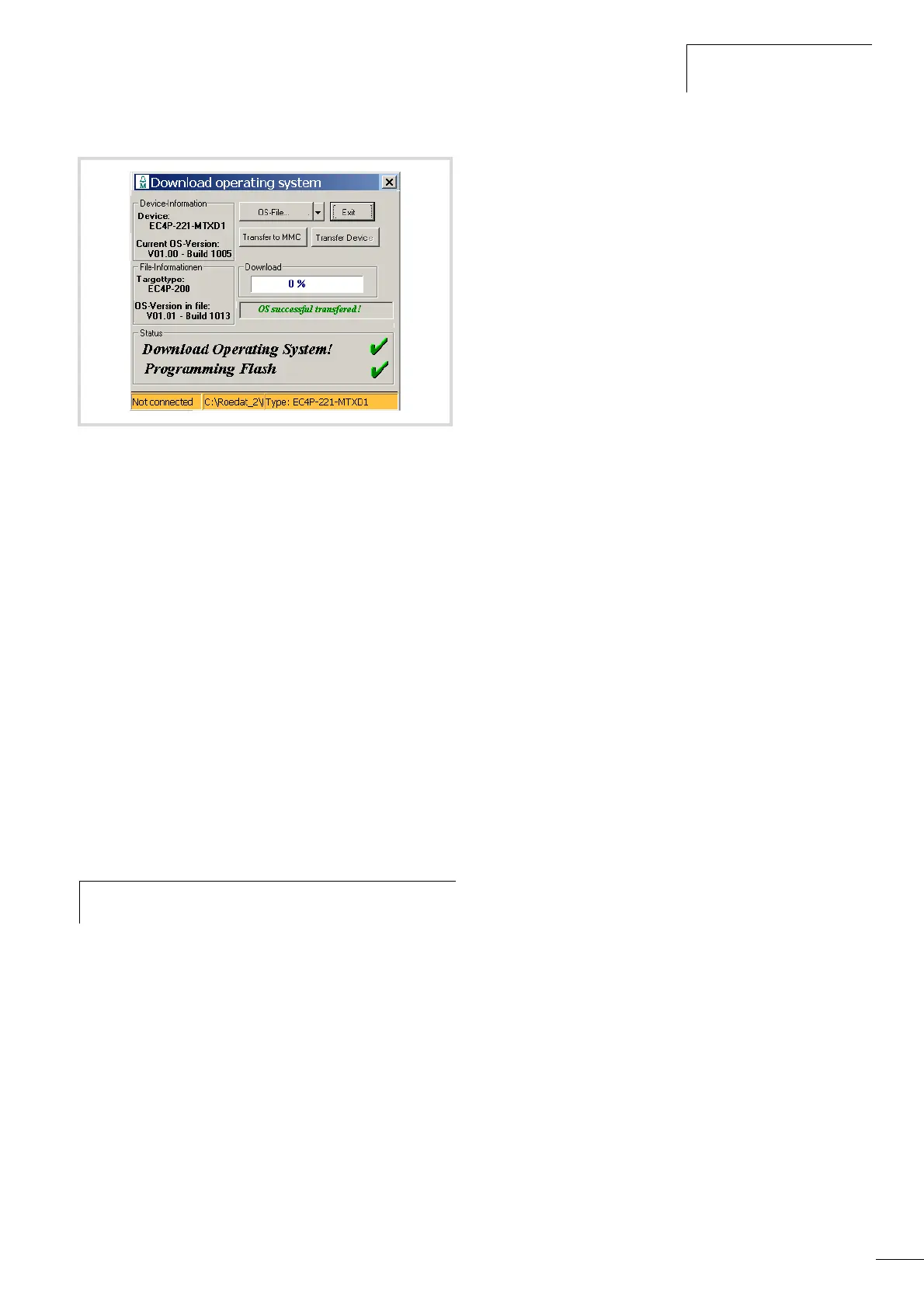

Figure 67: OS successfully transferred to the PLC
h
Do not interrupt the process, e.g. by switching off the
supply voltage!
