Eaton easyControl EC4-200 User Manual

10/10 MN05003003Z-EN
95

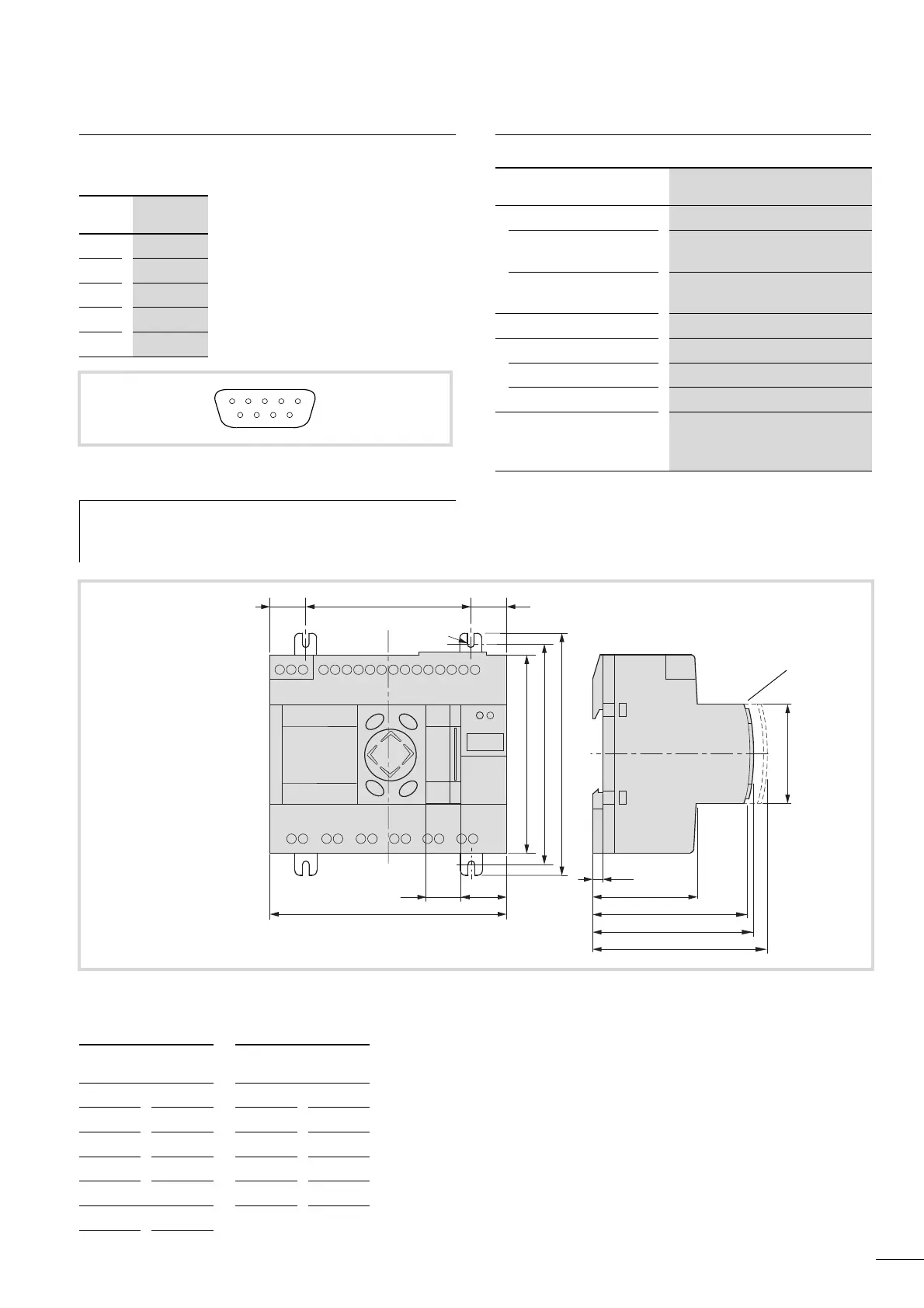

easy800-PC-CAB connection cable
9-pole socket connector on the cable (Terminal/PC plug)
Dimensions and weight
Table 24: Dimensions in inches
Pin
Signal
2 RxD
3
TxD
4
DTR
5
GND
7
RTS
Figure 114: 9-pole socket connector
h
The RTS signal must be set for the cable to function as the
voltage on the RTS cable supplies the components in the
plug.
34125
8967
Dimensions W x H x D
[mm]
with adapter for MMC
107.5 x 90 x 72
107.5 x 90 x 79
[inches]
with adapter for MMC
4.23 x 3.54 x 2.84
4.23 x 3.54 x 3.11
Space units (SU) width
6
Weight
[g] 320
[lb]
0.705
Mounting
Top-hat rail to DIN 50022, 35 mm or
screw mounting with 3 ZB4-101-GF1
mounting feet
Figure 115: Dimensions in mm (specified in inches a table 24)
90
102
110
M4
107.5
16 21
75 16.2516.25
48.5
4.5
79
45
70.5
72
EU4A-MEM-CARD1
mm inches mm inches
4.5 0.177 79 3.11
16.25 0.64 90 3.54
48.5 1.91 102 4.01
70.5 2.78 107.5 4.23
72 2.83 110 4.33
75 2.95
