Eaton easyControl EC4-200 User Manual

Operation
10/10 MN05003003Z-EN
32

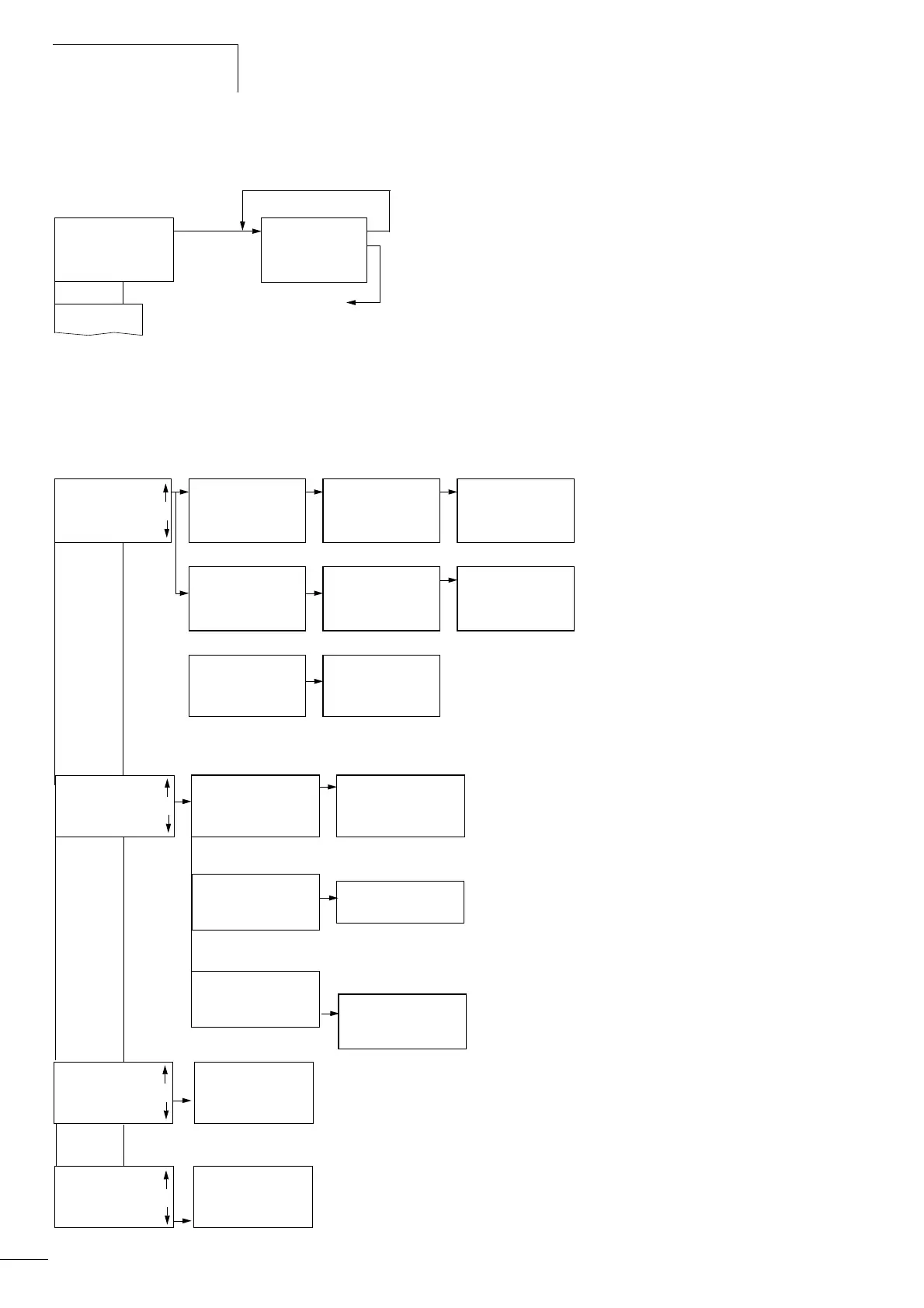

Main menu with password protection
System menu
X The System menu is accessed by simultaneously pressing DEL
and ALT.
Password
Password entry
PASSWORD…
STOP RUN å
SET CLOCK…
INFORMATION
Main menu
PASSWORD…
RUN
Correct entry
Status display
Incorrect entry
PROGRAMM å
CLOCK
OPERATING MODE
ENTER PASSWORD
------
System menu
CHANGE PW
ACTIVATE PW
Password entry
Change/
delete
password
SECURITY...
SYSTEM…
STARTPARAMETER
MENU LANGUAGE
Password setup
PASSWORD…
RANGE…
ENTER PASSWORD
------
ENTER PASSWORD
000000
ENTER PASSWORD
000000
PASSWORD…
RANGE…
DELETE ALL?
RESTART…
DISPLAY…
FACTORY SET
SECURITY…
SYSTEM…
STARTPARAMETER
MENU LANGUAGE...
HALT å
RESET WARM
RESET COLD
RESTART
DISPLAY
FACTORY SET
RESTART
DISPLAY
FACTORY SET
CONTRAST: 0
LIGHTING å
Setting is valid until the next
program download
Program + boot project are deleted!
a section “Restoring factory settings (factory set)”,
page 44.
SECURITY…
SYSTEM…
STARTPARAMETER
MENU LANGUAGE
IN
TO BE
DEFINED
ENGLISH
DEUTSCH å
SECURITY…
SYSTEM…
STARTPARAMETER
MENU LANGUAGE
