10/10 MN05003003Z-EN
87
17 EC4-200 network modules
The EASY205-ASI, EASY221-CO, EASY204-DP, EASY222-DN
network interfaces enable you to connect the EC4-200 as a slave
to ASI, CAN, PROFIBUS-DP or DeviceNet (a table 18) networks.
The controller can also be integrated as a station in an easyNet
network.
The type of data exchange between master and network interfaces
is shown in table 18.
Table 18: Overview of network interfaces
Table 19: Manuals on the network modules
EASY205-ASI
Cyclic data exchange
The master sends 4 bits to the EASY200-ASI network module
connected to the EC205-8: 4 bits of output data and 4 parameter
bits. It receives 4 bits of input data from the EC200-4.
Table 20: Input/output data of the EC4-200

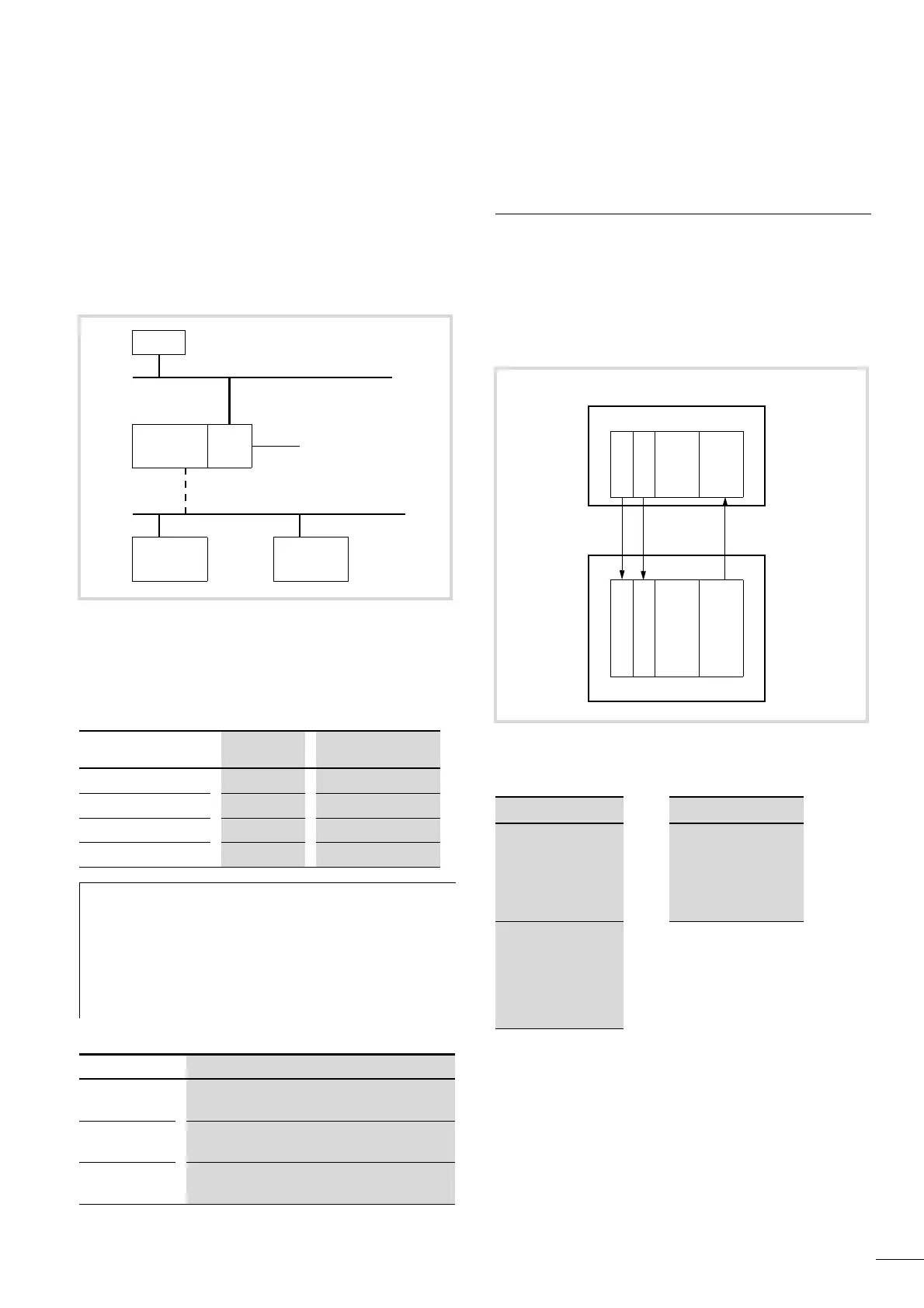

Figure 102: EC4-200 wih network connection
Network connection
Network Data exchange
EASY205-ASI ASi cyclic
EASY204-DP
PROFIBUS-DP Cyclic + acyclic
EASY221-CO
CANopen Cyclic + acyclic
EASY222-DN
DeviceNet Cyclic + acyclic
h
The network modules in conjunction with the easy800 are
described in detail in separate manuals (a table 19).
These manuals also apply to the EC4-200 connected to
the network modules since this controller operates exactly
like the easy800. The following sections on the individual
network modules therefore only cover the differences
between them and any particular procedures.
Part no.
Manual (MN; previously AWB)
EASY204-DP
MN05013005Z-EN
(previously AWB2528-1401GB)
EASY221-CO
MN05013008Z-EN
(previously AWB2528-1479GB)
EASY222-DN
MN05013007Z-EN
(previously AWB2528-1427GB)
Master
EASY205-ASI
EASY240-DP
EASY221-CO
EASY222-DN
EC4-200
easyNet
EASY8… EASY8…
Figure 103: Cyclic data exchange of the EASY205-ASI
Master a EC4 EC4 a Master
Master outputs
Q0 l R1
EC4 inputs
EC4 outputs
S1 l I0
Master inputs
Q1 l R2 S2 l I1
Q2 l R3 S3 l I2
Q3 l R4 S4 l I3
Master parameters
P0 l R5
EC4 inputs
P1 l R6
P2 l R7
P3 l R8
Master
ASi
Outputs
Parameter
Inputs
Slave
EASY205-ASI
Inputs R1 … R4
Inputs R5 … R8
Outputs S1 …
S4
EC4-200
