TRSM0950 Installation | Main Shaft and Countershaft Installation
Main Shaft and Countershaft Installation
Special Instructions
None
Special Tools
• Upper Countershaft Pilot Tool (RR1071TR)
• Lower Countershaft Pilot Tool (RR1072TR)
• Transmission Assembly Lube (Assemblee Goo™ -
Firm Tack Green #19250 or equivalent)

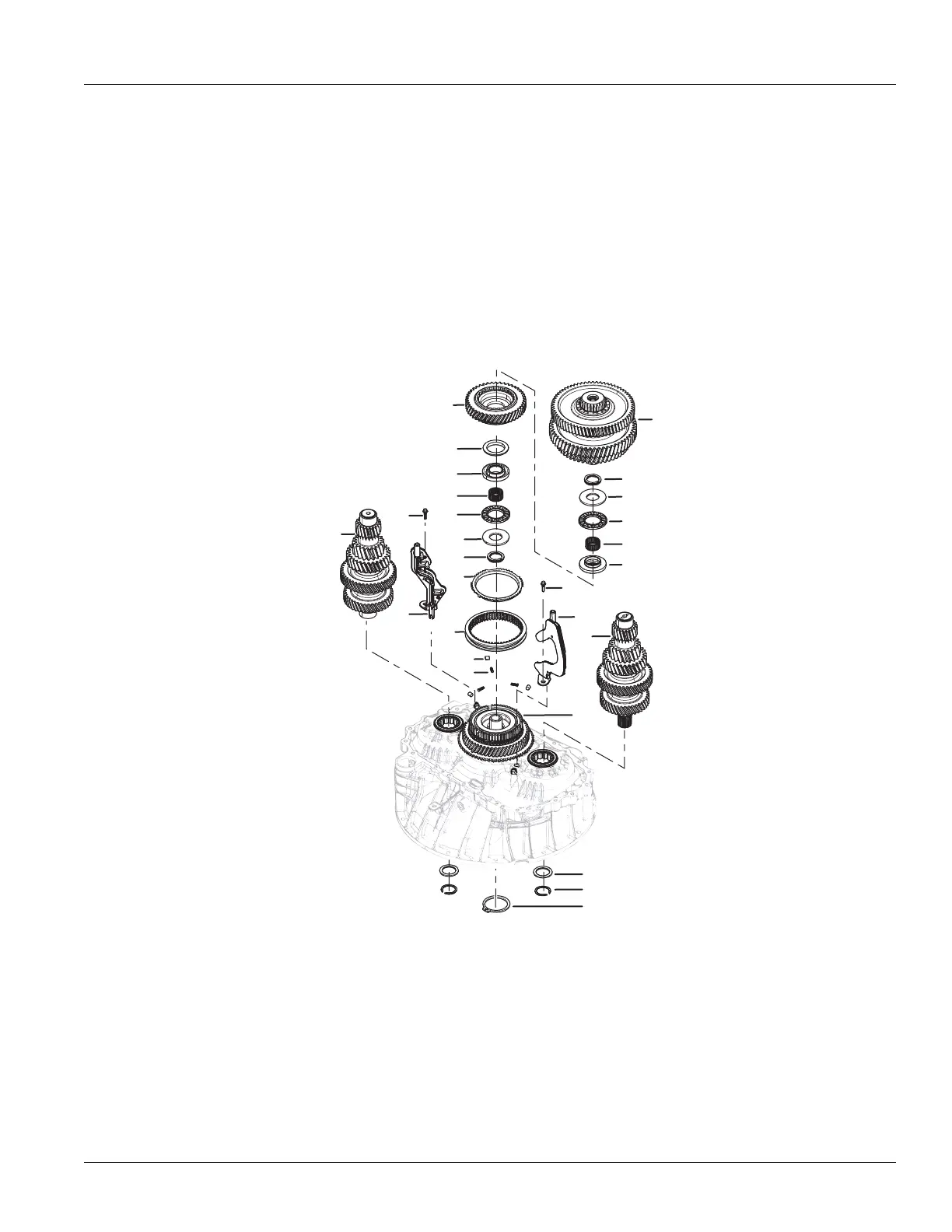

Component Identification
1. Primary Drive Gear
2. Spherical Washer - Front
3. Bearing Race - Front
4. Needle Bearing - Front
5. Thrust Bearing - Front
6. Thrust Washer - Front
7. Wave Spring - Front
8. Synchronizer Ring
9. Synchronizer Sliding Sleeve
10. Synchronizer Rollers (x3)
11. Synchronizer Springs and Plungers (x3)
12. Lower Lube Tube Cap Screw - 8 mm
13. Lower Lube Tube
14. Upper Countershaft
15. Main Shaft Assembly
16. Wave Spring - Rear
17. Thrust Washer - Rear
18. Thrust Bearing - Rear
19. Needle Bearing - Rear
20. Bearing Race - Rear
21. Upper Lube Tube Cap Screw - 8 mm
22. Upper Lube Tube
23, Lower Countershaft
24. Input Shaft Assembly
25. Countershaft Flat Washers (x2)
26. Countershaft Snap Rings (x2)
27. Input Shaft Snap Ring
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
20
21
22
19
13
23
24
25
26
27
