TRSM0950 Disassembly/Assembly | Main Housing Disassembly/Assembly
Main Housing Disassembly/Assembly
Special Instructions
None
Special Tools
• Countershaft Bearing Installer (RR1076TR)
• Main Shaft Bearing Installer (RR1077TR)
• Input Shaft Bearing Removal and Installation Tool
(RR1075TR)
• Universal Driver Handle (OE8044-T0)
Note: Universal Driver Handle OE8044-T0 is part of
Overhaul Tool Kit (RR2012TR) and may have already
been purchased to support prior transmission models.

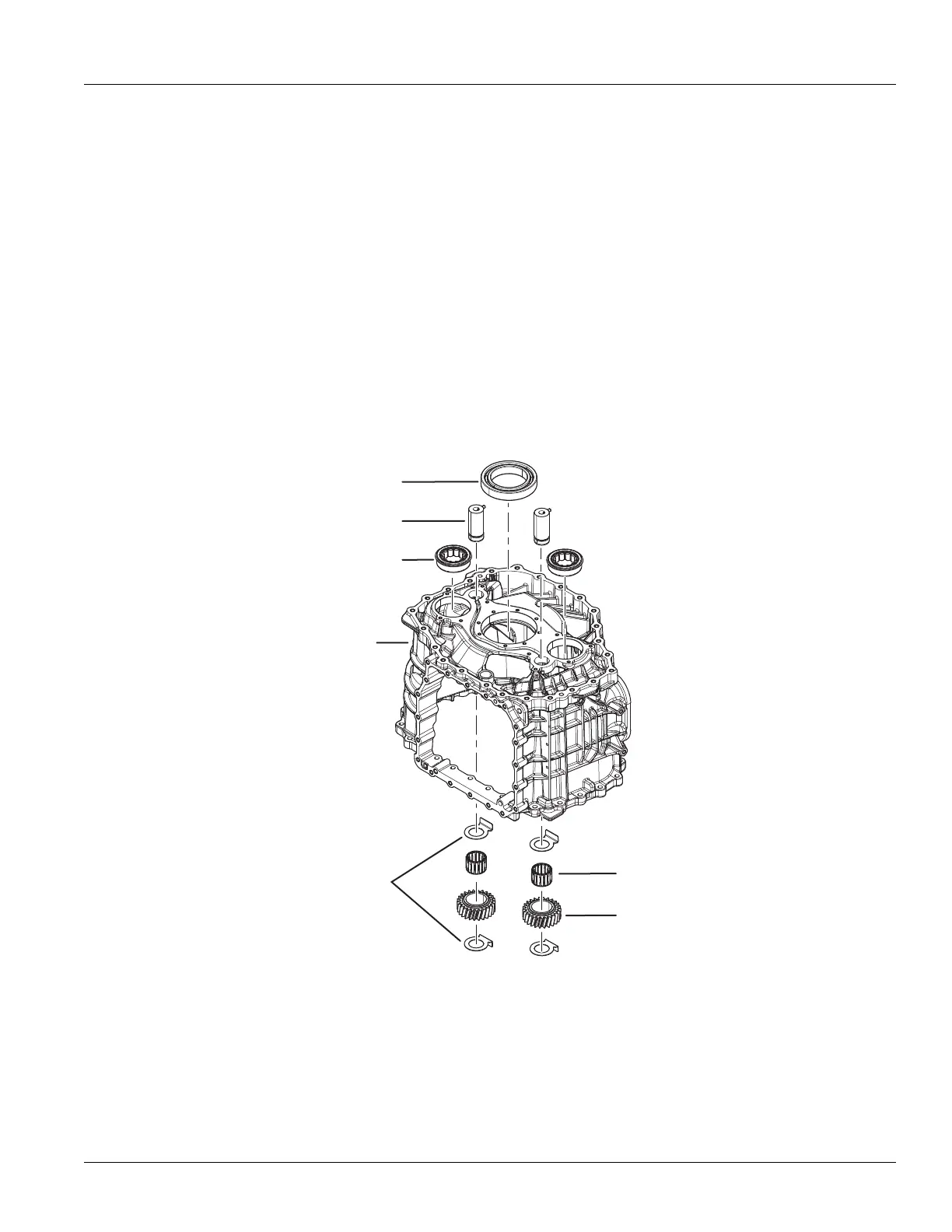

Component Identification
1. Main Shaft Bearing
2. Reverse Idler Gear Shaft (x2)
3. Rear Countershaft Bearings (x2)
4. Main Housing
5. Reverse Idler Gear Thrust Washers (x2)
6. Reverse Idler Gear Needle Bearings (x2)
7. Reverse Idler Gear (x2)
1
2
3
5
6
7
4
