Input Shaft Disassembly/Assembly using Input Shaft Press (RR1085TR)
Special Instructions
The input shaft is required to be pressed in and out of the
clutch housing. Input Shaft Press (RR1085TR) can be pur-
chased if the clutch housing does not
properly fit the avail-
able press.
Special Tools
• Input Shaft Press (RR1085TR)
• Input Shaft Cup (RR1087TR-6)
• Front Bearing Capture Plate (RR1085TR-7)
• Input Shaft Bearing Removal and Installation To
ol
(RR10
75TR)
• Input Bearing Driver (RR1049TR)
• 4 (2 inch 7/16 inch Grade 8 or 50.8 mm M
12 Grade
10.9) cap
screws, washers and nuts

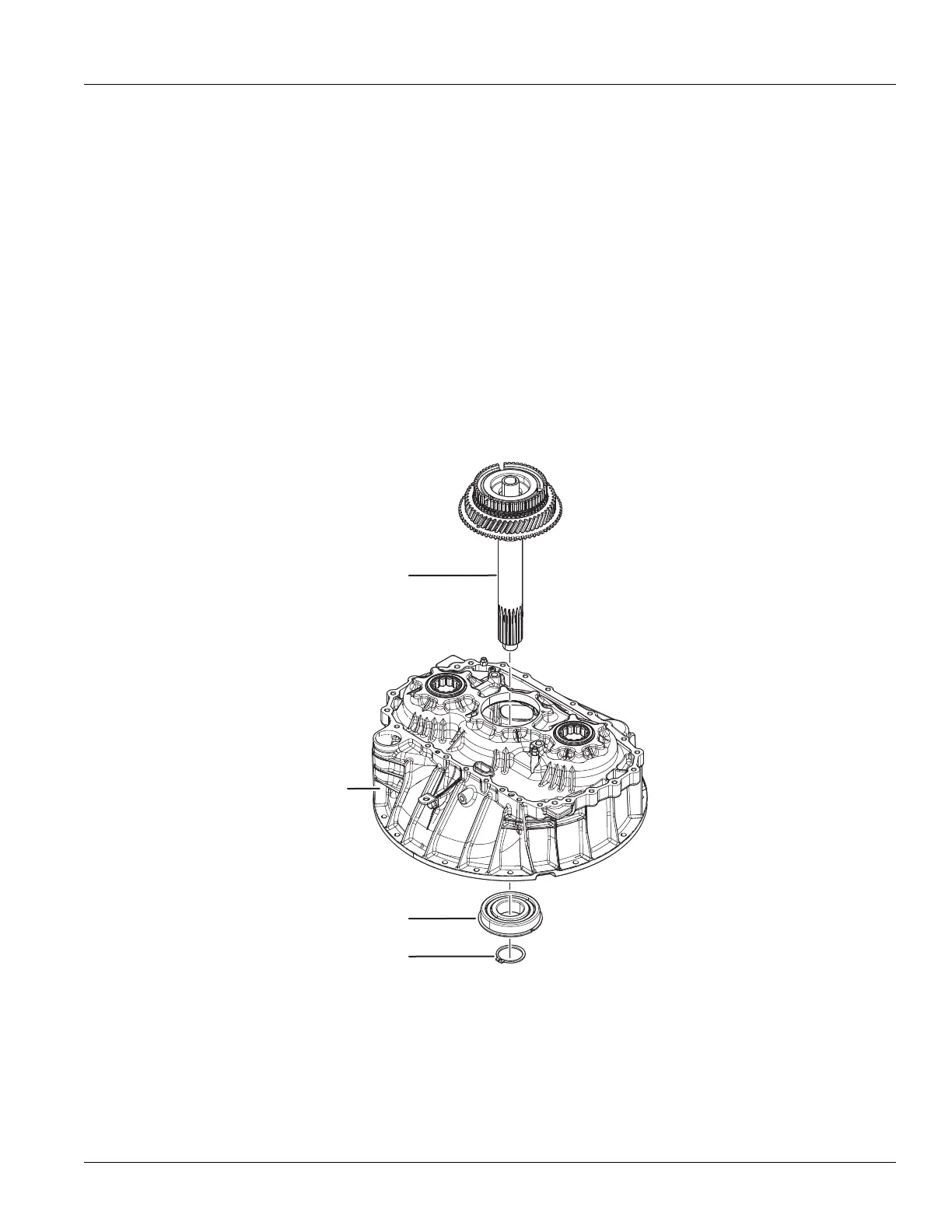

Component Identification
1. Input Shaft Assembly
2.
Clutch Housing
3. Input Shaft Bearing
4. Input Shaft Snap Ring
1
2
3
4
