Firmware V7.16.x
16.05.2023
179/183
12.2.2

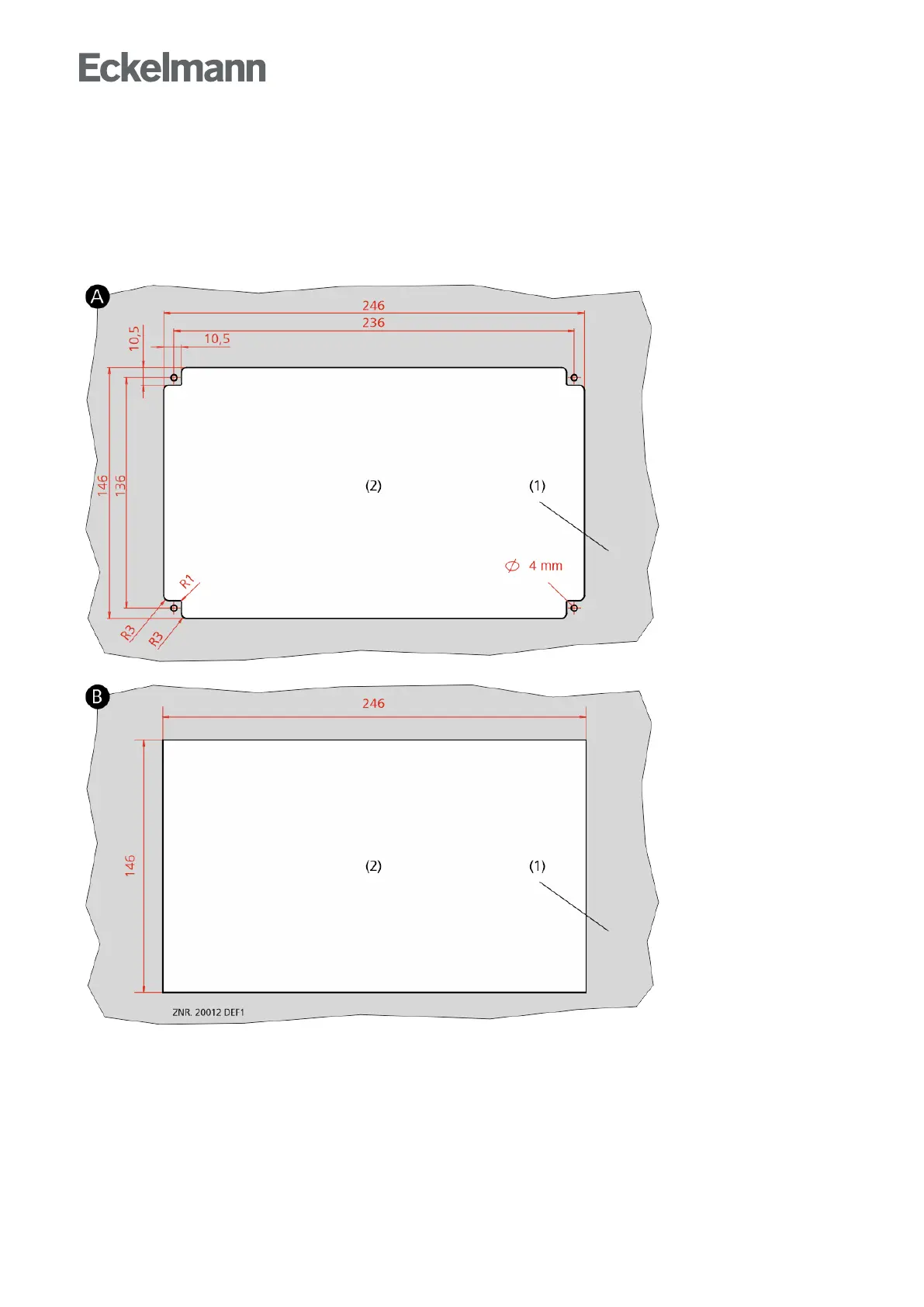

Control panel cut-out
V
ariant A:
T
echnically most attractive solution with somewhat complex manufacture of the panel cut-out and
the 4 x 4 mm holes
V
ariant B:
The rectangular panel cut-out can be realised quickly with a jigsaw
, e.g. during commissioning /
service; however a mounting frame is needed for installation; see chapter
Einbaurahmen zur
Schalttafelmontage.
178
180
Table of Contents
Table of Contents
3
Conventions
7
Warning Signs, Symbols and Text Formatting Used in this Manual
7
Explanation of Text Formatting
8
Safety Information
9
Exclusion of Liability for Non-Observance
10
Requirements for the Personnel
10
Intended Use
11
Five Safety Rules According to DGUV Regulation 3
11
Electrostatic-Sensitive Components and Control Components (ESD)
12
ESD - Guidelines for Handling
12
Abbreviations Used
12
System Centre System Design
13
Application
13
Upgrade Scenarios
16
Connections in the Complete Design
16
Communication Interfaces
18
Version Dependencies for Other E*LDS Components
19
System Centre Functions
20
Tasks and Functions
20
Expansion Stages of the Virtus 5 Series
21
Function of System Centre
23
Starting Characteristics
23
First Start - Reset System
23
Restart - Restart of the Controller
23
Configuration of the E*LDS System Using the Ldswin PC Software
24
CAN Bus Station Monitoring
25
Alarm Suppression During Manual Shutdown of Case Controllers
26
Modbus Station Monitoring
26
Integration of Case Controllers of the E*LDS System
27
Integration of External Controllers
28
Digital Inputs
29
Alarm and Message Inputs
30
Special Inputs
31
Relay Outputs
32
Alarm Relays PRIO1 / PRIO2
33
Multi-Function Relay aux
34
Relay Outputs for Week Timers
35
M-Bus Interface for Consumption Data Capture
36
Alarms and Messages
37
Explanation of Terms for "Alarms and Messages
39
Acknowledgement of Alarms and Messages
39
Priority Concept
40
Remote Alarm Signalling
41
EASY Alarm Destinations 1
41
Extended Alarm Destinations 4
42
Automatic Transmission of Alarms Via Pushover
44
Automatic Transmission of Alarms Via E-Mail
44
Automatic Transmission of Alarms Via GSM Modem
45
Service Mode
46
Energy Management
47
Load Shedding Manager (LSM)
47
Calculation of Consumption / Power from Meter Values
49
EU Archives (HACCP)
51
24H List
52
System Centre Installation and Start-Up
53
Installation
53
DIP Switches
55
Handling Wide COMBICON Connector
56
Handling of the Spring Terminals
57
DIN Rail Mounting - SIOX Extension Module
58
SIOX - Connection to the System Centre
59
CAN Bus - Connection of E*LDS Components
60
Modbus Connection of Case Controllers
62
M-Bus - Connection of Gateways
63
Status Leds of the M-Bus Gateway
63
GSM Modem
64
Modem Hardware Reset
65
SMS Text Message Transmission Via a GSM Modem
66
FAX Transmission Via ISDN Modem
66
COM Port Server
66
Switching on System Centre
67
Configuration of the E*LDS System Using Service PC on Site
68
Status Leds Ethernet
69
Special Function for Commissioning
69
Care Instructions for Front Panel and Touch Screen
69
Battery Replacement
70
Firmware Update
72
Performing Firmware Update
73
System Centre and SIOX Connection / Terminal Assignment
75
System Centre Terminal Diagram
75
Terminal Assignment of the 230 V AC Power Supply
76
Terminal Assignment of the 230 V AC Digital Inputs
77
Terminal Assignment of the 230 V Relay Outputs
78
Terminal Assignment of the CAN Bus Terminals
79
Terminal Assignment of the SIOX Interfaces
80
Terminal Assignment of the COM3 / Modbus Terminals (RS485)
81
Terminal Assignment of Communication Interfaces
82
SIOX Extension Module Terminal Diagram
84
SIOX - Terminal Assignment of the Interfaces
85
SIOX - Terminal Assignment of the 230 V AC Relay Outputs
86
SIOX - Terminal Assignment of the 230 V AC Digital Inputs
88
SIOX - Connection of Energy, Gas, Water and Event Meters
90
Operation and Access to the System Centre
92
Menus of the System Centre
94
On-Site at the Device
94
Layout of the Touch Screen
94
Status Bar and Quick Info
95
Main Menu and Central Controls
96
Navigation and Other
99
Login to the System Centre (Unlocking)
100
Service Mode - Suppression of Remote Alarm Signalling
102
Remote Control of E*LDS Components (Terminal Mode)
103
Operation in Terminal Mode
104
Specification of the Numbering of Menus and Entry Screens
106
Overview of the Menu Tree
107
Main Menu
109
Remote
161
Remote Control Via Virtus Control Desk (VCD)
162
Remote Operation of the System Centre Using VNC (Virtual Network Computing)
165
Decommissioning and Disposal
167
Decommissioning / Demounting
167
Disposal
167
System Centre Alarms and Messages
168
