Firmware V7.16.x
16.05.2023
55/183
•
•
6.1.1
DIP Switches
Default settings of the DIP switches

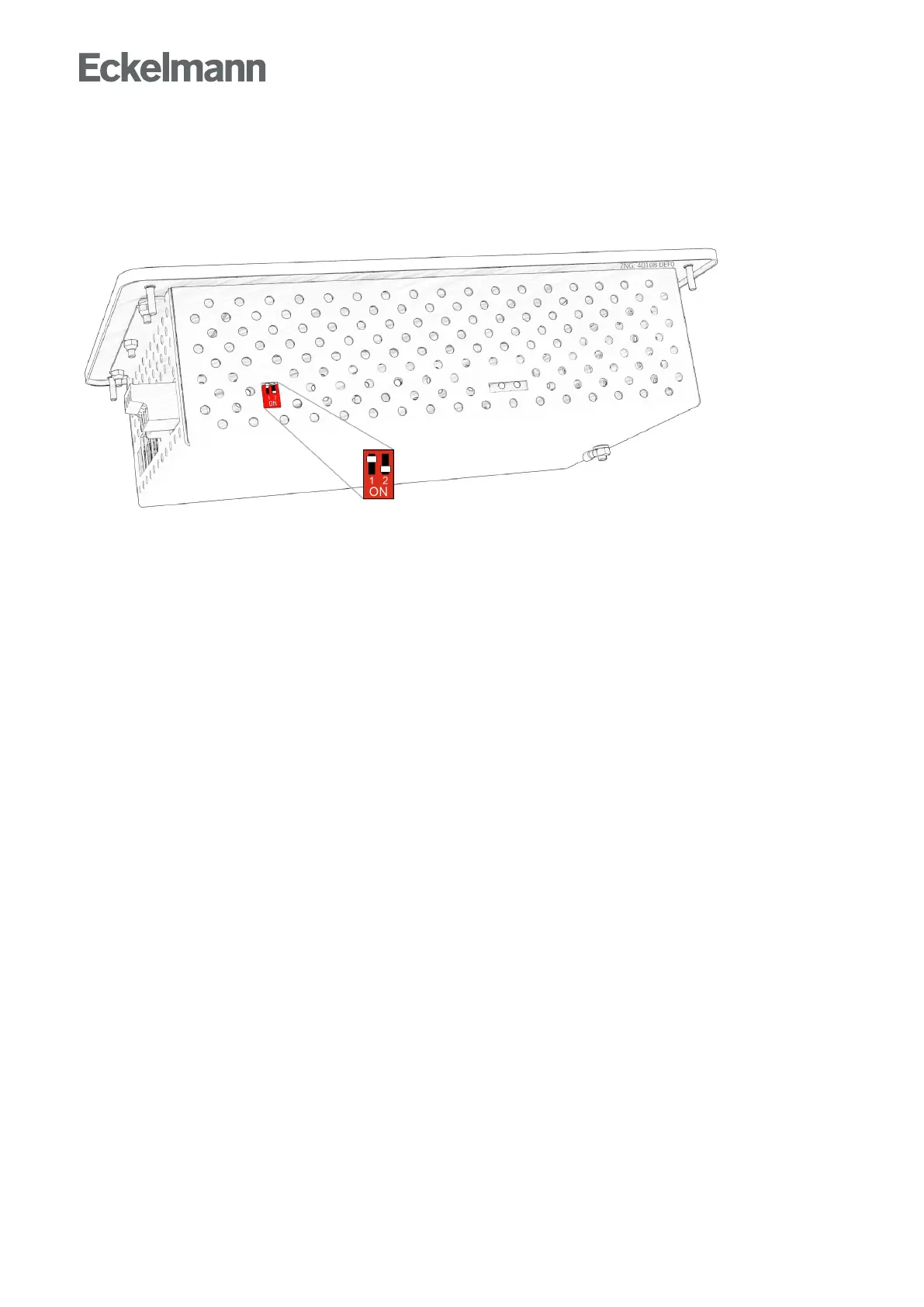

The boot modus DIP switches are located on the top side of the system centre housing and
must
be set as
follows for normal operation:
DIP switch 1
:
MUST
alwaysbesettoOFF
DIP switch 2
:
MUST
alwaysbesettoON
54
