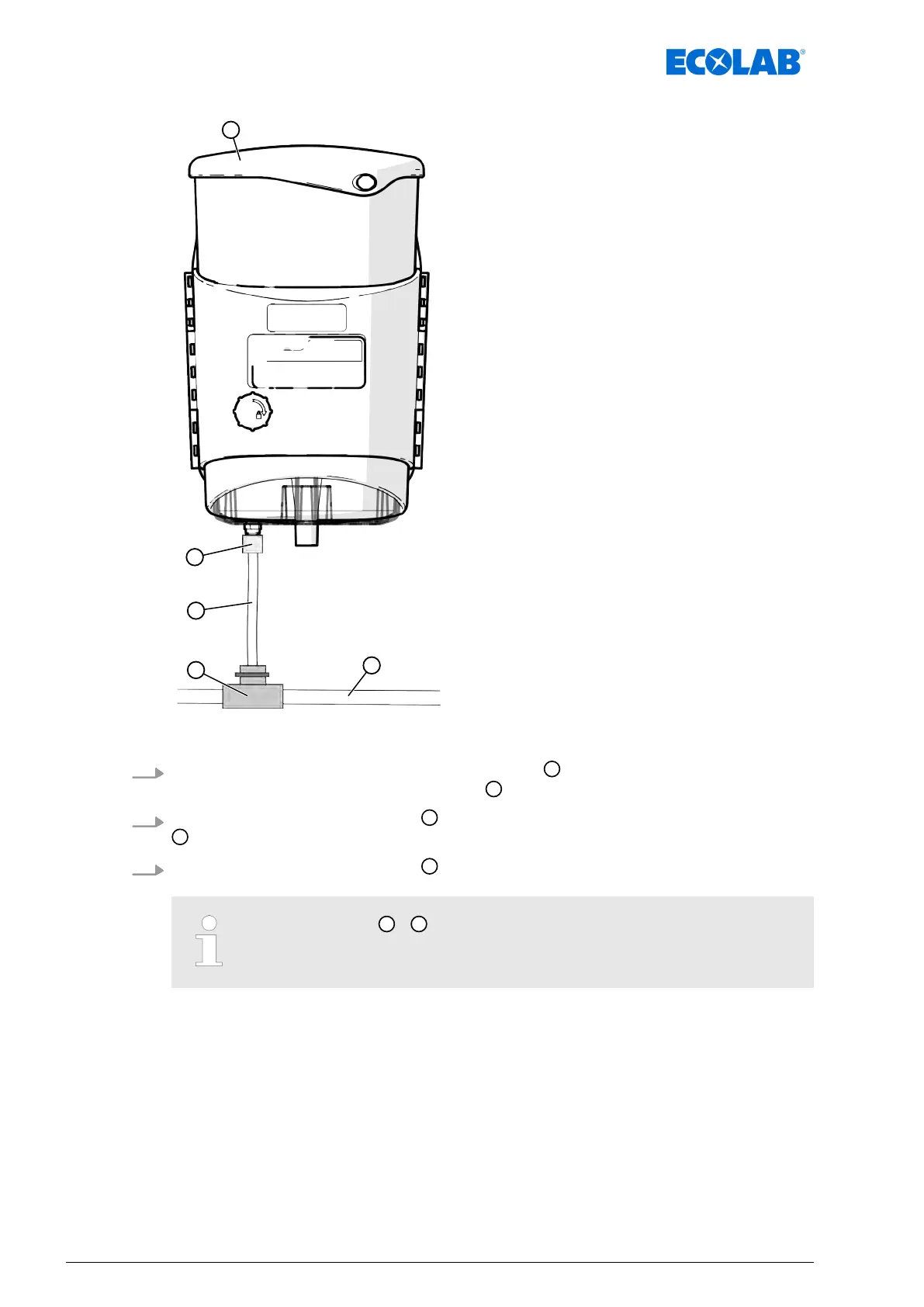

Fig. 4: RTU UK water connection
1
SMARTPOWER
TM
R
TU Dispenser
2
Adapter 3/8-thread x 3/8-inch tube
3
Water connection pipe
(plastic pipe with 3/8-inch outer diameter)
4
Shut-off valve T-piece 15mm x 15mm x 3/8-inch
pipe
5
Water supply line
1.
Connect an adapter of 3/8-thread x 3/8-inch pipe
2
to the water supply connection
of the SMAR
TPOWER
TM
RTU Dispenser
1
.
2.
Disconnect the water supply line
5
and install a compatible shut-off valve T-piece
4
.
3.
Guide the water connection pipe
3
to the SMARTPOWER
TM
R
TU Dispenser and
connect to the adapter.
The components
2
-
4
are not included with the unit and must be
sourced locally.
