C3A, C6A, C6A HDVideoColposcope User Manual Introduction
- 17 -

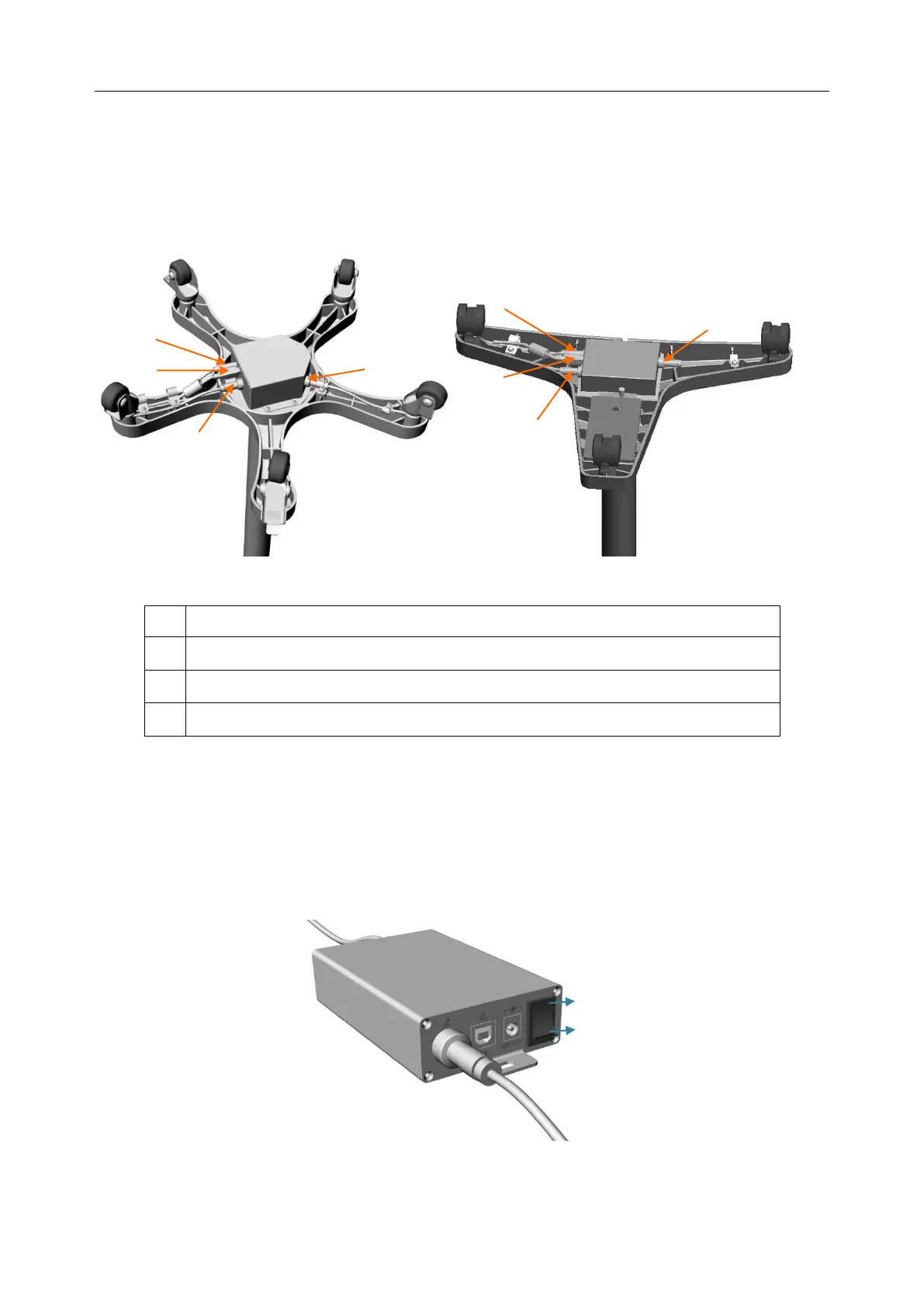

2.6 Fixed Video Capture Box
The fixed video capture box is only configured to C3A and C6A.
The fixed video capture box applies only to the vertical stand and is installed under the chassis of
the vertical stand. The following figure shows its appearance and external interfaces.
Figure 2-9 Fixed video capture box
1
DC port, used for connection with the power adapter
2
USB B interface, used for connection with the computer
3
3-pin aviation interface, used for connectionwiththefoot switch
4
4-pinaviation interface, used for connection with the monitor
2.7 Movable Video Capture Box
The movable video capture box applies to both the vertical stand and swing arm stand. It can be
installed on horizontal arm-2 of the swing arm stand or placed on the trolley or desk, etc.
C3A, C6A movable video capture box:
Figure 2-10 C3A, C6A movable video capture box
1
2
4
3
1
2
4
3
ON
OFF
