C3A, C6A, C6A HDVideoColposcope User ManualApplication of the Video Colposcope Software
- 47 -

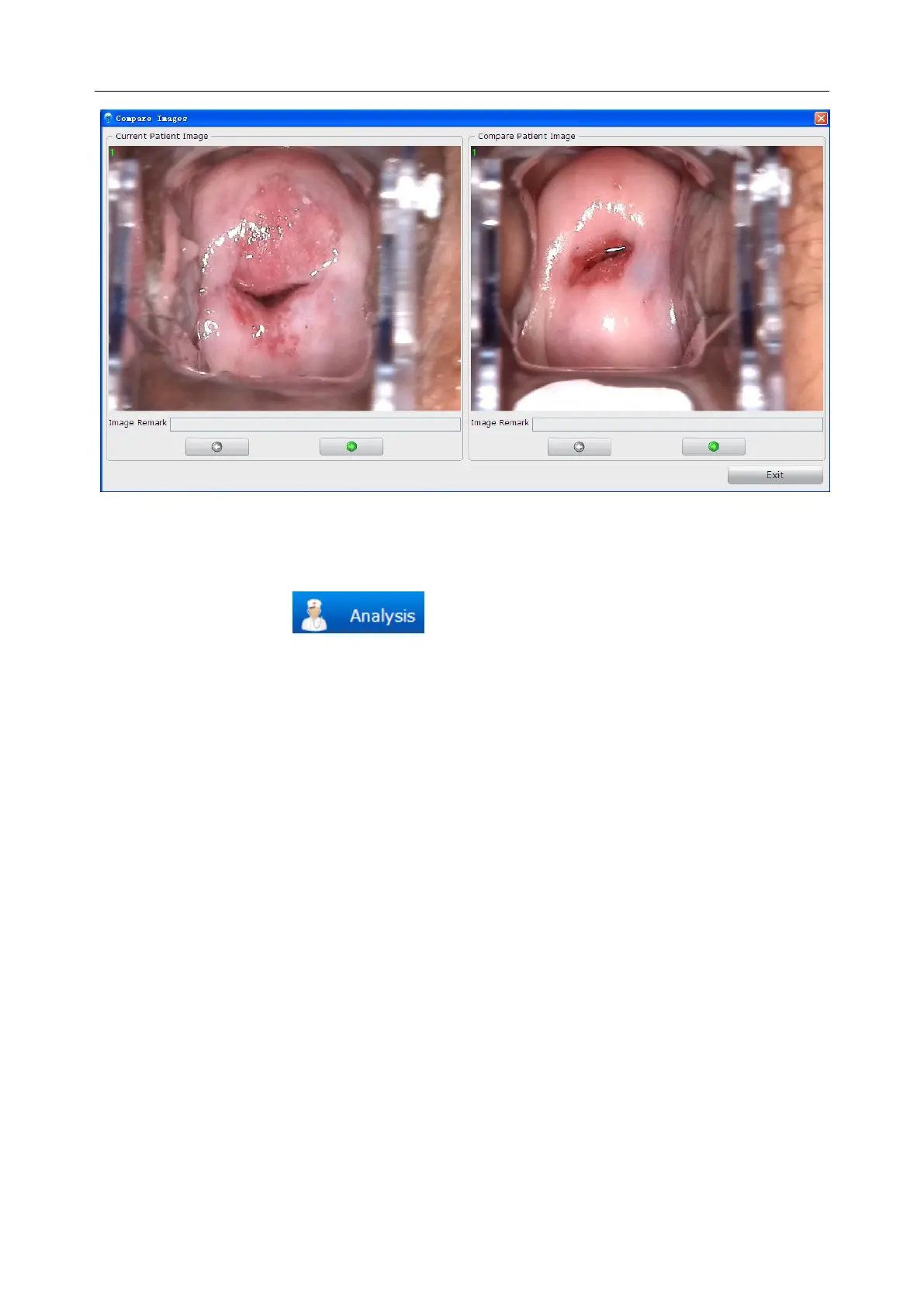

Figure 5-19
5.4.6 Analyzing
Click the Analysis tag to switch to the Analysis interface. For specific
operations on the Analysis interface, see section5.5Analyzing.
5.4.7 Comparing Images
Click the Compare button under the Current Patient Image area, the Current Patient Image
Comparison page is displayed. The system compares all images of the current patient. If there
are more than 6 images, the first 6 images are compared. For operations on this page, see section
5.5.1Comparing Images of the Current Patient.
5.4.8 Editing an Image
Right-click an image in the Current Patient ImageareaandchooseImage Processing.TheImage
Processing page is displayed. You can edit the image on the Image Editing tab.
1) Adding Image Remark
In the Image Remark area, input remark for the image, then click Save to save the remark. A
maximum of 50 characters (excluding "&") can be inputted. This remark will be shown together
with the image.
2) Adding Image Notes
You can add notes on the image as follows: In the Image Note area, click Note. Then move the
cursor to the image area and click on it. A broken line frame is shown, and you can type note in it.
You can move the cursor to other positions to add more notes. After all notes are added, click
To Next Page
