C3A, C6A, C6A HDVideoColposcope User ManualApplication of the Video Colposcope Software
- 44 -
only effective to the current operation. After the restart of the software, the setup will resume to
the setup in Setup, see section 5.12.2.16Enabling Auto Capture), and the tag turns to
. After you press the "TIME" key of the camera, the system will
automatically capture one image at specific time points. To disable the auto capture function,
click Auto Capture again.
If the function of providing examination prompts is enabled (see section 5.12.2.15Enabling
Examination Prompts), the system will show prompts after you press the "TIME" key of the
camera. Perform operations according to the prompts.

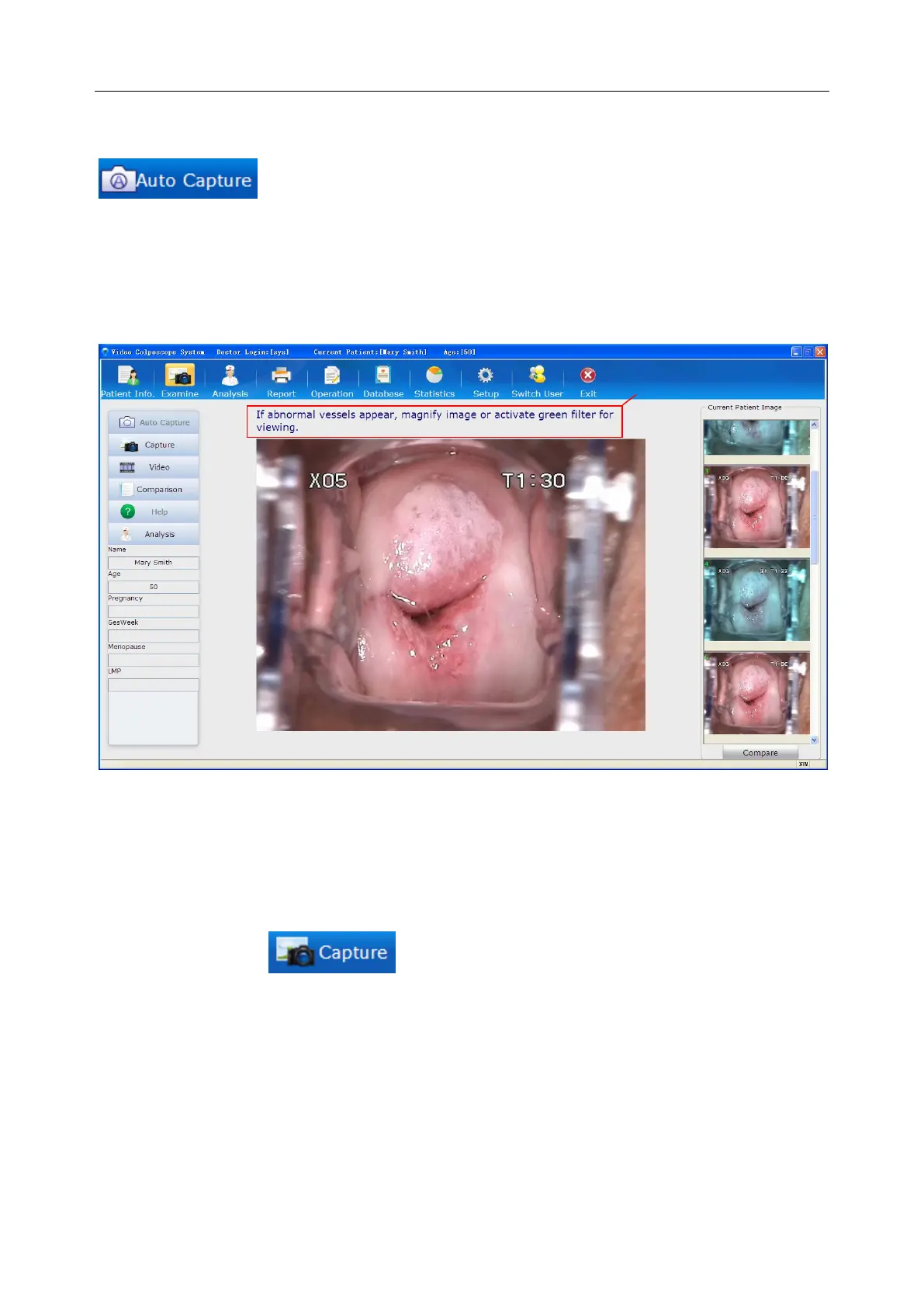

Figure 5-16
NOTE:
After you press the "TIME" key, the Auto CaptureandHelptags become unavailable.
They are available again after you press the "TIME" keyagain or the current timer ends.
Click the Capturetag , the system captures the current image. The captured
image is shown on the right of the screen. A maximum of 50 images can be captured for a
patient.You can double-click an image to magnify it. You can click an image to select it, then
right-click it and choose Delete to delete it. You can select multiple images and delete them at the
same time.
If the foot switch is connected, you can step on it to capture or freeze and capture the current
image, depending on the setting.
By default, the camera handle trigger is used to control coordinate display. Pull this trigger, the
screen displays a coordinate, as shown in the figure below.
