DUS 60 Digital Ultrasonic Diagnostic Imaging System User Manual Operation
- 80 -

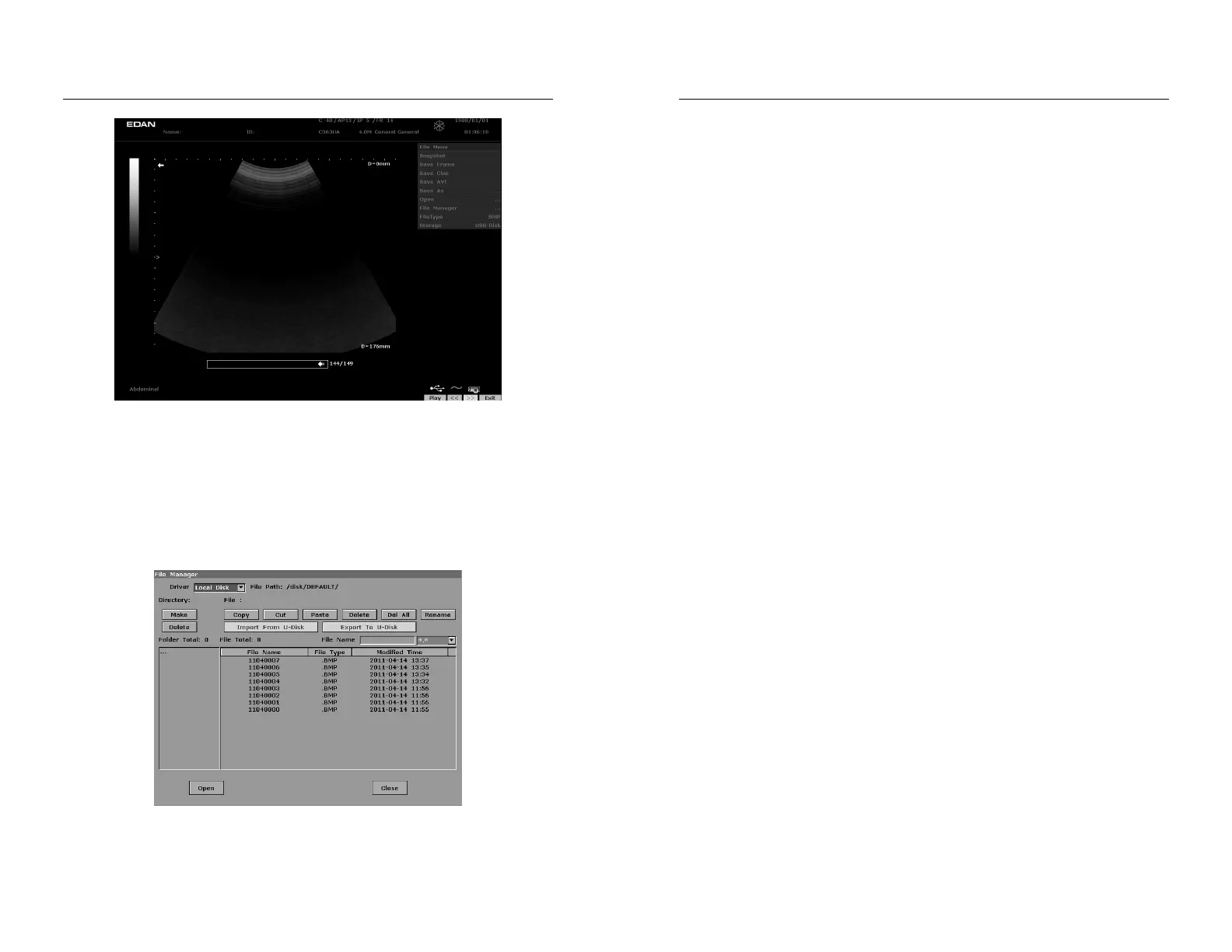

Figure 6-26 Image Browsing Dialog Box
NOTE:
The JPG, BMP, and DCM (if DICOM is installed) images are available to the browsing
function.
6.8.4. File Manager
The file manager dialog box is shown as below.
Figure 6-27 File Manager Dialog Box
DUS 60 Digital Ultrasonic Diagnostic Imaging System User Manual Operation
- 81 -
You can use the file manager to perform the file management. After you open an image, you can
perform the image viewing as shown in section 6.8.3.
NOTE:
1. When you are copying & pasting a file, cutting & pasting a file, importing a file or
exporting a file, do not connect or disconnect the U disk.
2. USB disk must be in FAT32 format.
3. Do not use the U disk for other uses, but only for this device. Otherwise the storage
and the transmission function may not be stable.
4. We suggest that you use the Netac U disk: Netac U180 (2G).
To create a file folder
1. Roll the trackball to select the driver and then press Set.
2. Press Make and a dialog box pops up. Enter the file folder name.
3. Press Confirm to create a file folder, or Cancel to give up the creating operation.
To delete a file folder
1. Roll the trackball to select the driver and then press Set.
2. Roll the trackball to select the file folder to be deleted, and then press Set.
3. Press Delete, and a confirmation dialog box is displayed to ask you whether to delete the file
folder.
4. Press Ye s to delete the designated file folder, or No to give up the deleting operation
To copy & paste a file:
1. Roll the trackball to select the source driver and the type of file, and then press Set.
2. Roll the trackball to highlight the source file, and press Set, and then press Copy.
3. Roll the trackball to select the destination driver and press Set.
4. Press Paste.
To cut & paste a file:
1. Roll the trackball to select the driver and the type of file, and then press Set.
2. Roll the trackball to highlight the file that will be cut, and press Set, and then press Cut.
3. Roll the trackball to select the destination driver and press Set.
4. Press Paste.
To delete a file:
1. Roll the trackball to select the driver and the type of file, and then press Set.
2. Roll the trackball and then press Set to select the file you want to delete.
3. Press Delete, and a confirmation dialog box is displayed to ask you whether to delete the file.
4. Press Ye s to delete the designated file, or No to give up the deleting operation.
