Chapter 10 Small Parts Measurements and Calculations
10.1. Measurements and Calculations
The small parts examination is usually in the B mode.
1. Press Exam and select Small Parts, and then press Set.
2. Press to enter the B mode.
3. Press Measure to activate the measurement function. The measurement menu will be
displayed. The default measurement is distance measurement.

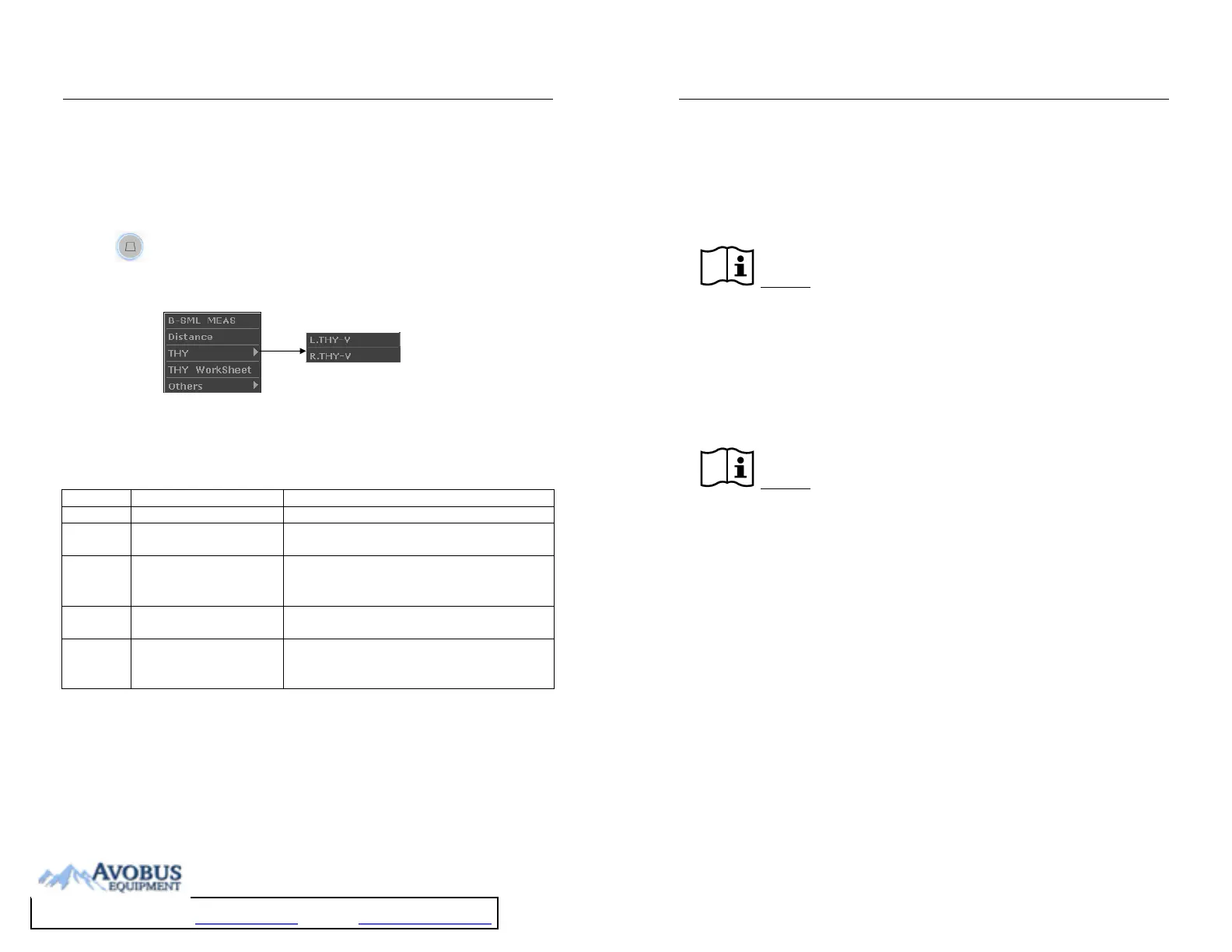

Figure 10-1 Small Parts Measurement and Calculation Menu
To determine the right thyroid gland volume or left thyroid gland volume, take three
measurements: length, width, and height. The system calculates the volume.
The measurement items of small parts of B mode are as follows.
Label Description Method
THY Thyroid Gland /
L. THY-V Left Thyroid Gland Volume
L. THY-V (mm
3
) = 0.497 × L. THY-L (mm) × L. THY-W
(mm) × L. THY-H (mm)
L. THY-L
L. THY-W
L. THY-H
Left Thyroid Gland Length
Left Thyroid Gland Width
Left Thyroid Gland Height
Distance (mm)
R. THY-V Right Thyroid Gland Volume
R. THY-V (mm
3
) = 0.497 x R. THY-L (mm) × R. THY-W
(mm) × R. THY-H (mm)
R. THY-L
R. THY-W
R. THY-H
Right Thyroid Gland Length
Right Thyroid Gland Width
Right Thyroid Gland Height
Distance (mm)
Table 10-1 Small Parts Measurement and Calculation Items
DUS 60 Digital Ultrasonic Diagnostic Imaging System User Manual Small Parts Measurements and Calculations
- 125 -
The measurements of THY include L.THY-V and R.THY-V.
To measure L.THY-V:
1. In the small parts measurement menu, roll the trackball to highlight THY-V, and then
highlight the secondary menu L.THY-V, press Set.
2. Measure three pieces of data: L.THY-L, L.THY-W and L.THY-H, in the method of distance
measurement.
Reference Section 6.6.3, Generic Measurements in PW Mode
3. After the three measurements, the result of L.THY-V will be displayed in the measurement
result window.
To measure R. THY-V:
1. In the small parts measurement menu, roll the trackball to highlight THY-V, and then
highlight the secondary menu R.THY-V, press Set.
2. Measure three pieces of data: R.THY-L, R.THY-W and R.THY-H, in the method of distance
measurement.
Reference Section 6.6.3, Generic Measurements in PW Mode
3. After the three measurements, the result of R.THY-V will be displayed in the measurement
result window.
10.2. Small Parts Report
After the small parts examination, the system generates a THY worksheet.
Roll the trackball to highlight THY Worksheet, and press Set display Small Parts Worksheet
dialog box, as shown below:
