Edwards APG200 User Manual

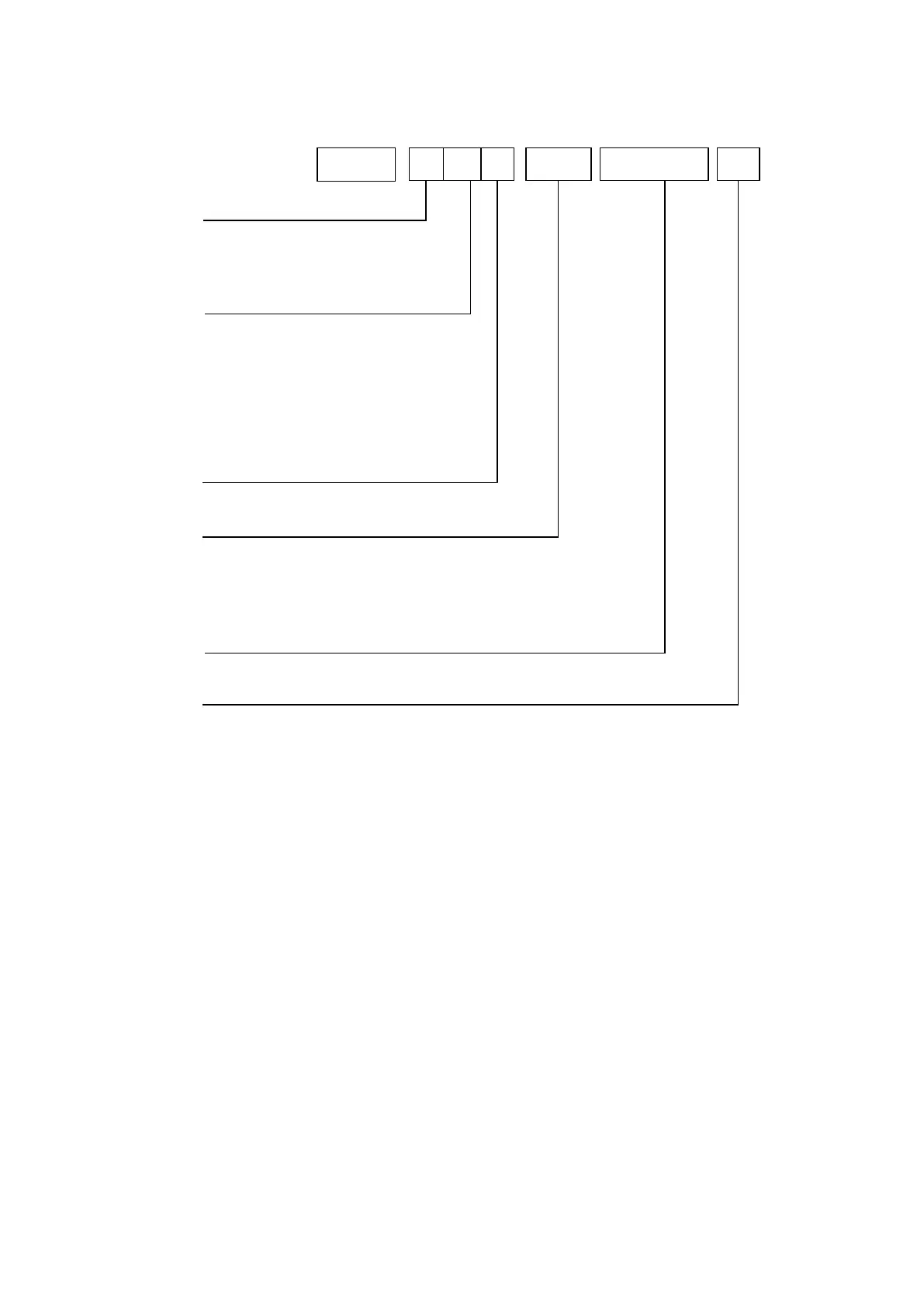

Figure 2 Item descripon matrix
APG200 X LC S
Filament/pressure range
Voltage output
1x10 or 5x10 mbar to 1000 mbar
M : Standard filament
-3
-4
-3 -4
-4
-4
LC : Corrosion resistant filament
1x10 or 5x10 mbar to 1000 mbar
MP : Corrosion resistant filament
Setpoint
[Blank] : Transistor setpoint
S : 2 solid state relay setpoint
X : 2.0 V to 9.0 V log linear with pressure
Other
[Blank] : No additional features
CAL : supplied with calibration certificate
O : 2.2 V to 8.5 V log linear with pressure
G : 1.9 V to 10.0 V log linear with pressure
Q : 1.875 V to 8.875 V log linear with pressure
[Blank] : 2.0 to 10.0 V non linear with pressure
Connector
[Blank] : RI45 connector
9 pin DSUB : 9 pin D - subminiature (male)
Flange
NW16 : NW16 flange
NW25 : NW25 flange
1/8” NPT : 1/8” NPT (male)
4VCR : Swagelok 4VCR fitting (female)
8VCR : Swagelok 8VCR fitting (female)
Bare tube : 1/2” OD tube
DN16CF : DN16 conflat flange
NW25
9 PIN DSUB CAL
1x10 or 5x10 mbar to 1000 mbar
(model dependent)
(model dependent)
(model dependent)
The complete range of available opons can be f
ound in the Item number and
descripon matrix on page 9.
07/2021 - ©Edwards Limited
Page 10D1G0000880_A
D1G0000880_A - Intr
oducon
