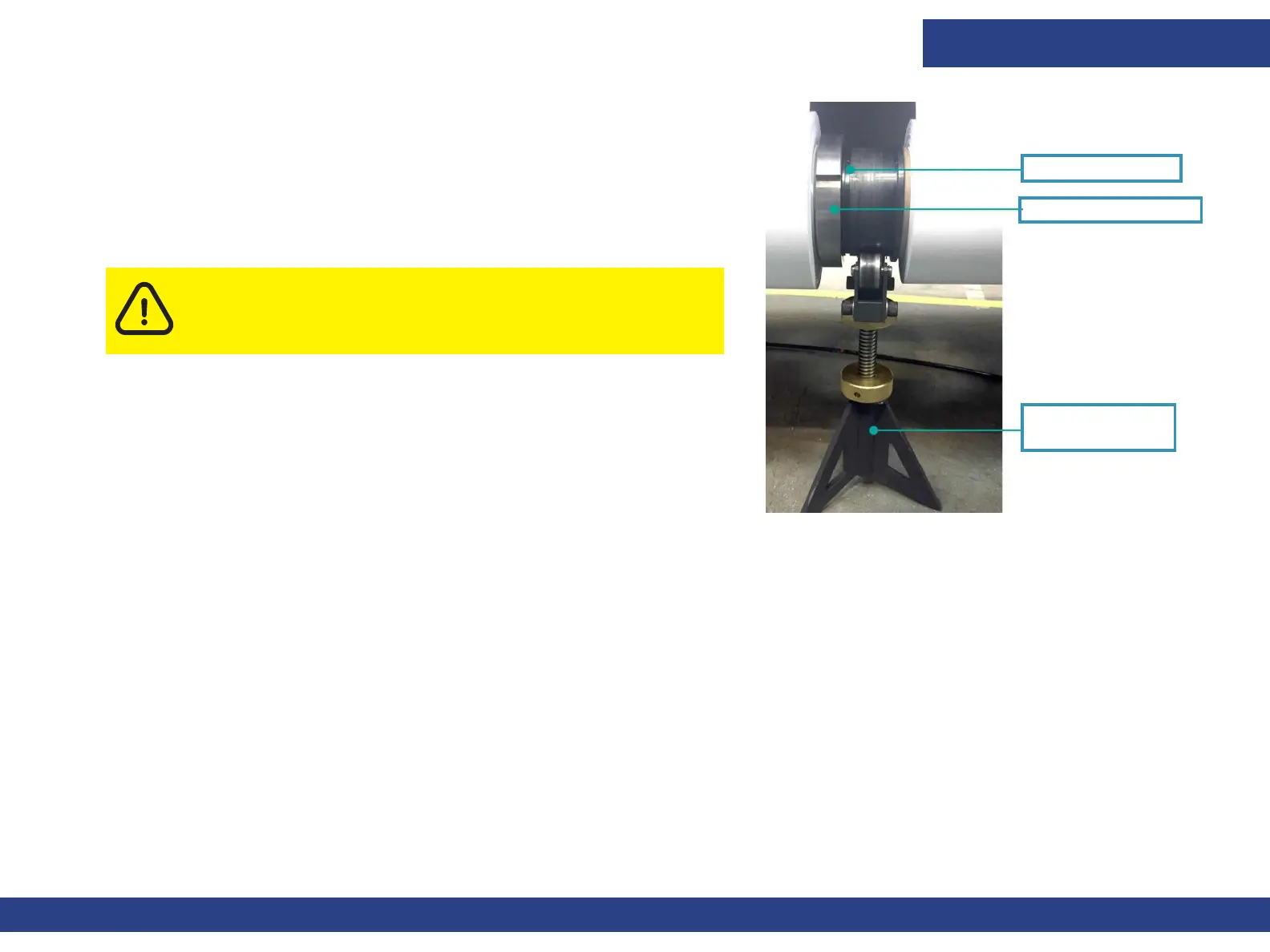

Figure 6-36
Air Shaft Race
Media Roll Collar
Center Support
Stand
Printer Operations
Document ID: OMM-00165 Rev. C Pro 32r Operations Guide 131
6. Center the media rolls and collars between the air shaft race and the
ends of the unwind and rewind shafts.
7. Secure media rolls with media roll collars by tightening each collar.
NOTE: Do NOT inflate air core for the rewinding shaft.
Caution: The fully loaded Unwind Shaft (Air Core) is
extremely heavy. Care and safe lifting
procedures should be observed or serious
injury can result.
