Double-sided Printing
Document ID: OMM-00165 Rev. C Pro 32r Operations Guide 145
7.1.1 Y Gap before Image
The distance between the first printed Backlit registration marks and the image, along the Y-axis. The value is usually set
to 600 mm, so the initial correction is done before the image starts to print.

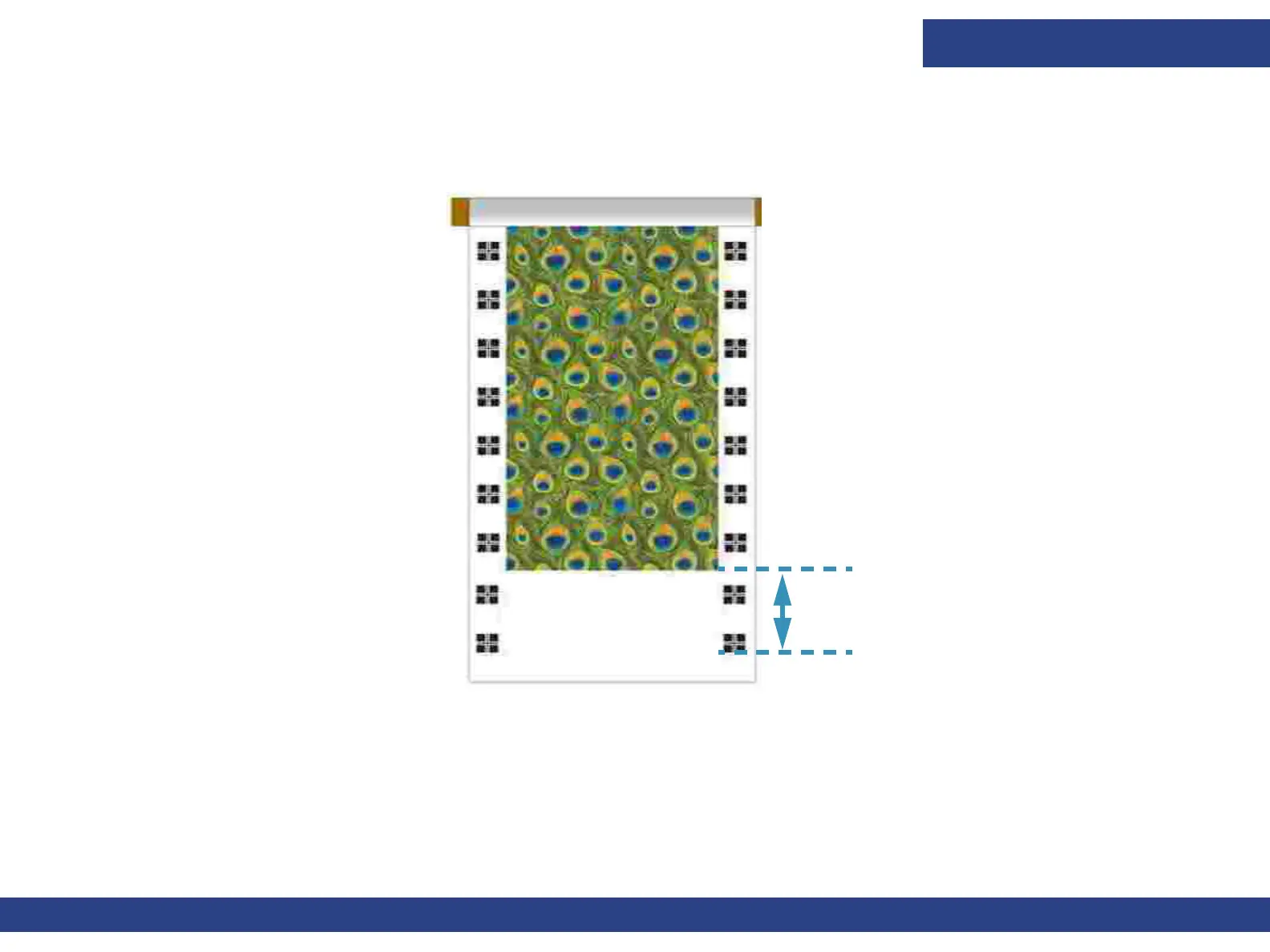

Figure 7-4
Y Gap Before Image
