Document ID: OMM-00165 Rev. C Pro 32r Operations Guide 146

7.1.2 X Gap from Image

The distance between the printed backlit registration marks and the image along the X-axis. This value depends on the

image and the media width. It is recommended to leave a 15 mm gap between the image and the marks.

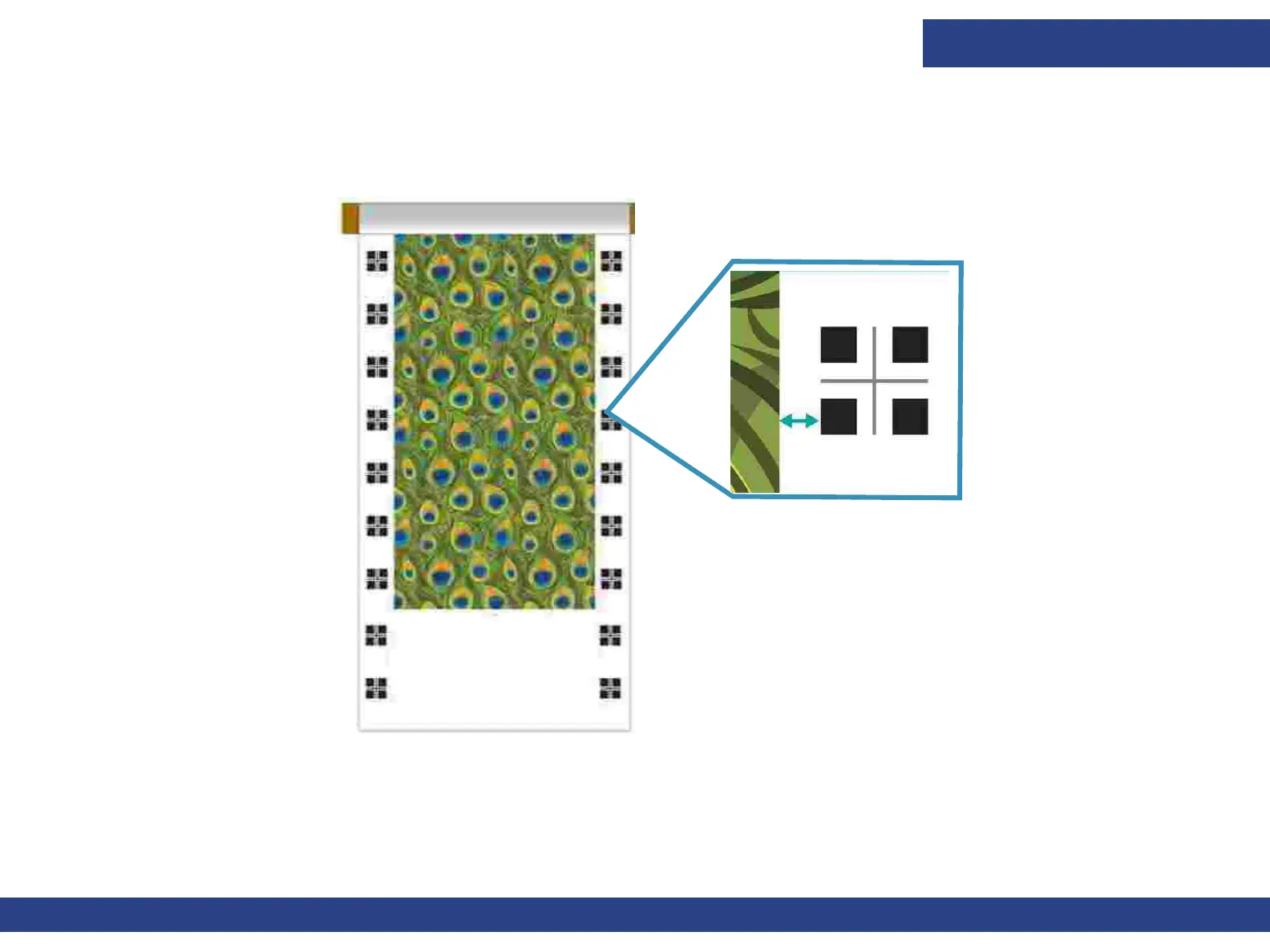

Figure 7-5

X Gap from Image
