EG4 GRIDBOSS - Page 15

13

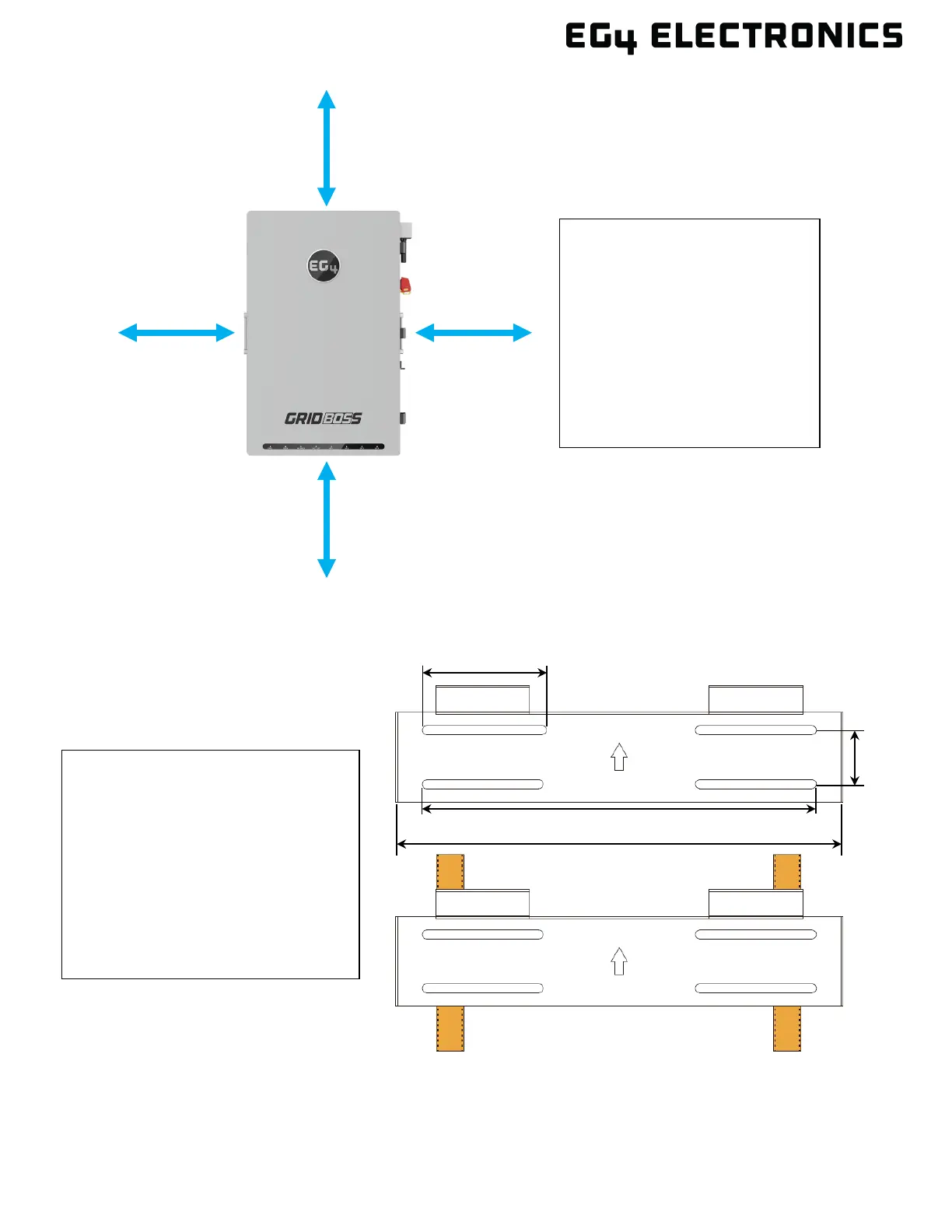

The GridBOSS is designed to be
wall mounted using the included
wall mount bracket.
It should be installed vertically on a
solid, non-combustible surface such
as brick or concrete.
The mounting bracket's slots can
accommodate stud spacings from
12 in. (305 mm) to 16 in. (406 mm).
4 in. (100 mm)
4 in. (100 mm)
4 in. (100 mm)
0 in. (0 mm)
Be sure to maintain the
spacing requirements shown in
the image to allow access to
fully open the door and to view
the dongle LEDs.
Ensure there is adequate
space in front of the unit to
allow for working space and
clearance for the front cover to
swing open.
2 3/8 in.
(60 mm)
5 3/16 in. (135 mm)
18 1/8 in. (460 mm)
17 5/16 in. (440 mm)
