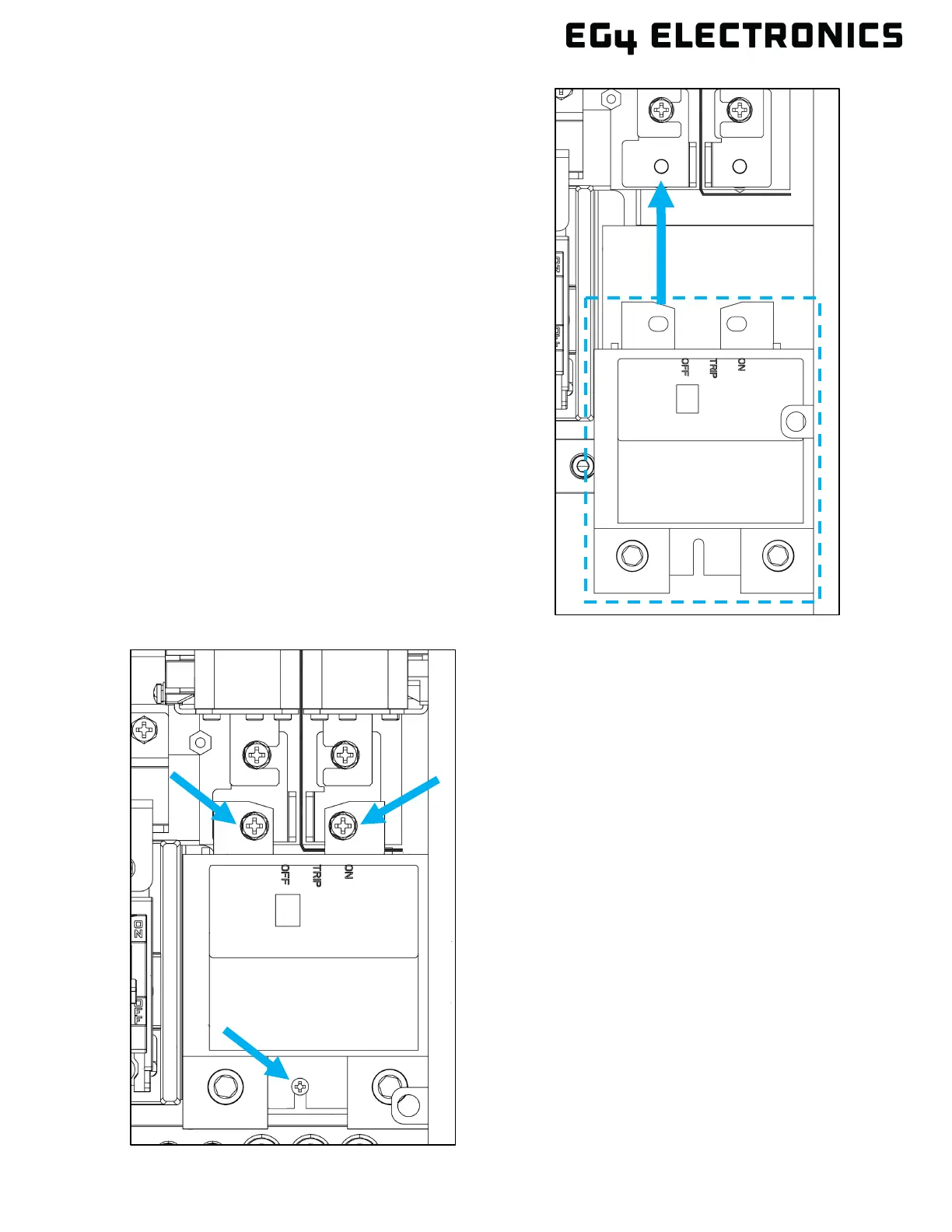

5. Install the 200A Eaton CSR2200N (CSR25K)
breaker by sliding it into place, aligning the
bolt holes in the breaker lugs to the holes on
the busbar.
6. Using a 10 mm socket, install the two M6
screws in the busbar, then install the M4
screw that holds the opposite end of the
breaker in place.
Tighten the M6 screws to 80 in-lbs. (9Nm)
and the M4 screw to 10 in-lbs. (1.2Nm).
When installing the conductors to the main
breaker terminals, use a 1/4-inch hex wrench
and torque to 250 in-lbs. (28Nm).
7. Install the orange inner cover plate removed
in step 2.
