EG4 LuxPowerTek 6000XP User Manual

7
4. INSTALLATION

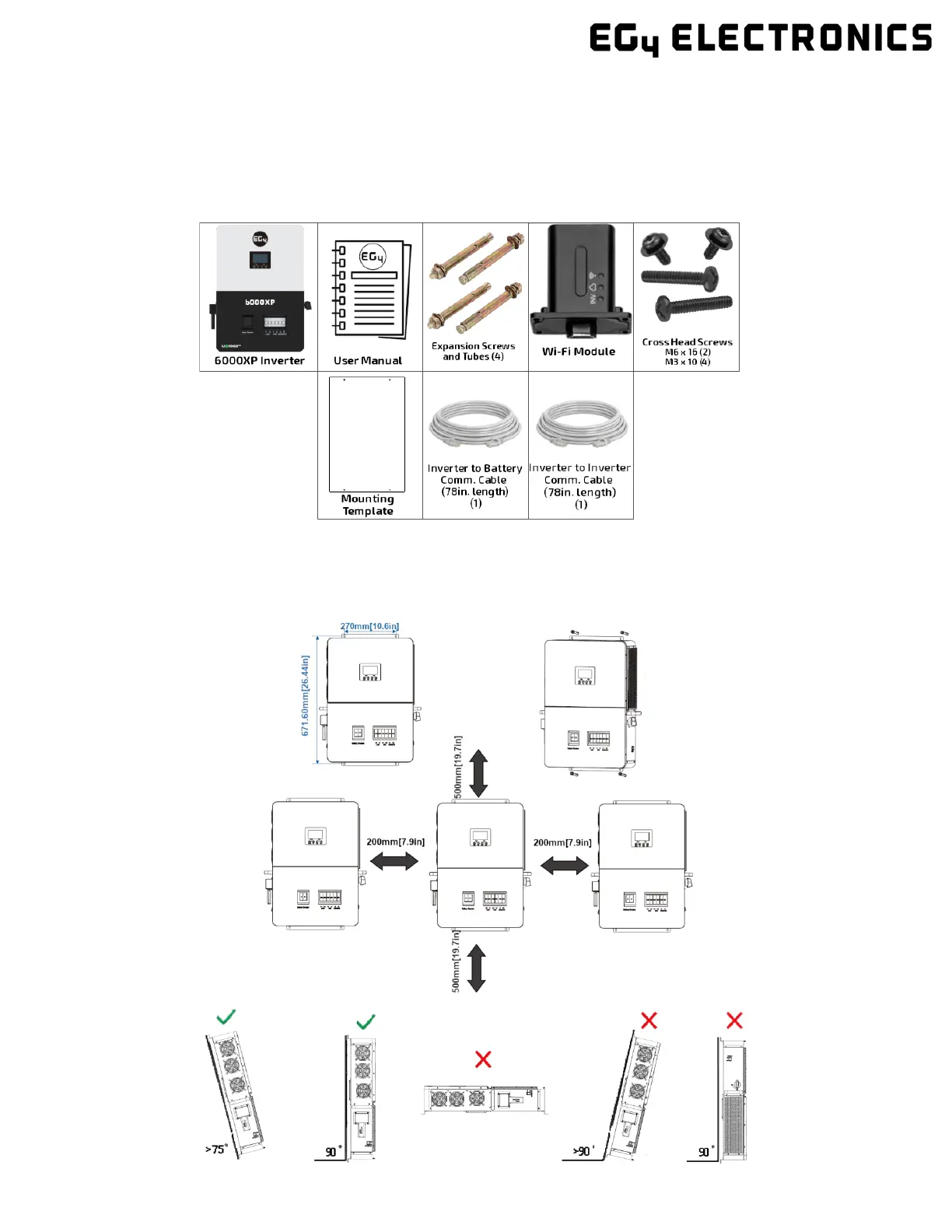

4.1 PACKING LIST
When the product is unpacked, the contents should match those listed below:
Pictures are for reference only, subject to our available products.
4.2 LOCATION SELECTION AND INSTALLATION
4.2.1 REQUIREMENTS FOR INSTALLATION LOCATION
1. The mounting wall should be strong enough to bear the weight of the inverter.
2. Please maintain the minimum clearances presented below for adequate heat dissipation.
3. The inverter should be installed upright on a vertical surface.

EG4 LuxPowerTek 6000XP Specifications

General

Category	Inverter
Rated Power	6000W
Max DC Input Power	7800W
Number of MPPT Trackers	2
Battery Voltage	48V
Max Charge/Discharge Current	120A
Protection Degree	IP65
Frequency	50/60Hz
Model	LuxPowerTek 6000XP
Communication	RS485
Operating Temperature Range	-25°C to 60°C
Protection Features	Over Voltage Protection, Over Temperature Protection
Cooling	Fan
